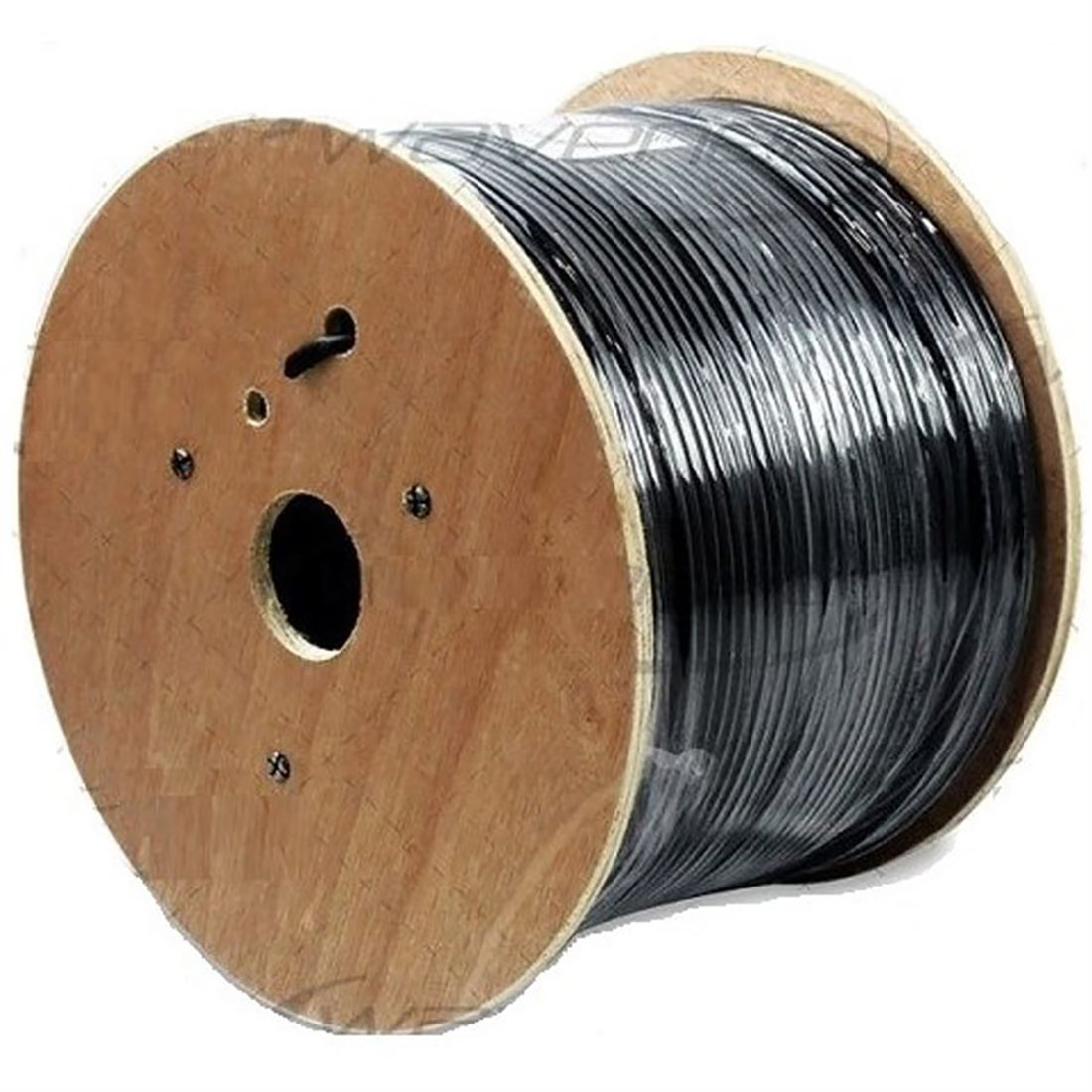

Wavenet Cat 6A UV Jacket SOLID BC 10GB 1,000' REEL(black)

Wavenet Cat 6A UV Jacket SOLID BC 10GB 1,000' REEL(black)
MSRP: $599.00
Manufacturer: Wavenet
SKU: 6A04CMXBK2
Related Products
Picture of Ethereal 8-Pin Cat 6 RJ45 Crimp Connector (50 pk)

Ethereal 8-Pin Cat 6 RJ45 Crimp Connector (50 pk)

C6T
Ethereal 8-Pin Cat 6 RJ45 Crimp Connector (50 pk)
MSRP: $46.99
Picture of Ethereal Dual Modular Crimping Tool

Ethereal Dual Modular Crimping Tool

CS-CRIMPTOOL
Ethereal Dual Modular Crimping Tool
MSRP: $42.99
Features
  • ETL Listed
  • ANSI/TIA-568-C.2
  • RoHS Compliant
  • ATM 155 Mbps
  • 100 Mbps TP-PMD
  • ISDN, ADSL
  • ATM LAN 1.2G
  • Horizontal Distribution and Backbone Cabling

Specs

Physical Characteristics
Conductor MaterialSolid Bare Copper
Number of Conductor Pairs4
Size23 AWG
StrandingSolid Bare Copper
Insulation MaterialHDPE
Overall Diameter0.316”
Jacket MaterialUV PVC
Average Thickness0.24 mm
Min. Point Thickness0.22 mm
Nominal Weight48 lbs
ColorBlack



Mechanical Characteristics
Tensile Strength (before)>=13.8 Mpa
Elongation (aging)>=100%
Aging Condition (after)>=85% of unaged
Aging Condition (aging)>=50% of unaged



Electrical Characteristics
1.0-250.0MHz Delay Skew<=45 (ns/100m)
Pair to Ground Capacitance Unbalance<=330 Max. Conductor (pF/11m)



Dimensions

Cable Length1000 FT (Spool)



Features
  • ETL Listed
  • ANSI/TIA-568-C.2
  • RoHS Compliant
  • ATM 155 Mbps
  • 100 Mbps TP-PMD
  • ISDN, ADSL
  • ATM LAN 1.2G
  • Horizontal Distribution and Backbone Cabling

}
