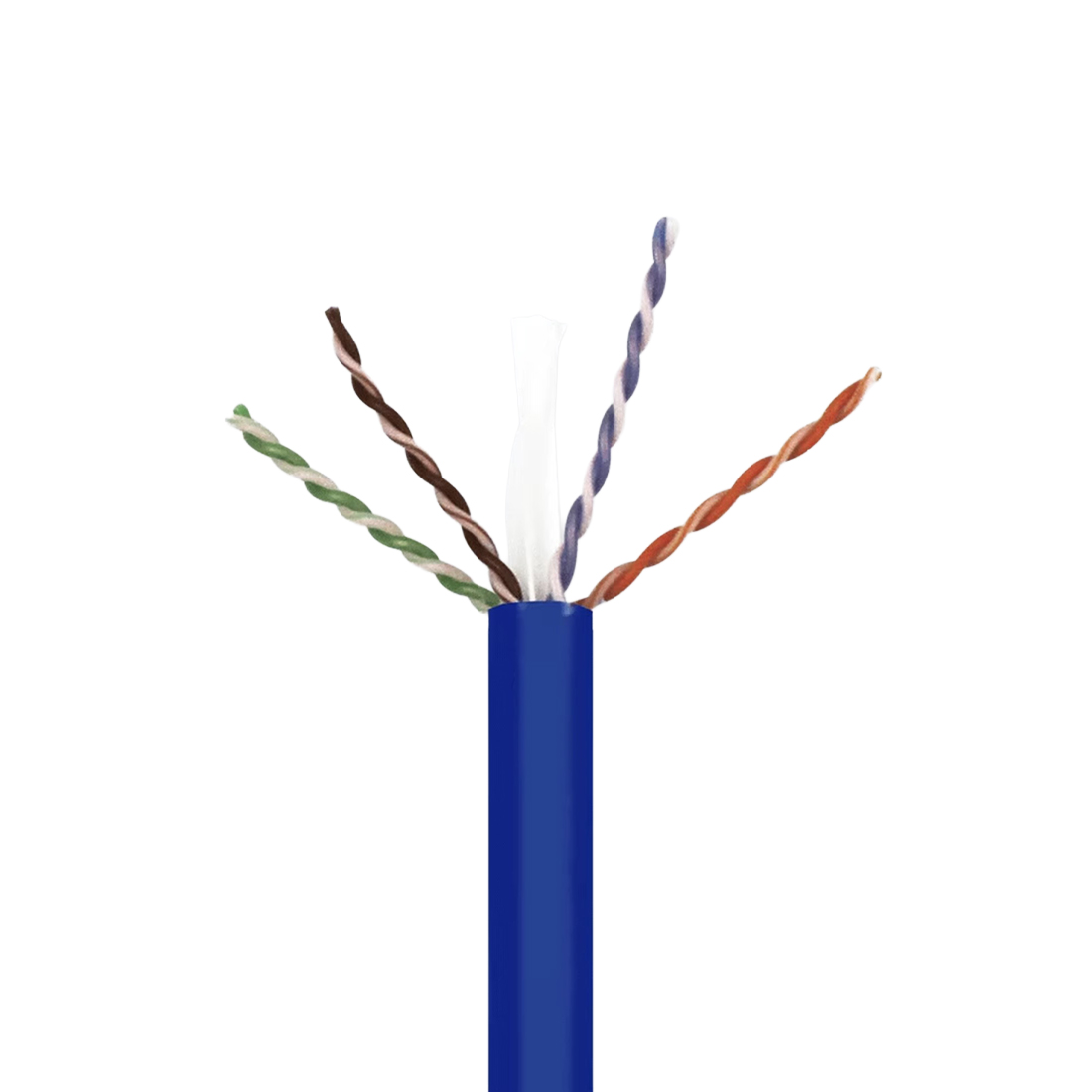

Wavenet Cat 6A PVC Solid Shielded 10GB 1,000' Reel in Box (blue)

Wavenet 6A04FRBL3 is a CAT6A 10G shielded riser cable designed for high speed network installations in commercial and residential buildings.
MSRP: $499.00
Manufacturer: Wavenet
SKU: 6A04FRBL3-ETL

Features

  • Ideal for 10GbE horizontal distribution & backbone cabling
  • Spline (pair separator) helps reduce Alien Crosstalk (AXT)
  • 23 AWG Solid bare copper conductors
  • 4 Unshielded/Shielded Twisted Pairs
  • Shielded Enhances RFI and EMI protections
  • Sequential footage marking
  • Performance up to 750MHz
  • Standards
    • c(ETL) Listed, FT4 CMR / FT6 CMP
    • c(ETL) US Verified ANSI/TIA-568-C.2
    • RoHS Compliant

Specs

Physical Characteristics

  • Color: Blue
  • Conductor Material: Solid Bare Copper
  • Number of Conductor Pairs: 4
  • Size: 23 AWG
  • Shield Material: Aluminum Tape
  • Insulation Material: HDPE
  • Nominal Weight: 38 lbs.
  • Ripcord: Yes

Mechanical Characteristics

  • Temperature Rating (installation): 0ºC to + 60ºC
  • Temperature Rating (operating): -20ºC to + 80ºC
  • Tensile Strength (before): >=13.8 Mpa
  • Elongation (aging): >=100%
  • Aging Condition (after): >=85% of unaged
  • Aging Condition (aging): >=50% of unaged
Product Files
SPEC SHEETS

Features

  • Ideal for 10GbE horizontal distribution & backbone cabling
  • Spline (pair separator) helps reduce Alien Crosstalk (AXT)
  • 23 AWG Solid bare copper conductors
  • 4 Unshielded/Shielded Twisted Pairs
  • Shielded Enhances RFI and EMI protections
  • Sequential footage marking
  • Performance up to 750MHz
  • Standards
    • c(ETL) Listed, FT4 CMR / FT6 CMP
    • c(ETL) US Verified ANSI/TIA-568-C.2
    • RoHS Compliant
