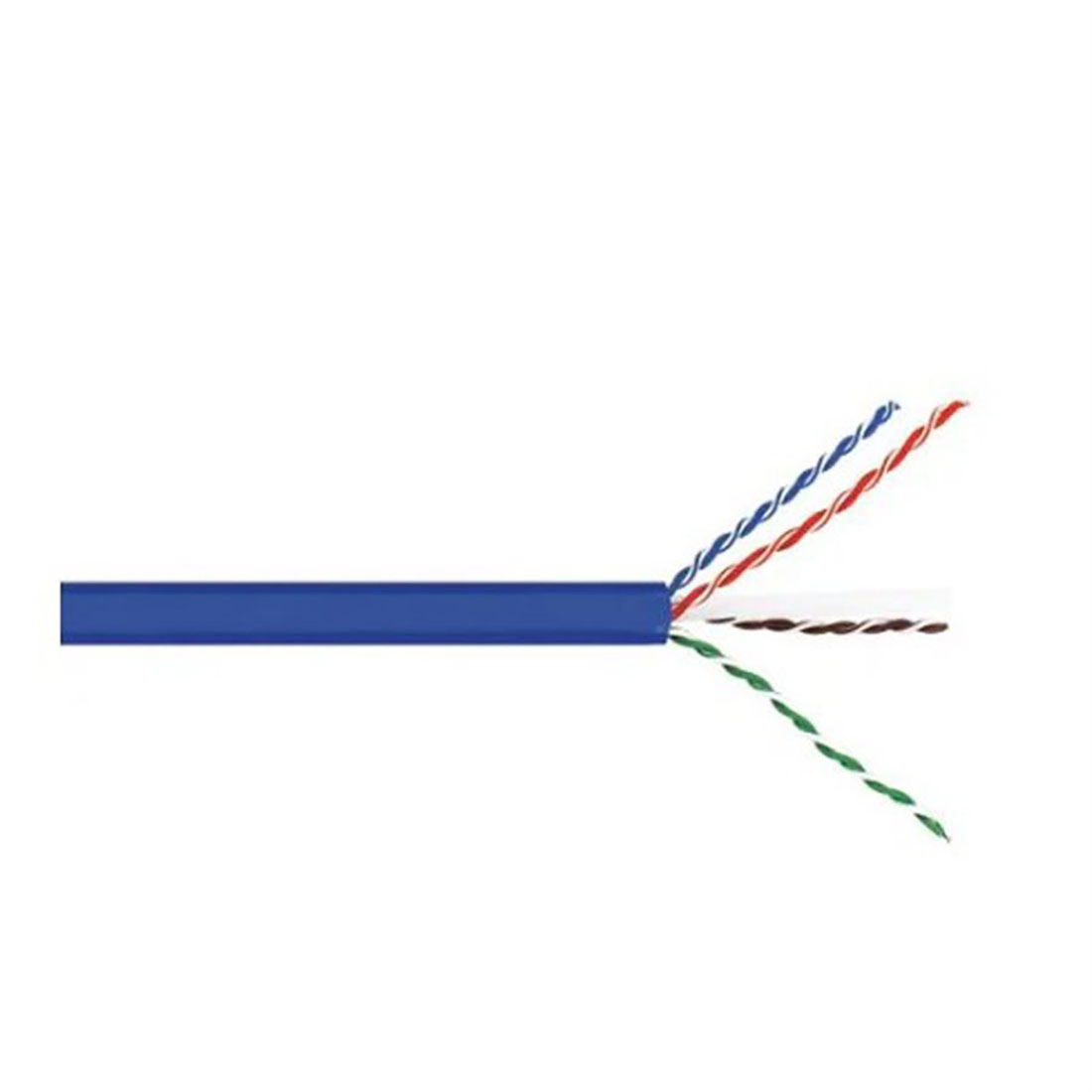

Wavenet Cat 6A Plenum SOLID 10GB 1,000' REEL(blue)

Wavenet Cat 6A Plenum SOLID 10GB 1,000' REEL(blue)
MSRP: $922.00
Manufacturer: Wavenet
SKU: 6A04FPBL2
Related Products
Picture of Ethereal 8-Pin Cat 6 RJ45 Crimp Connector (50 pk)

Ethereal 8-Pin Cat 6 RJ45 Crimp Connector (50 pk)

C6T
Ethereal 8-Pin Cat 6 RJ45 Crimp Connector (50 pk)
MSRP: $46.99
Picture of Ethereal Dual Modular Crimping Tool

Ethereal Dual Modular Crimping Tool

CS-CRIMPTOOL
Ethereal Dual Modular Crimping Tool
MSRP: $42.99
Features
  • ETL Listed Type CMP
  • C(ETL) listed FT6
  • ANSI/TIA-568-C.2
  • ISO/IEC 11801
  • RoHS Compliant
  • ATM 155 Mbps
  • 10/100/1000/10G Base-T (IEEE 802.3)
  • 4/16 Mbps Token Ring (IEEE 802.5)
  • 100 Mbps TP-PMD
  • ISDN, ADSL
  • ATM LAN 1.2G
  • Horizontal Distribution and Backbone Cabling

Specs

 Physical Characteristics

Conductor MaterialSolid Bare Copper
Number of Conductor Pairs4
Size23 AWG
Shield MaterialAluminum Tape
Insulation MaterialFEP
Overall Diameter0.041”
Jacket MaterialPlenum Rated PVC
Jacket Diameter0.3153”
Spacer Thickness0.0393”
Outer Sheath Thickness0.0177”
Nominal Weight53 lbs
ColorBlue



Mechanical Characteristics
Temperature Rating (Installation)0º C to + 60º C
Temperature Rating (Operating)-20º C to + 80º C
Tensile Strength (before)>=13.8 Mpa
Elongation (aging)>=100%
Aging Condition (after)>=85% of unaged
Aging Condition (aging)>=50% of unaged



Electrical Characteristics

Maximum Conductor DC Resistance @ 20º C100 meters
Maximum Pair to Pair Ground Capacitance Unbalance100 meters
Mutual Capacitance100 meters
Maximum Delay Skew100 meters



Dimensions

Cable Length1000FT (Reel)



Features
  • ETL Listed Type CMP
  • C(ETL) listed FT6
  • ANSI/TIA-568-C.2
  • ISO/IEC 11801
  • RoHS Compliant
  • ATM 155 Mbps
  • 10/100/1000/10G Base-T (IEEE 802.3)
  • 4/16 Mbps Token Ring (IEEE 802.5)
  • 100 Mbps TP-PMD
  • ISDN, ADSL
  • ATM LAN 1.2G
  • Horizontal Distribution and Backbone Cabling
