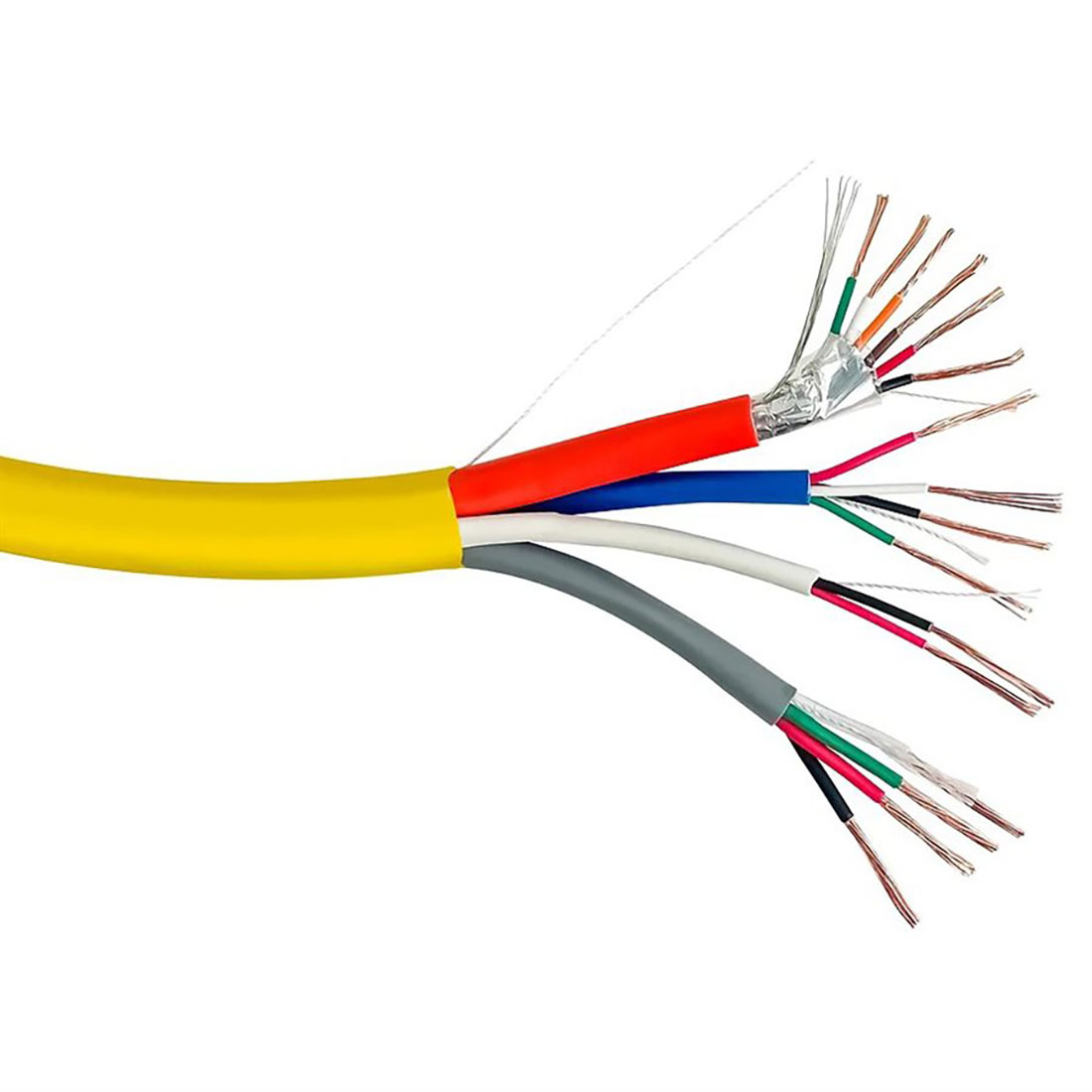

Wavenet Access Control PLENUM CMP 1,000'(reel)(yellow)

Wavenet Access Control PLENUM CMP 1,000'(reel)(yellow)
MSRP: $1360.00
Manufacturer: Wavenet
SKU: CCACESSUPYL2
Features
  • Access Control, Power Lock, Card Reader, Door Contact and Rex/Spare (request to exit)
  • UL 444, UL13, CMP

Specs

Conductor Material (A)Card Reader Orange / Stranded Bare Copper
AWG6C x 22AWG
Conductor Diameter (±0.005mm)7/0.24
Insulation MaterialLow smoke FR PVC
Average Thickness0.200 (mm)
Min. Point Thickness0.170 (mm)
Insulation Diameter (±0.05mm)1.15
Twisted Pair Diameter (+/0.02mm)2.3
AL-FOILOverlapping >25%
Drain Wire7 x 0.18 tinned copper
PE-TapeOverlapping >25%
Inner JacketLow smoke FR PVC
Orange (mm)OD5.10 +/ 0.10
Insulation ColorsWhite / Green, Red / Black, Orange / Brown
Conductor Material (B)Lock Power Gray / Stranded Bare Copper
AWG4C x 18AWG
Conductor Diameter (±0.008mm)7/0.38
Insulation MaterialLow smoke FR PVC
Average Thickness (mm)0.3 Nom.
Min. Point Thickness0.170 (mm)
Insulation Diameter (±0.05mm)1.55
Inner JacketLow smoke FR PVC
Gray(mm) OD4.70 ± 0.10
Insulation ColorsRed / Black / White / Green
Conductor Material ©Request/EXIT/Blue / Stranded Bare Copper
AWG4C x 22AWG
Conductor Diameter (±0.008mm)7/0.24
Insulation MaterialLow smoke FR PVC
Average Thickness0.2 Nom. (mm)
Min. Point Thickness0.170 (mm)
Insulation Diameter (±0.05mm)1.15
Inner JacketLow smoke FR PVC
Blue(mm) OD3.80 ± 0.10
Insulation ColorsRed / Black / White / Green
Conductor Material (D)Door Contact White / Stranded Bare Copper
AWG2C x 22AWG
Conductor Diameter (±0.008mm)7/0.24
Insulation MaterialLow smoke FR PVC
Average Thickness0.2 Nom. (mm)
Min. Point Thickness0.170 (mm)
Insulation Diameter (±0.05mm)1.15
Inner JacketLow smoke FR PVC
White(mm) OD3.20 ± 0.10
Insulation ColorsRed / Black
AssemblyA + B + C + D
ColorYellow



Dimensions

Size500ft. / Reel
Weight48.50 lbs.



Features
  • Access Control, Power Lock, Card Reader, Door Contact and Rex/Spare (request to exit)
  • UL 444, UL13, CMP

}
