Wavenet 18/6 7 STRANDED SHIELDED 1,000' REEL(grey)

Wavenet 18/6 7 STRANDED SHIELDED 1,000' REEL(grey)
MSRP: $788.00
Manufacturer: Wavenet
SKU: CC1806SRGY2
Features
  • Power-limited control circuits
  • Wiring of the following systems: Security / Audio / Background music
  • Reference Standard: UL 444 / ETL: CL2P/CMP

Specs

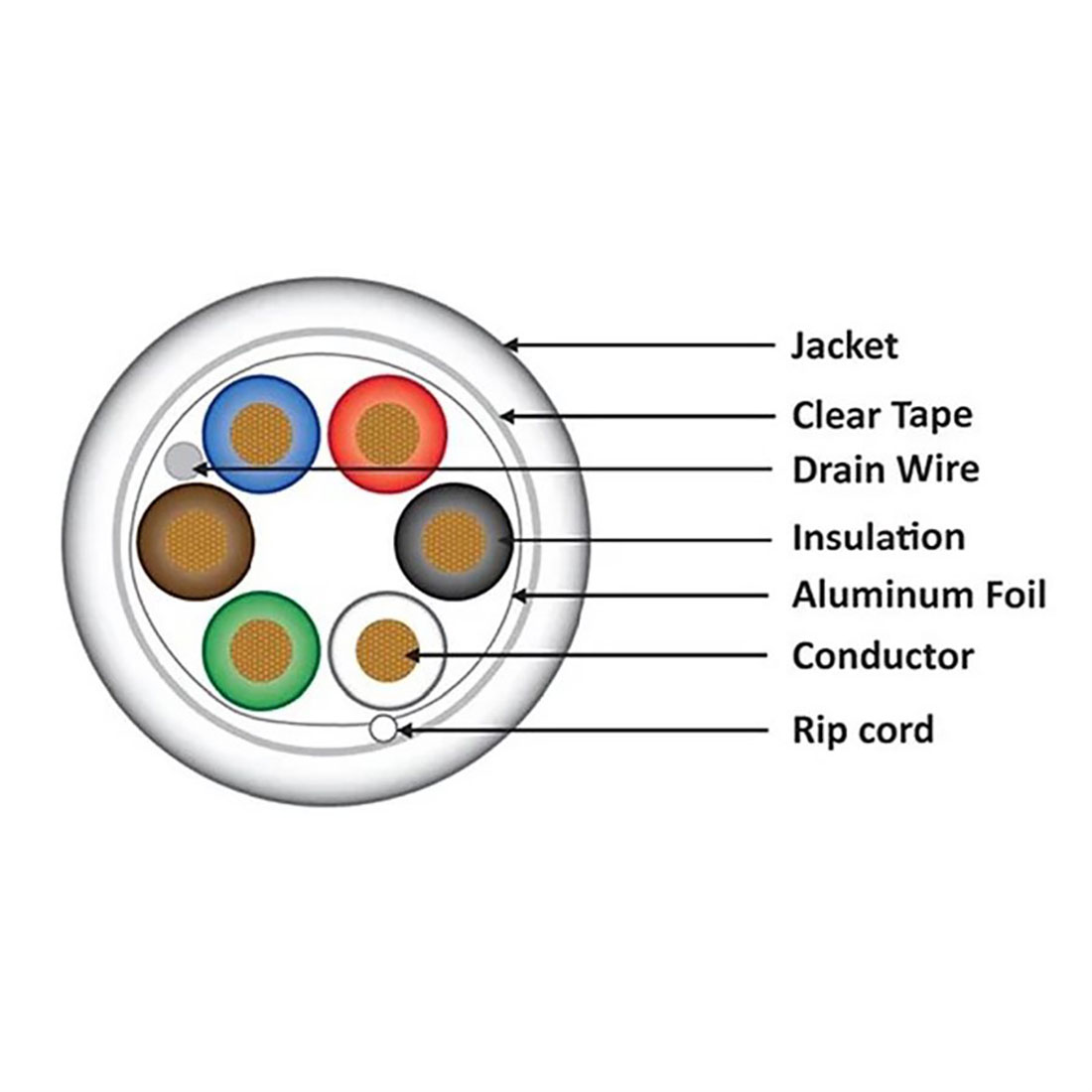

Conductor MaterialStranded Bare Copper
AWG18
Conductor7 / 0.40 (mm)
Insulation MaterialPVC
Average Thickness0.225 (mm)
Min. Point Thickness0.2 (mm)
Insulation Diameter (+/30.3mm)1.65
Assembly Diameter (±0.2mm)5
AL-FOILYes
Drain Wire7 / 0.18TC
PE-TAPEYes
Jacket MaterialFR-PVC
Average Thickness0.55 (mm)
Min. Point Thickness0.5 (mm)
Outer Diameter (±0.2mm)6.15
Rip CordYes
Insulation ColorsBlack / Red / White / Green / Brown / Blue
Nominal Weight56.5 lbs.
Max. Recommended Pulling Tension110 N
Min Bend Installation35mm
Spark Test2.0 kv
Dielectric Test2 kv/min
Suggested Voltage Rating300 volts
ColorGrey



Dimensions

Size1000 ft. / Reel
