Wavenet 14/4 SPEAKER BC STRAND 500' REELEX II(black)

The Wavenet AC1404RBK4-500 is a 500-foot spool of 14-gauge, 4-conductor (14/4) black speaker wire designed for professional audio, communication, and signal control systems. It features stranded bare copper conductors, CMR (Riser) rating for in-wall use, and comes in a Reelex II pull box for easy installation.
MSRP: $504.00
Manufacturer: Wavenet
SKU: AC1404RBK4-500

Features

  • Ideal for high-end commercial or residential in-wall rated audio (speaker) installations
  • 14 AWG with 4 insulated conductors made with Stranded Oxygen Free Copper
  • Sequential footage marking
  • Standards:
    • c(ETL) Listed CMR/CMP
    • TIA-568-C.2
    • RoHS Compliant

Specs

Gauge/Conductors 14 AWG, 4 Conductors
Material Oxygen-Free Bare Copper (OFC)
Rating CMR/CL3R (Riser Rated for in-wall installation)

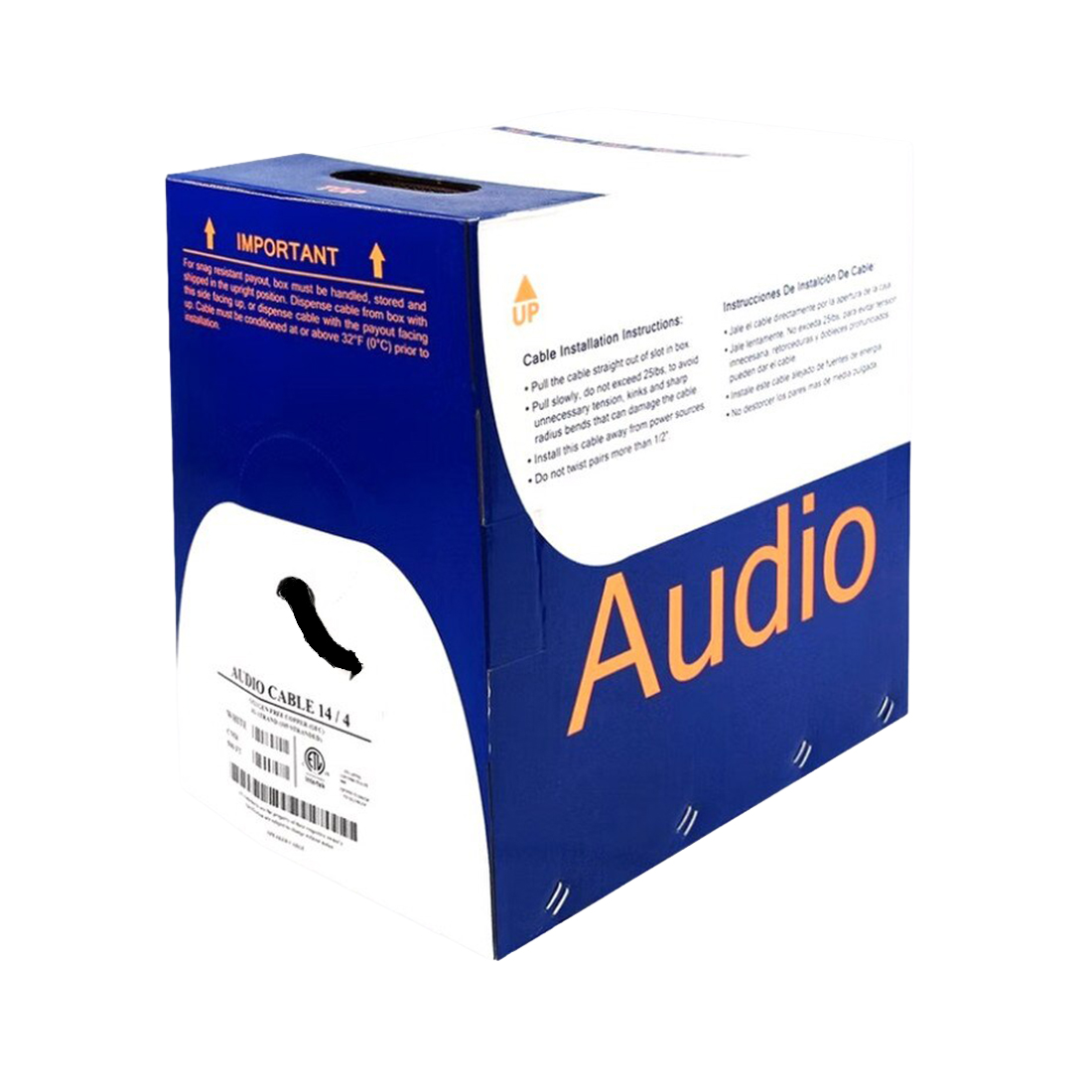

Packaging Reelex II pull box
Conductor Oxygen Free B.C.
Number of Conductors 4
AWG 14
Stranding 105
Insulation Material PVC
Jacket Material PVC
Rip Cord Nylon
Conductor Resistance 9.2 (ohms)



Dimensions

Conductor Diameter 0.0063"
Insulation Diameter: 0.1023"
Average Thickness: 0.014"
Min. Point Thickness: 0.013"
Assembly Diameter: 0.248"
Jacket Outer Diameter: 0.3149"
Average Thickness: 0.0315"
Min. Point Thickness: 0.0283"
Nominal Weight 42 lbs



Product Files
SPEC SHEETS

Features

  • Ideal for high-end commercial or residential in-wall rated audio (speaker) installations
  • 14 AWG with 4 insulated conductors made with Stranded Oxygen Free Copper
  • Sequential footage marking
  • Standards:
    • c(ETL) Listed CMR/CMP
    • TIA-568-C.2
    • RoHS Compliant
