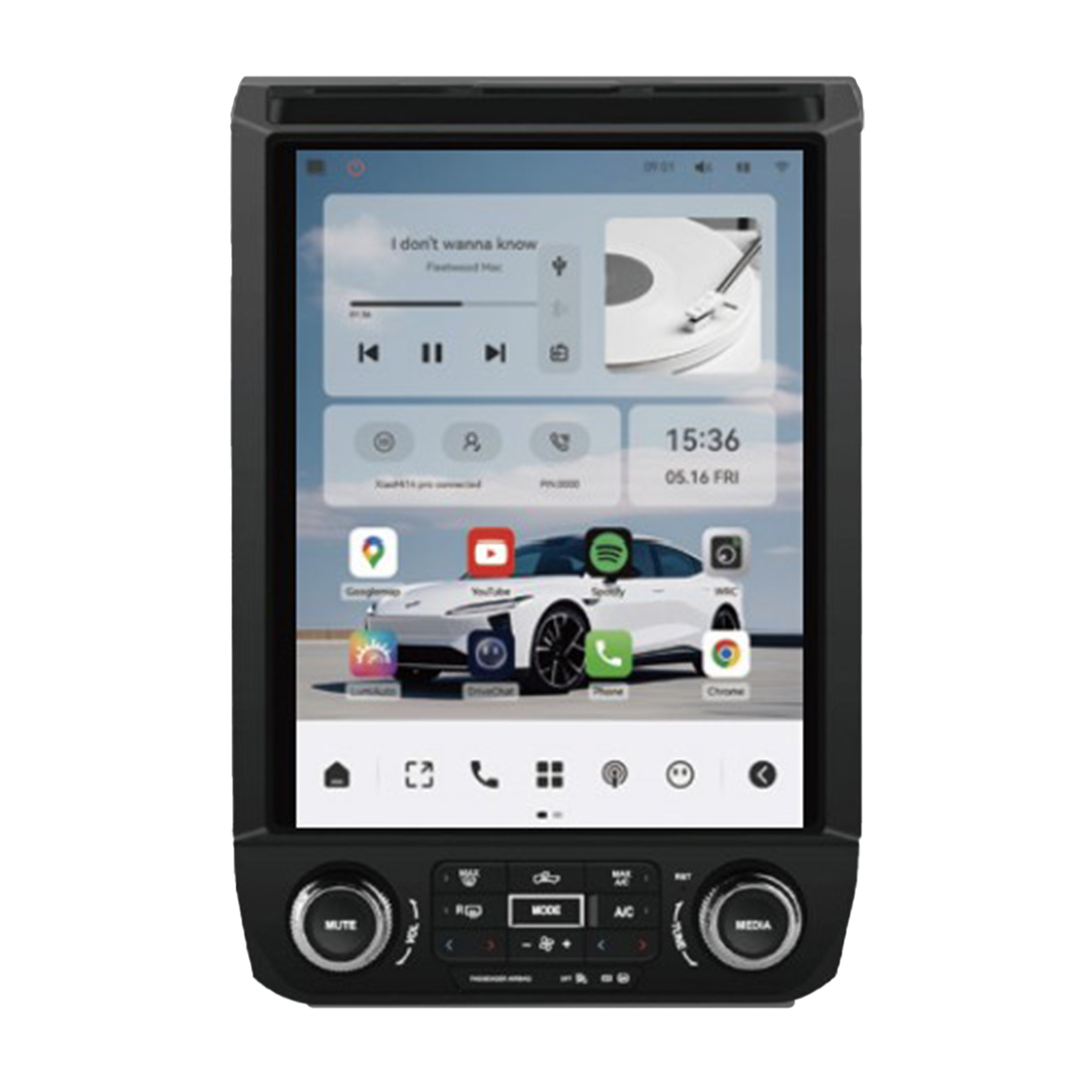

Vinland Titan Series Ford F-150 2015-2020 (12.1”)

Name: Vinland Titan Series Ford F-150 2015-2020 (12.1”)
SKU: T14FO1-12
Availability: InStock

The Vinland Titan Series upgrades the factory display area with a larger, more modern control center while keeping the dashboard layout clean and purposeful. From navigation and smartphone connectivity to audio tuning and camera expansion, it brings the features today’s drivers expect without sacrificing the truck’s rugged character.

MSRP: $999.00

Manufacturer: Vinland

SKU: T14FO1-12

Overview
Specifications
Attachments

Features

Professional Built-in DSP: Experience premium in-car audio with the Vinland T-style radios, featuring a built-in DSP for precise sound tuning, immersive clarity, and customizable listening profiles
Wi-Fi 6 Connectivity: Faster, more secure dual-band (2.4GHz/5GHz) wireless, eliminating data lag and mobile interconnect latency
Built-in HDMI Output: Supports flexible dual-screen modes without extra adapters: mirrored display, dual independent displays with shared audio, dual-zone playback
Up to 4K video output supported
Built-in Dual-MIC with Noise Cancellation: Our integrated dual-microphone system, coupled with an advanced noise-cancellation algorithm, significantly enhances call quality, ensuring crystal-clear conversations
High-Resolution Audio & Video: Experience premium sound and visual with support for DSD audio soft-decoding and 8K video codecs
OminiGuard upgraded protection for you and your car
DriveKaraoke-in-car KTV system: In-car karaoke with vocal removal + DSP effects

Specs

Operating System: Android 14
Processor: Octa-core
Memory: 6 GB RAM
Storage: 128 GB internal storage
Panel Type: QLED
Resolution: 1280 × 800
Brightness: 550 nits
Surface: Anti-glare light-suppression
Cellular: Built-in 4G LTE
Wi-Fi: Dual band 2.4 GHz / 5 GHz
Bluetooth: Qualcomm aptX HD supported
USB: Media playback / USB tethering
Hotspot: LTE hotspot sharing supported
Smartphone Integration: Wireless Apple CarPlay, Wireless Android Auto, Phone Mirroring, Hands-Free Calling
Built-in Amplifier: 4 × 29 W RMS
Pre-outs: 4V RCA (Front / Rear / Sub)
Digital Outputs: Optical & Coaxial SPDIF
DSP: 24-bit audio processor
EQ: 32-band equalizer
Crossover: 3-way active crossover
High-Res Audio: DSD64 / DSD128 / DSD256 support
Camera Inputs: Up to 4 cameras (QuadCam recording)
Camera Recording: Simultaneous multi-view recording
Video Output: HDMI for external displays

Product Files

MANUALS

T14FO1-12 Manual
