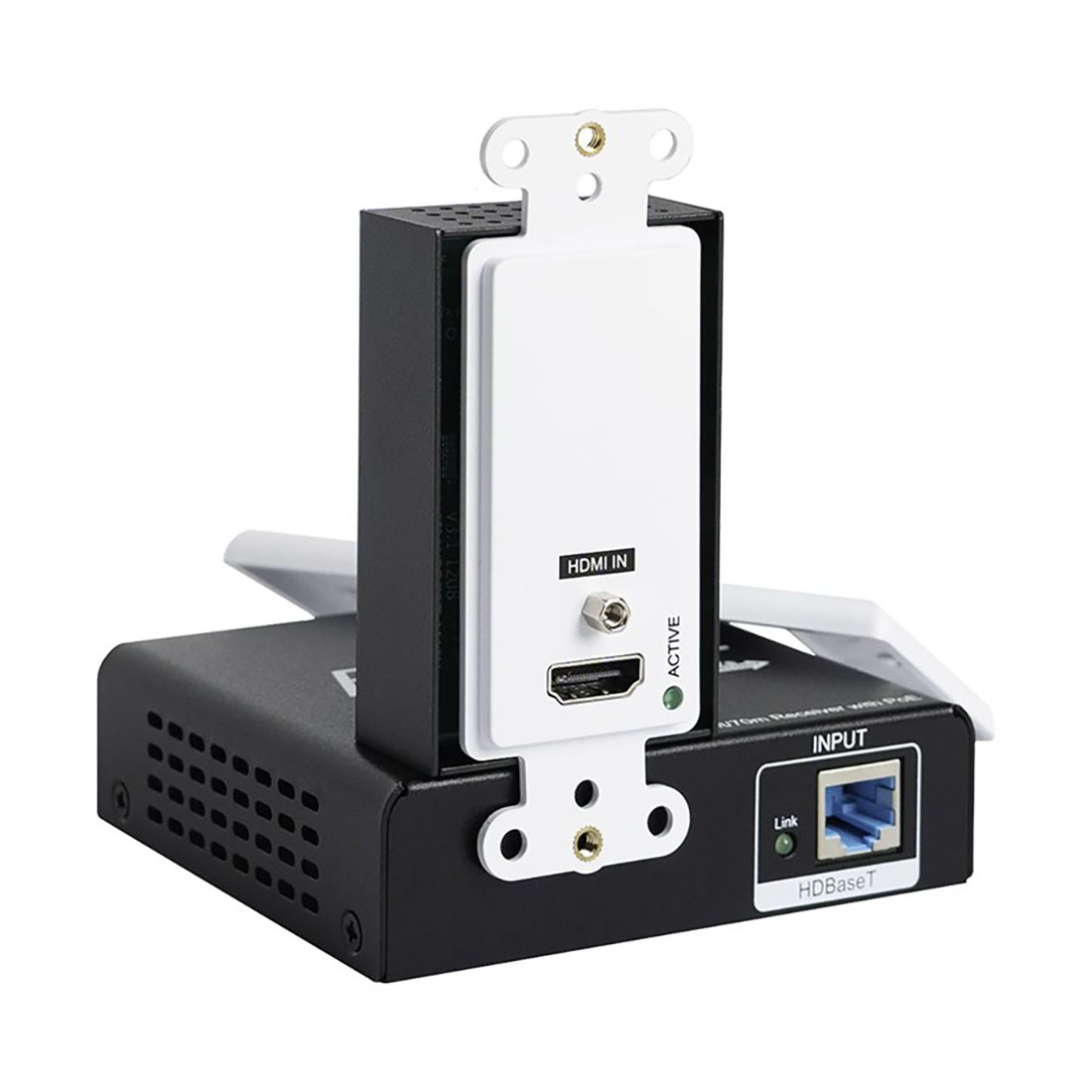

Vanco HDBaseT Extender Set w/ Wall Plate Transmitter

Vanco HDBaseT Extender Set w/ Wall Plate Transmitter
MSRP: $653.99
Manufacturer: Vanco
SKU: EVWP3000

Specs

  • HDMI Compliance: HDMI 2.0
  • HDCP Compliance: HDCP 1.4/2.2
  • Video Resolution: 4K@60Hz, 4:4:4 up to 131ft (40m), 1080p@60Hz, up to 230ft (70m)
  • Color Space: RGB/YCbCr 4:4:4/4:2:2
  • Color Depth: 8/10/12 Bit
  • HDMI Audio Formats: LPCM 2/5.1/7.1CH, Dolby Digital, Dolby Digital Plus, DTS, DTS-HD
  • ESD Protection Air Gap Discharge: +/-8kV
  • Human Body Model Contact Discharge: +/-4kV
  • Transmitter Inputs
    • 1x HDMI Input (Type A, 19-pin)
    • 1x IR (phoenix jack)
    • 1x RS232 (phoenix jack)
    • 1x HDBaseT Out (RJ45)
  • Receiver
    • 1x HDMI Output (Type A, 19-pin)
    • 1x IR IN
    • 1x IR OUT
    • 1x HDBaseT IN (RJ45)
  • Power Supply
    • Input: AC100~240V 50/60Hz
    • Output: DC 24V, 1A
    • US/EU Standards, CE/FCC/UL
  • Power Consumption 9W (Max

Dimensions

  • Transmitter: 1.8" x 4.1" x 1.2"
  • Receiver: 3.82" x 1" x 3.51"
  • Transmitter: 5.75 oz
  • Receiver: 6.75 oz
