| Transmission Range |
Extends 1080p resolutions up to 230ft (70m) over a single Cat5e/6 cable and 4K@60Hz- 4:2:0 color subsampling up to 131ft (40m) |
| Bi-directional IR control |
Yes |
| RS-232 control |
Yes |
| High Bandwidth |
10.2Gp |
| HDCP 2.2 compliant |
Yes |
| CEC Support |
Yes |
| Power Supply |
DC 12V, 1A |
| Power Consumption |
9.6W |
| Input Signal |
TX: 1 HDMI,1 IR; RX: 1 IR, 1 RJ-45 |

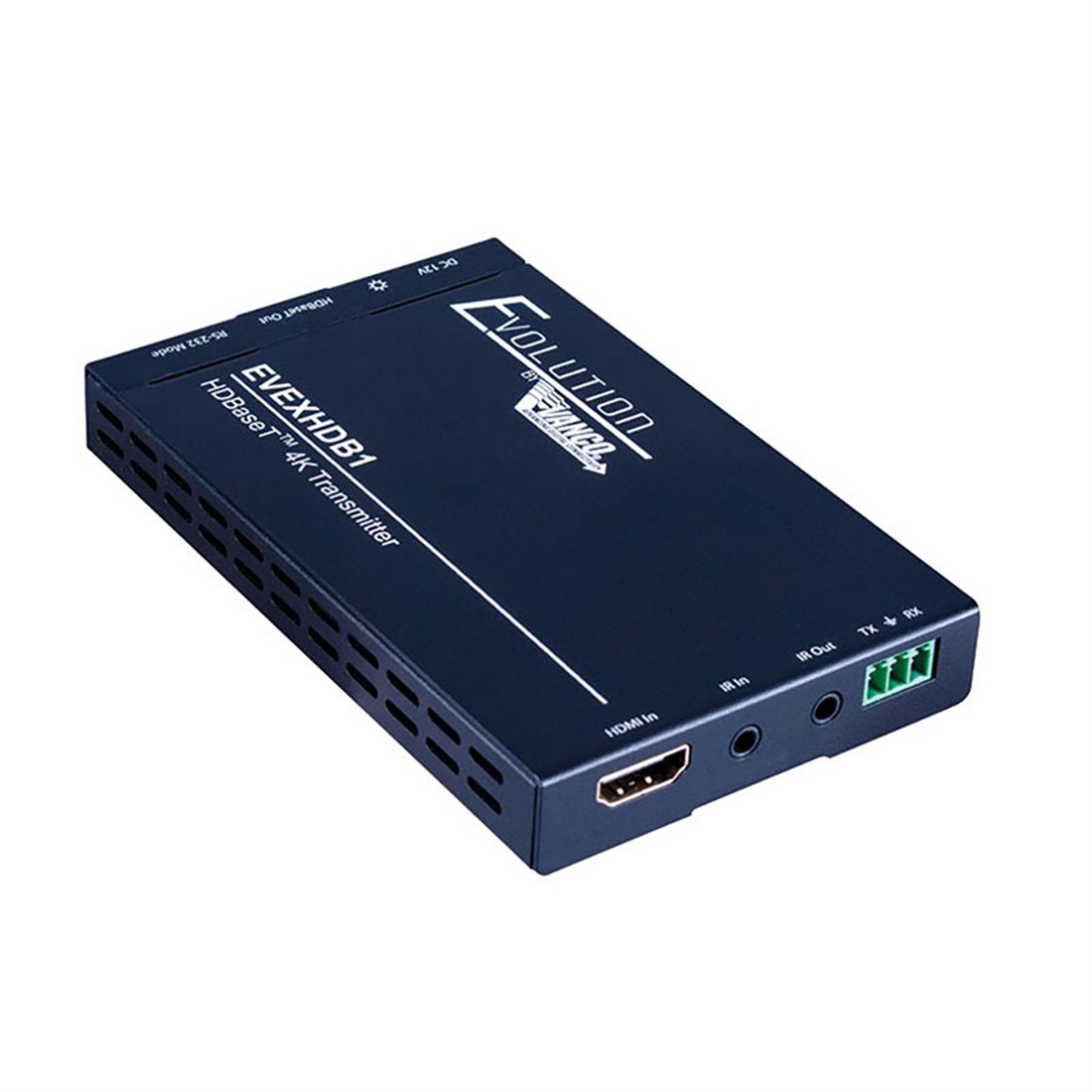

| Input Connector |
TX: HDMI female, 3.5mm mini jack; RX: 3.5mm mini
jack; RJ-45 |
| Video Signal |
HDMI 1.4 |
| Audio |
Digital audio, transmit through HDMI audio |
| Output |
TX: 1 RJ-45, 1 IR; RX: 1 HDMI, 1 IR |

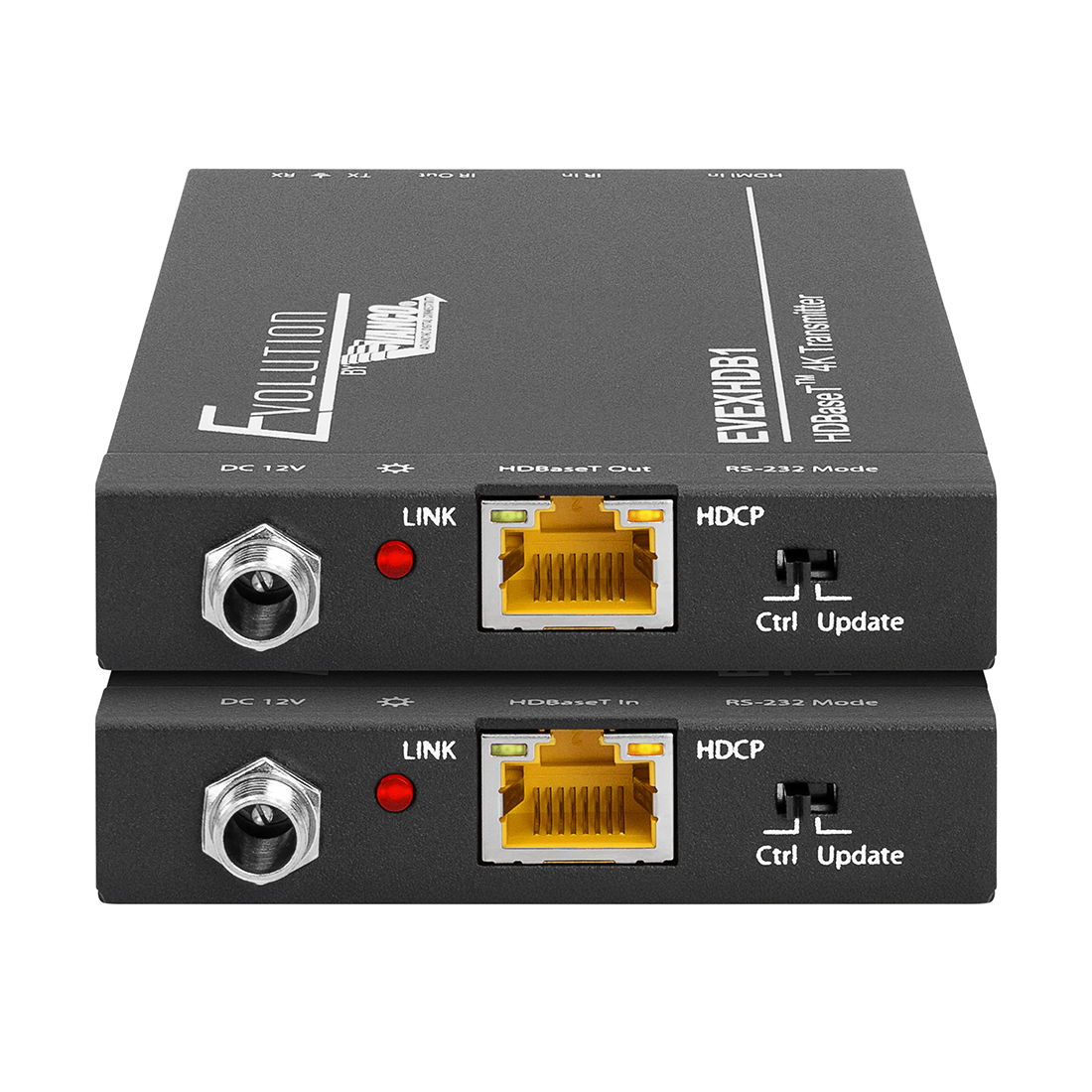

| Output Connector |
TX: RJ-45., 3.5mm mini jack; RX: HDMI female
3.5mm mini jack |
| Transmission Mode |
HDBaseT |
| Resolution Range |
800x600@60Hz~4K×2K |
| Transmission Distance |
Maximum distance 230 ft. (70 m) |
| SNR |
>70dB@ 100MHz-100M |
| Bandwidth |
10.2Gbps |
| THD |
0.005%@1KHz |
| HDMI Standard |
Support HDMI1.4, and HDCP |
| Impedance |
75Ω |
| HDMI Resolutions |
480I, 480P, 576I, 576P, 720P, 1080I, 1080P,
4Kx2K, 1080P 3D |
| DVI Resolutions |
640x480@60Hz, 640x480@72Hz, 640x480@75Hz,
800x600@60Hz, 800x600@72Hz, 800x600@75Hz, 1024x768@60Hz, 1024x768@70Hz,
1024x768@75Hz, 1280x720@60 Hz, 1280x1024@60Hz, 1280x1024@75Hz, 1600x1200@60Hz,
1920x1080@60Hz, 1920x1200@60Hz |
