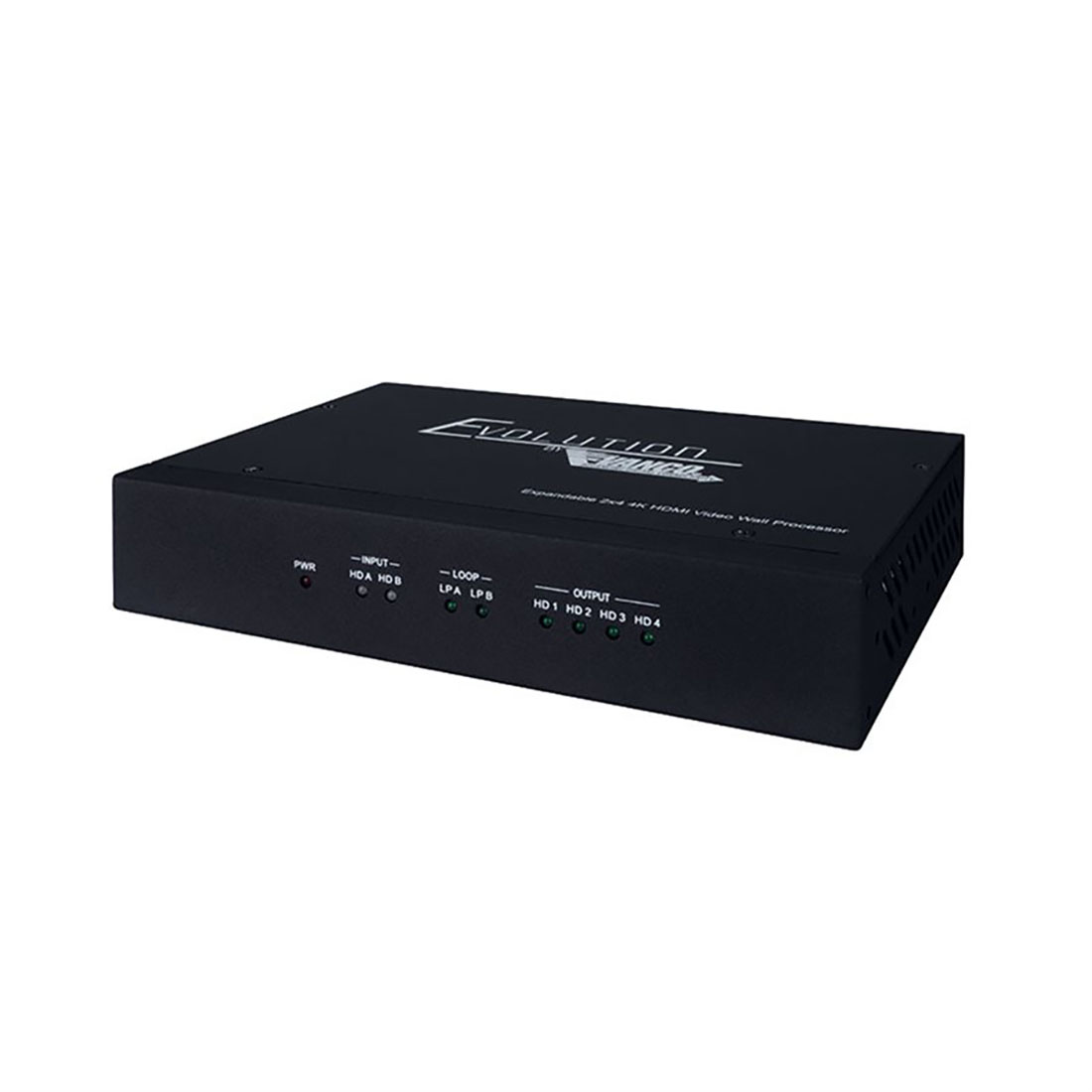

Vanco Expandable 4K 2×4 HDMI Video Wall Processor

Vanco Expandable 4K 2×4 HDMI Video Wall Processor
MSRP: $2089.99
Manufacturer: Vanco
SKU: EVSP24VW
Features
  • 4K 2×4 HDMI Video Wall Processor
  • Allows for 16 rows and columns of displays in any video wall configuration up to 16×16
  • Two HDMI loop-outs to cascade into other units for larger video walls or to monitor sources locally
  • Two HDMI inputs allow for multiple source video wall configurations, or to switch one source across the entire video wall display
  • Passes up to 4K@60Hz with HDR
  • Able to scale output resolutions
  • HDMI 2.0 and HDCP 2.2 compliant
  • Customizable options for bezel adjustment
  • Supports 180° screen rotation
  • Able to be controlled over RS232 and TCP/IP via product software or 3rd party control systems

Specs

  • HDMI Compliance: HDMI 2.0
  • HDCP Compliance: HDCP 2.2/1.4
  • Input Video Formats
    • 4096x2160p 24/25/30/50/60Hz
    • 3840x2160p 24/25/30/50/60Hz
    • 1080p 24/25/30/50/60Hz
    • 1080i 50/60Hz
    • 1920x1200 60Hz
    • 1680x1050 60Hz
    • 1600x1200 60Hz
    • 1440x900 60Hz
    • 1400x1050 60Hz
    • 1366x768 60Hz
    • 1360x768 60Hz
    • 1280x1024 60Hz
    • 1280x960 60Hz
    • 1280x800 60Hz
    • 1024x768 60Hz
    • 1280x720p 50/60Hz
  • Audio Format: 2.0 channel, 5.1 channel, LPCM, Dolby, DTS
  • Housing: Metal Enclosure
  • Color: Black

Dimensions

  • Size (W x D x H): 8.5” x 5.7” x 1.7”
  • Weight: 4.4 lb.
