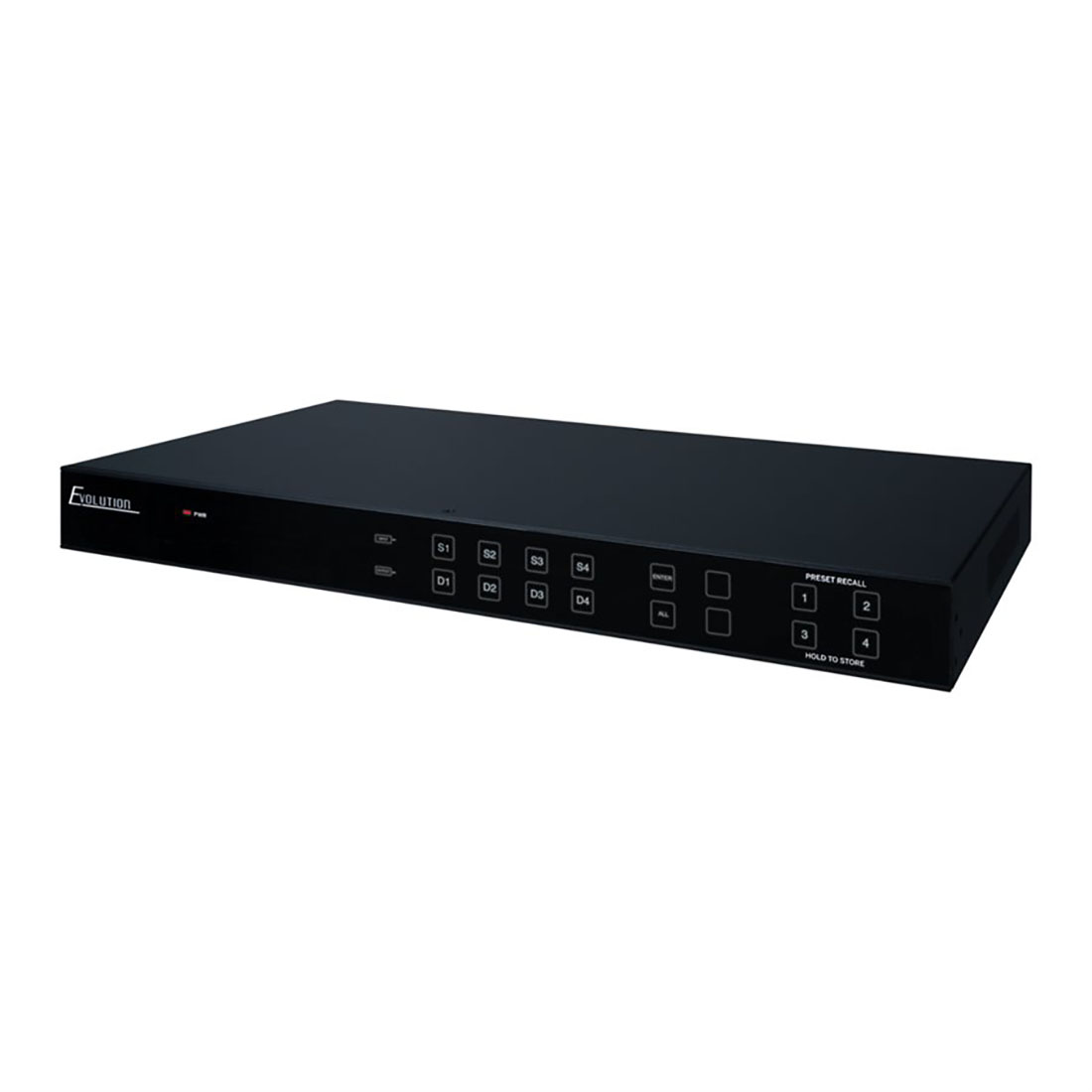

Vanco Evolution HDBaseT 4x3 Matrix Selector Switch 4K

Vanco Evolution HDBaseT 4x3 Matrix Selector Switch 4K
MSRP: $2795.99
Manufacturer: Vanco
SKU: EVMX4X3
Features
  • 4K 4×3 HDBaseT Matrix that accommodates 3 HDBaseT outputs and 1 HDMI output
  • Extends 4K@60Hz 4:4:4, and HDR10 up to 131ft/40m over a single Cat6 cable
  • Outputs 4K@60Hz 4:4:4, HDR10 and Dolby Vision on the HDMI inputs and output
  • Extends 1080p resolution up to 230ft/70m over a single Cat6 cable
  • PoC receivers sold separate (EVRXHD2 and EVRXDSC)
  • Features POC (Power over Cable) technology – providing power for the receivers resulting in easy installation
  • HDCP 2.2 compliant
  • Digital and analog audio breakouts for the HDMI output
  • Built-in EDID management and advanced HDCP handling
  • Controllable via front panel, IR, RS-232 and third party control systems, as well as a built in GUI via IP connection
  • Features bi-directional IR and RS-232 for source and/or display control
  • Includes EV-IRMST IR integration cable for seamless integration with 3rd Party IR Systems
What’s in the box
  • EVMX4X3 HDBaseT Matrix Switcher
  • (2) Mounting Ears with 6 Screws
  • (4) Plastic feet
  • IR Remote
  • (5) IR Receivers
  • (5) IR Emitters
  • RS-232 Cable (3-pin to DB9)
  • IR Control Cable (EV-IRMST)
  • Power Supply (24V DC 2.71A)
  • Product Manual

Special Order Only

Specs

Video Input(4) HDMI
Video Input Connector(4) Type-A Female HDMI
Video HDMI Input ResolutionUp to 4K@60Hz 4:4:4, HDR10, Dolby Vision
Video Output(3) HDBaseT, (1) HDMI
Video Output Connector(3) RJ45, (1) Type-A female HDMI
Video HDMI Output ResolutionUp to 4K@60Hz 4:4:4, HDR10, Dolby Vision
Video HDBaseT Output ResolutionUp to 4K@60Hz 4:4:4, HDR10
Video HDMI Audio SignalLPCM 7.1 audio, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, DTS:X, and DTS-HD Master Audio pass-through
Audio Output:  (1) SPDIF, (1) RCA (L+R)
Audio Output Connector(1) Toslink connectors, (1) 3.5mm jacks
Digital SPDIF Audio FormatSupports PCM, Dolby Digital, DTS, DTS-HD
Analog RCA (L+R) Audio FormatSupports PCM
Frequency Response20Hz – 20KHz, ±3dB
Audio Output Impedance70 Ohms
Transmission ModeHDBaseT
Transmission Distance1080p ≤ 230 feet (70 meters), 4K@60Hz ≤ 131 feet (40 meters)
Bandwidth18 Gbps



Dimensions

Size (W x H x D)17.2” x 1.7” x 9.3”
Weight5.8 lb.
