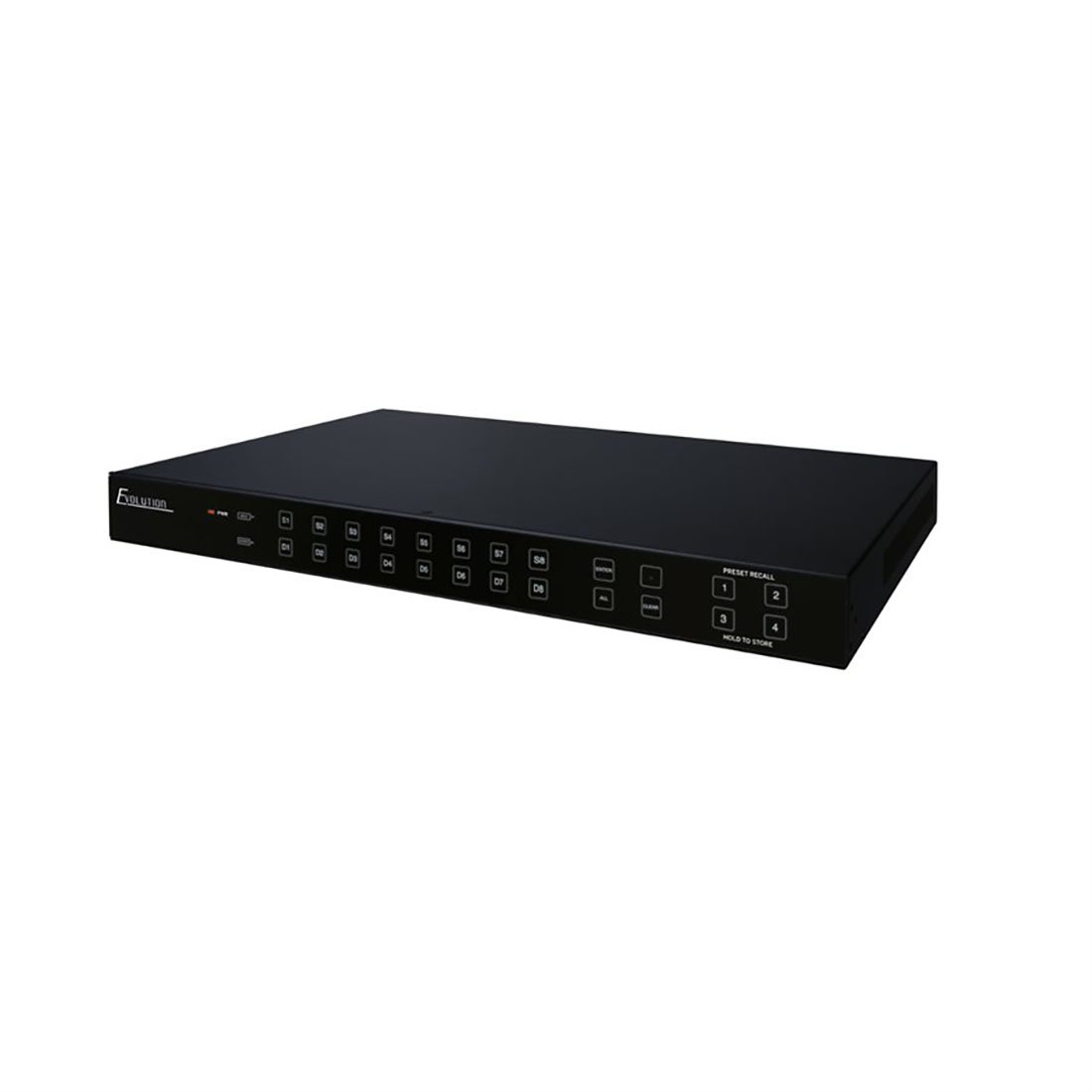

Vanco 2.0 HDBaseT 8x6 Matrix

Vanco 2.0 HDBaseT 8x6 Matrix
MSRP: $4833.99
Manufacturer: Vanco
SKU: EVMX8X6
Features
  • 4K 8x6 HDBaseT Matrix that accommodates 6 HDBaseT outputs and 2 HDMI outputs
  • Extends 4K@60Hz 4:4:4, and HDR10 up to 131ft/40m over a single Cat6 cable
  • Outputs 4K@60Hz 4:4:4, HDR10 and Dolby Vision on the HDMI inputs and outputs
  • Extends 1080p resolution up to 230ft/70m over a single Cat6 cable
  • PoC receivers sold separate (EVRXHD2 and EVRXDSC)
  • Features POC (Power over Cable) technology - providing power for the receivers resulting in easy installation
  • HDCP 2.2 compliant
  • Digital and analog audio breakouts for the HDMI outputs
  • Built-in EDID management and advanced HDCP handling
  • Controllable via front panel, IR, RS-232 and third party control systems, as well as a built in GUI via IP connection
  • Features bi-directional IR and RS-232 for source and/or display control
  • Includes EV-IRMST IR integration cable for seamless integration with 3rd Party IR Systems

Specs

Video Input(8) HDMI
Video Input Connector(8) Type-A Female HDMI
Video Input ResolutionUp to 4K@60Hz 4:4:4, HDR10, Dolby Vision
Video Output(6) HDBaseT, (2) HDMI
Video Output Connector(6) RJ45, (2) Type-A female HDMI
Video Output ResolutionUp to 4K@60Hz 4:4:4, HDR10, Dolby Vision
Video HDMI Audio SignalLPCM 7.1 audio, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, DTS:X, and DTS-HD Master Audio pass-through
Audio Output(2) SPDIF, (2) RCA (L+R)
Audio Output Connector(2) Toslink connectors, (4) 3.5mm jacks
Digital SPDIF Audio FormatSupports PCM, Dolby Digital, DTS, DTS-HD
Analog RCA (L+R) Audio FormatSupports PCM
Frequency Response20Hz – 20KHz, ±3dB
Audio Output Impedance70 Ohms
Control Port(1) FW, (6) IR IN, (1) IR ALL IN, (8) IR OUT, (1) IR ALL OUT, (1) IR EYE, (1) RS-232, (1) TCP/IP
Control Connector(1) Type-A USB, (17) 3.5mm jacks, (1) 3-pin terminal block, (1) RJ45
Transmission Mode:  HDBaseT
Transmission Distance1080p ≤ 230 feet (70 meters), 4K@60Hz ≤ 131 feet (40 meters)
Bandwidth18 Gbps
External Power Supply100V~240V AC, 50/60Hz
Power Consumption92W (Max)



Dimensions

Size (W x H x D)17.2” x 1.7” x 15”
Weight8 lb.
