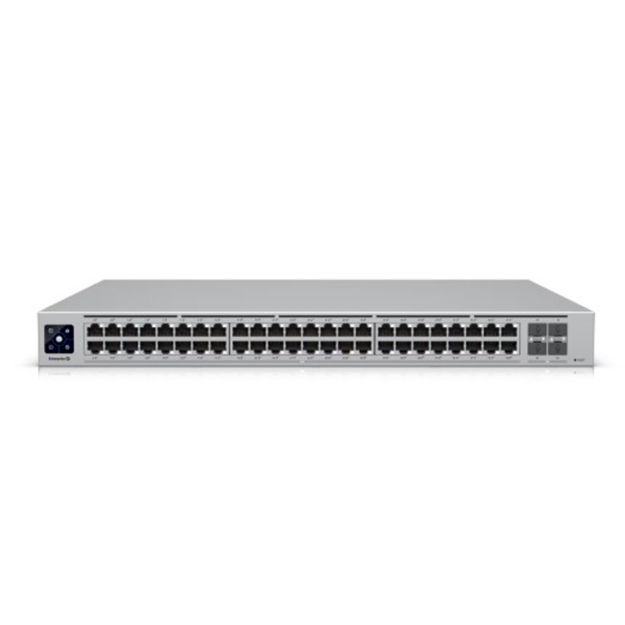

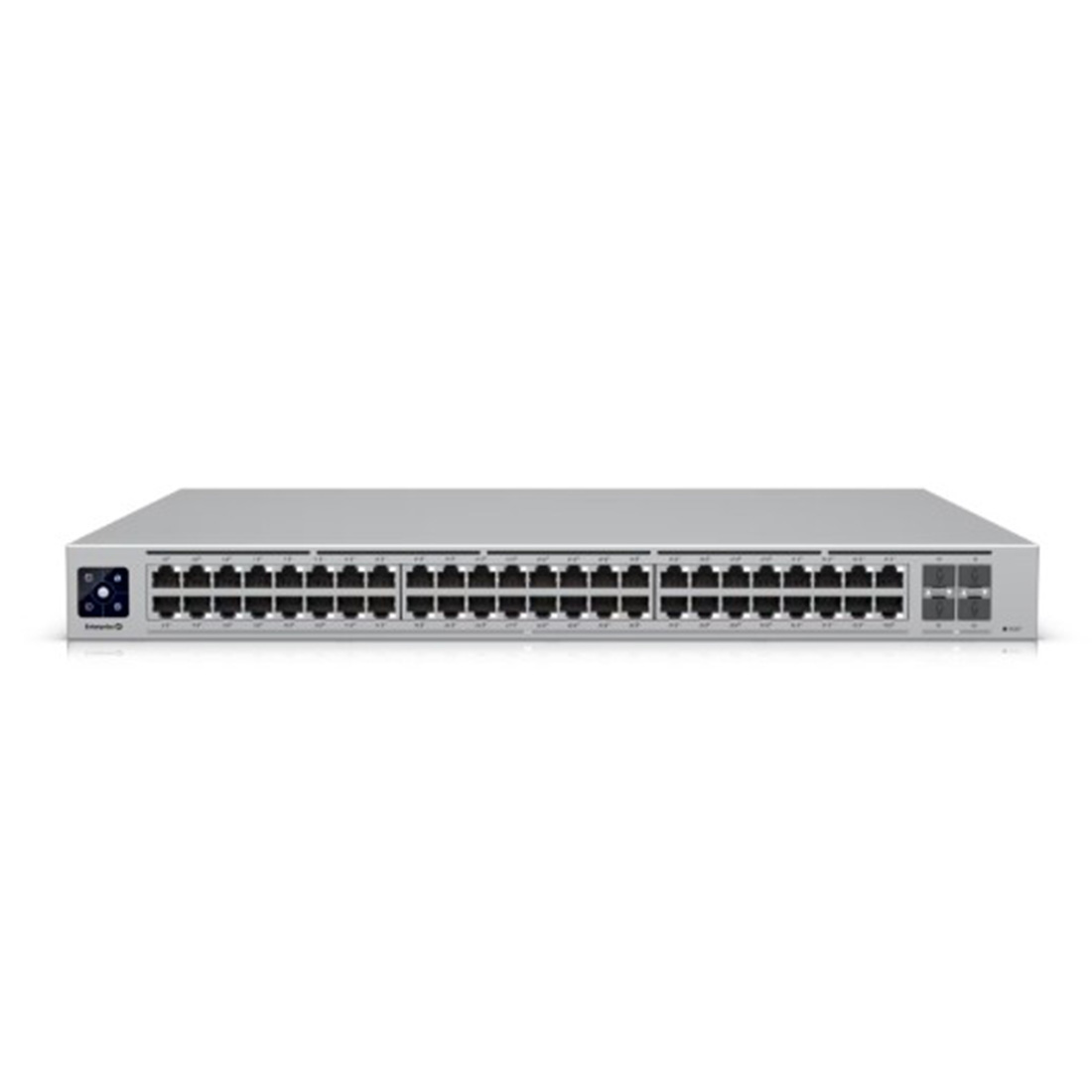

USW-Enterprise-48-PoE: 48-port 2.5GbE PoE sw

Ubiquiti USW-Enterprise-48-PoE is a 48-port UniFi 2.5GbE PoE switch with 10G SFP+ uplinks. It is a strong professional choice for integrators building high-capacity Wi-Fi 6/7, AV and security networks.
MSRP: $1599.00
Manufacturer: Ubiquiti
SKU: USW-ENT-48-POE

Specs

  • Port Layout: 2.5 GbE RJ45 - 48 (All PoE+), (2.5G/1G/100M/10M) | 10G SFP+ - 4, (10G/1G)
  • Max. PoE Output: Up to PoE+
  • Total PoE Availability: 720W
  • Redundancy: DC Power Backup
  • Form Factor: Rack mount (1U)
  • Switching Capacity: 160 Gbps
  • Total Non-Blocking Throughput: 160 Gbps
  • Forwarding Rate: 238 Mpps
  • Supported VLANs: 1,000
  • MAC Address Table Size: 32,000
  • L3 Table Size: ARP Entries - 16,000 | IPv4 Routes - 16,000
  • Packet Buffer Size: 4 MB
  • Access Lists: IPv4 - 128 | MAC - 128
  • Layer 3 Features: DHCP Server (Local Networks), DHCP Relay, Inter-VLAN Routing (Local Networks), Static Routing (Local Networks)
  • Layer 2 Features: LACP Port Aggregation, STP & RSTP, QoS (DSCP), Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron), Advanced IGMP Configuration (Querier, Fast Leave, Router Port), IGMP Snooping, 802.1X Control, MAC-Based ACLs & Device Isolation, DHCP Snooping & Guarding, Egress Rate Limit, Flow Control, Storm Control, Multicast & Broadcast Rate Limiting, MAC Address Blocking, IP-Based ACLs & Network Isolation, MAC-Based Port Restriction, Port Isolation, Port Mirroring, Jumbo Frames, LLDP-MED, Voice VLAN, Loop Protection, Virtual Network Override
  • PoE Ports: PoE+ - 48
  • Max. PoE Wattage per Port by PSE: PoE+ - 32W
  • Max. Power Consumption: 150W (Excluding PoE Output) | 870W (Including PoE Output)
  • Power Method: (1) Universal input, 100—240V AC, 50/60 Hz | (1) USP RPS DC input
  • Power Input Method: AC input
  • Power Supply: AC/DC, internal, 870W
  • Supported Voltage Range: 100—240V AC
  • Management: Ethernet, AR
  • Heat Dissipation: 511.8 BTU/hr (Excluding PoE Output)
  • Enclosure Material: SGCC steel
  • Mount Material: SGCC steel
  • LCM Display: 1.3" touchscreen
  • ESD Protection: Air: ± 16kV, contact: ± 12kV
  • Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
  • Ambient Operating Humidity: 10 to 90% noncondensing
  • NDAA Compliant
  • Certifications: CE, FCC, IC, Anatel: 05485-22-08356

Dimensions

  • 17.4" x 15.7" x 1.7"
  • Supported Rack Depth: 23.6- 47.2"
  • 13.7 lbs
  • With mounting brackets: 13.9 lbs
