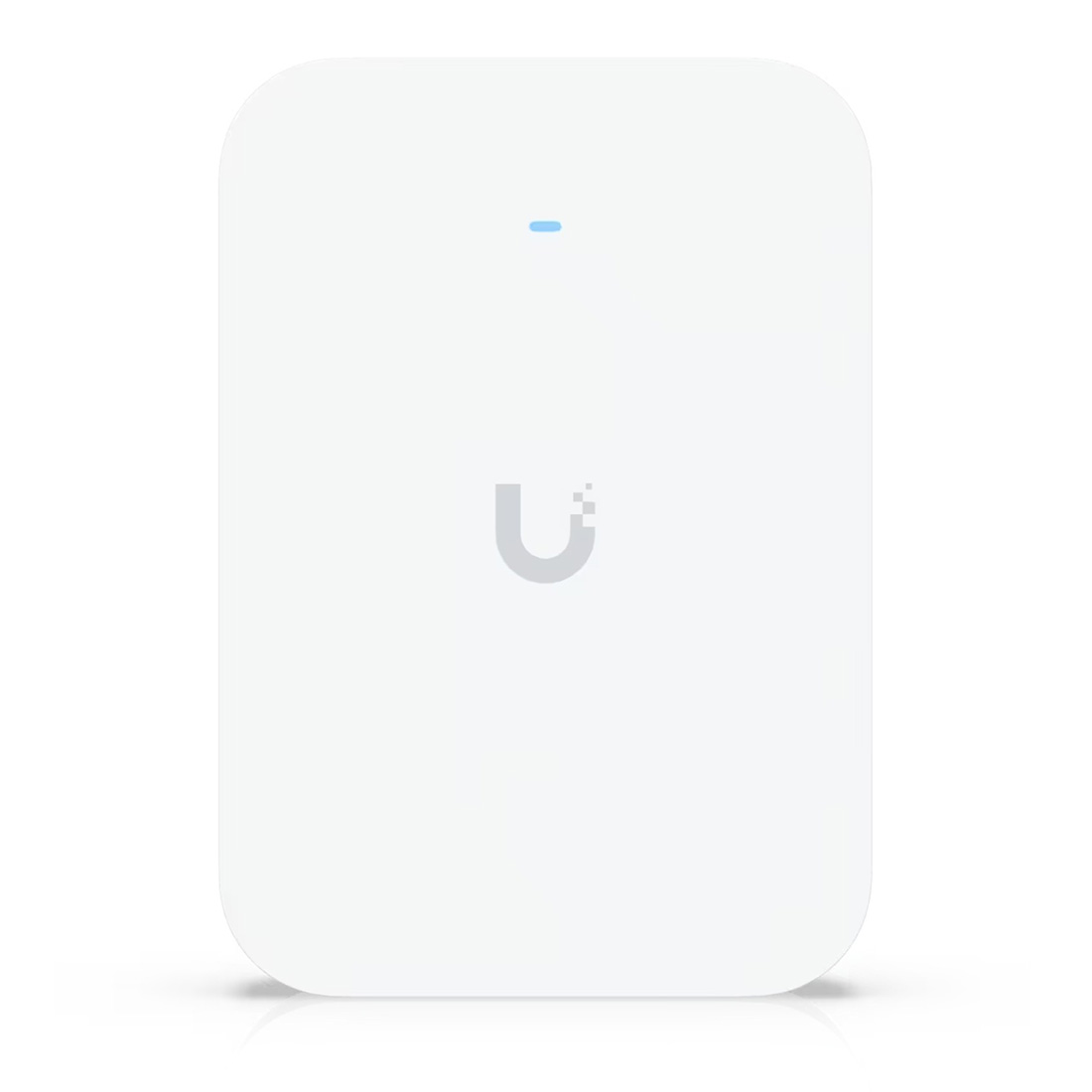

Ubiquiti U7 Pro XG Wall-mounted Access Point (U7-Pro-XG-Wall-US)

Ubiquiti U7 Pro XG Wall UniFi Wi-Fi 7 access point gives custom integrators a wall-mount AP for premium in-room wireless coverage. Dealers can use it in homes, offices, and hospitality projects that need Wi-Fi 7 performance with a clean wall installation.
MSRP: $279.00
Manufacturer: Ubiquiti
SKU: U7-PRO-XG-WALL-US

Specs

  • WiFi Standard: WiFi 7
  • Spatial Streams: 6
  • Coverage Area: 140 m² (1,500 ft²)
  • Max. Client Count: 300+
  • Uplink: 10 GbE
  • Mounting: Wall
  • Power Method: PoE+
  • 6 GHz MIMO: 2 x 2 (DL/UL MU-MIMO)
  • 5 GHz MIMO: 2 x 2 (DL/UL MU-MIMO)
  • 2.4 GHz MIMO: 2 x 2 (DL/UL MU-MIMO)
  • 6 GHz Max. Data Rate: 5.8 Gbps (BW320)
  • 5 GHz Max. Data Rate: 4.3 Gbps (BW240)
  • 2.4 GHz Max. Data Rate: 688 Mbps (BW40)
  • 6 GHz Antenna Gain: 6 dBi
  • 5 GHz Antenna Gain: 6 dBi
  • 2.4 GHz Antenna Gain: 4 dBi
  • 6 GHz Max. TX Power: 24 dBm
  • 5 GHz Max. TX Power: 26 dBm
  • 2.4 GHz Max. TX Power: 23 dBm
  • Max. BSSIDs: 8 per Radio
  • Supported Data Rates: 802.11be (WiFi 7) - 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320), 5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240) | 802.11ax (WiFi 6) - 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) | 802.11ac (WiFi 5) - 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) | 802.11n - 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
  • Captive Hotspot Portal: Custom Branding Landing Page, Voucher Authentication, Payment-Based Authentication, External Portal Server Support, Password Authentication, Guest Network Isolation
  • Max. Power Consumption: 22W
  • Supported Voltage Range: 42.5–57V DC
  • Networking Interface: (1) 10 GbE RJ45 port
  • Management: Ethernet
  • Enclosure Material: Polycarbonate, aluminum alloy
  • Mount Material: Aluminum alloy
  • Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
  • Certifications: CE, FCC, IC
  • Ambient Operating Temperature: -30 to 40° C (-22 to 104° F)
  • Ambient Operating Humidity: 5 to 95% noncondensing

Dimensions

  • 6.1" x 4.3" x 1.3"
  • 1.1 lbs
