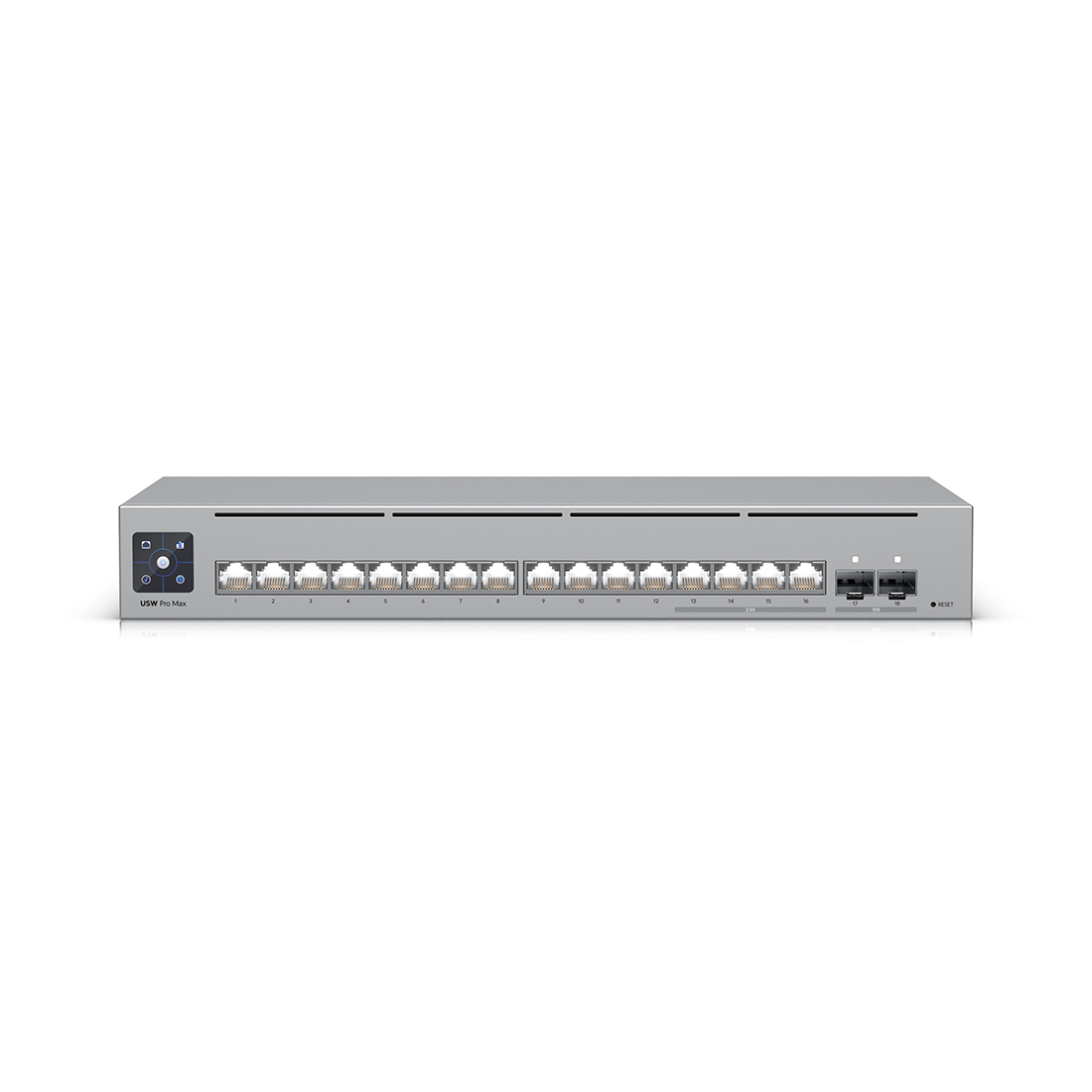

Ubiquiti Pro Max 16-Port Etherlighting switch (USW-Pro-Max-16)

The USW-PRO-MAX-16 is a Layer 3 Etherlighting™ switch that combines (12) GbE and (4) 2.5 GbE ports for flexible connectivity across modern wired networks.
MSRP: $279.00
Manufacturer: Ubiquiti
SKU: USW-PRO-MAX-16

Features

Layer 3

  • DHCP Server (Local Networks)
  • DHCP Relay
  • Inter-VLAN Routing (Local Networks)
  • Static Routing (Local Networks)

Layer 2

  • LACP Port Aggregation
  • STP & RSTP
  • QoS (DSCP)
  • Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
  • Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
  • IGMP Snooping
  • 802.1X Control
  • MAC-Based ACLs & Device Isolation
  • DHCP Snooping & Guarding
  • Egress Rate Limit
  • Flow Control
  • Storm Control
  • Multicast & Broadcast Rate Limiting
  • MAC Address Blocking
  • IP-Based ACLs & Network Isolation
  • MAC-Based Port Restriction
  • Port Isolation
  • Port Mirroring
  • Jumbo Frames
  • LLDP-MED
  • Voice VLAN
  • Loop Protection

Specs

  • Port Layout - 1 GbE RJ45: 12 (1G/100M/10M)
  • Port Layout - 2.5 GbE RJ45: 48 (2.5G/1G/100M/10M)
  • Port Layout - 10G SFP+: 2 (10G/1G)
  • Layer 3: Yes
  • Form Factor: Rack mount (1U), desktop, wall
  • Etherlighting™: Yes
  • Switching Capacity: 842 Gbps
  • Total Non-Blocking Throughput: 42 Gbps
  • Forwarding Rate: 62 Mpps
  • Supported VLANs: 1,000
  • MAC Address Table Size: 16,000
  • L3 Table Size: ARP Entries 6,000 | IPv4 Routes 512
  • Packet Buffer Size: 1.5 MB
  • Access Lists: IPv4 128 | MAC 128
  • Max. Power Consumption: 25W
  • Power Method: AC/DC Adapter (included)
  • Power Input Method: USB Type-C, 5V DC, 5A
  • Power Supply: AC/DC, external, 25W
  • Supported Voltage Range: 4.8—5.2V DC/USB
  • Management: Ethernet | AR
  • Heat Dissipation: 85.3 BTU/hr
  • Enclosure Material: SGCC steel
  • Mount Material: SGCC steel
  • Supported Rack Depth: 400~1200 mm (15.7-47.2")
  • LCM Display: 1.3" touchscreen
  • Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
  • Ambient Operating Humidity: 10 to 90% noncondensing
  • Etherlighting™: Ethernet | SFP+
  • NDAA Compliant: Yes
  • Certifications: CE | FCC | IC | Anatel: 08953-24-08356
  • Software Application Requirements: UniFi Network Vers. 8.1.127 and later

Dimensions

  • Size (W x D x H): 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7")
  • Weight: 1.95 kg (4.3 lb)

Features

Layer 3

  • DHCP Server (Local Networks)
  • DHCP Relay
  • Inter-VLAN Routing (Local Networks)
  • Static Routing (Local Networks)

Layer 2

  • LACP Port Aggregation
  • STP & RSTP
  • QoS (DSCP)
  • Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
  • Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
  • IGMP Snooping
  • 802.1X Control
  • MAC-Based ACLs & Device Isolation
  • DHCP Snooping & Guarding
  • Egress Rate Limit
  • Flow Control
  • Storm Control
  • Multicast & Broadcast Rate Limiting
  • MAC Address Blocking
  • IP-Based ACLs & Network Isolation
  • MAC-Based Port Restriction
  • Port Isolation
  • Port Mirroring
  • Jumbo Frames
  • LLDP-MED
  • Voice VLAN
  • Loop Protection
