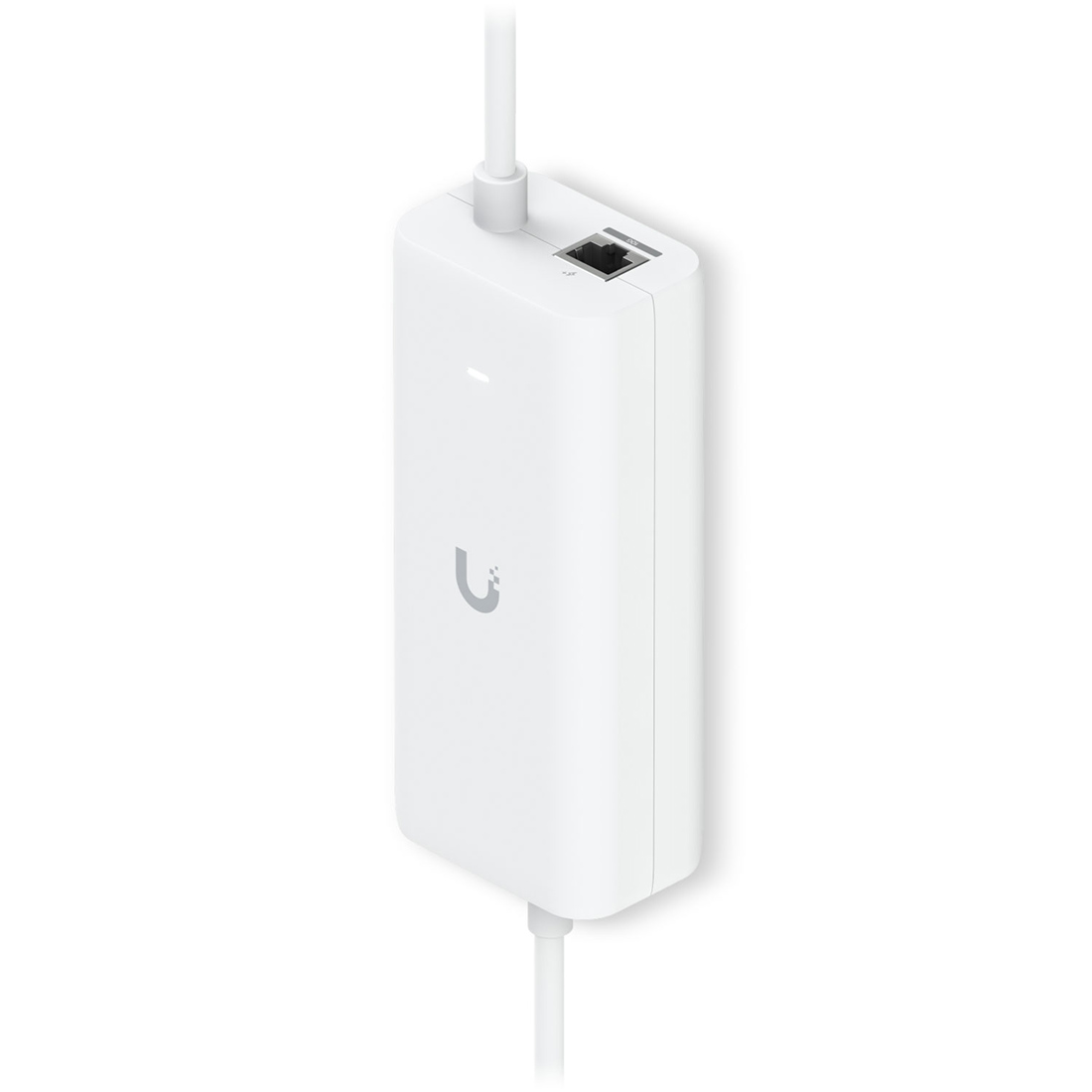

Ubiquiti PoE Integrated AC Adapter (UACC-PoE+-USBC)

Ubiquiti PoE Integrated AC Adapter (UACC-PoE+-USBC)
MSRP: $49.00
Manufacturer: Ubiquiti
SKU: UACC-POE+-USBC

Specs

  • Output Voltage: Type-C: 5V@ 5A | PoE+: 48V@ 0.65A
  • Rated Voltage: 100—240V AC @ 50/60Hz
  • Gigabit LAN Port
  • 4-pair Powering: Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
  • Clamping Protection: 11V data, 60V power
  • Data In / PoE: RJ45 shielded socket
  • Input Current: 1.5A max.
  • Inrush Current: 120A
  • Efficiency: 82%
  • Switching Frequency: 65 kHz
  • Output Ripple: 1% max.
  • Line Regulation: ≤ 5%
  • Load Regulation: ≤ 5%
  • Max. Surge Discharge: 1500A (8/20 μs) power
  • Peak Pulse Current: 36A (10/1000 μs) data
  • Response Time: <1 ns
  • Shunt Capacitance: <5 pF data
  • Surge Protection: Difference and common mode
  • Ambient Storage Temperature: -30 to 70°C (-22 to 158° F)
  • Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
  • Ambient Operating Humidity: 10 to 95% noncondensing
  • NDAA Compliant
  • Certifications: CE, FCC, IC, UL, UKCA, CCC, RoHS

Dimensions

  • 5.7" x 2.4" x 1.7"
  • 12.6 oz
  • Cable: 150 cm (4.9 ft) total, including 30 cm split Type-C/Ethernet ends
  • Power cord: 180 cm (5.9 ft)
