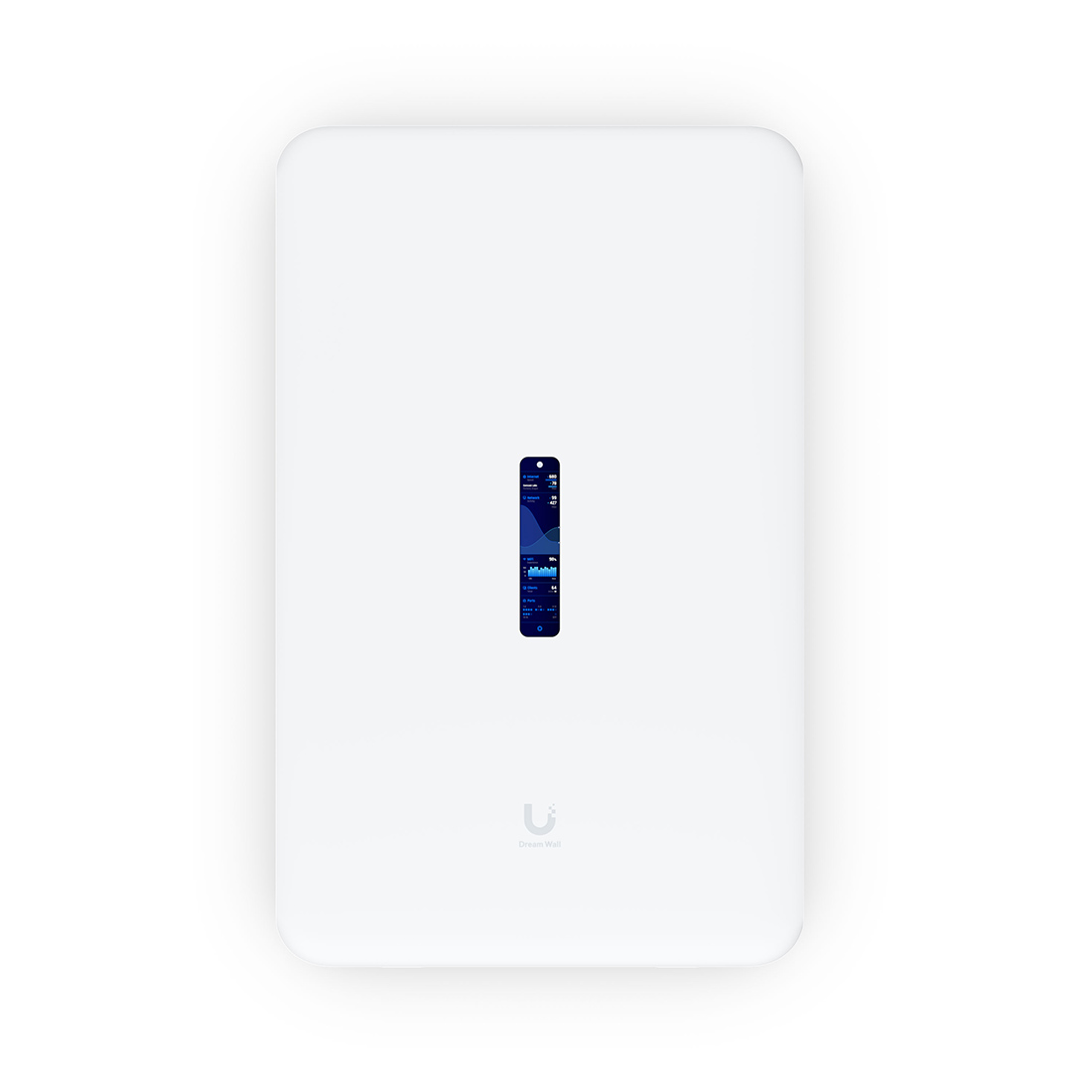

Ubiquiti Dream Wall-mounted 10G Cloud Gateway (UDW-US)

Ubiquiti Dream Wall UDW-US is a wall-mounted 10G UniFi Cloud Gateway with integrated Wi-Fi 6 and high-power PoE switching. Its all-in-one design supports professional residential and commercial networks where rack space is limited.
MSRP: $999.00
Manufacturer: Ubiquiti
SKU: UDW-US

Specs

  • UniFi Application Suite: Network | Protect | Access | Talk | Connect
  • Managed UniFi Devices: 100+
  • Managed Cameras: (12) HD | (7) 2K | (4) 4K
  • Simultaneous Users Connected: 300+
  • Max. WAN Port Count: 8
  • Default WAN Ports: (1) 2.5 GbE RJ45 | (1) 10G SFP+
  • 1 GbE RJ45 Ports: 17 (4 PoE++; 4 PoE+; 4 PoE) | (1G/100M/10M)
  • 2.5 GbE RJ45 Port: 1 | (2.5G/1G/100M)
  • 10G SFP+ Ports: 2 | (10G/1G)
  • IDS/IPS Throughput: 3.5 Gbps
  • Form Factor: Wall-mounted
  • Redundancy: (2) Hot-Swappable PSUs
  • Coverage Area: 140 m² (1,500 ft²)
  • Security: Stateful Firewall | Application-Aware Layer 7 Firewall | DPI & Traffic Identification | Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) | Content Filtering | Intrusion Prevention (IPS/IDS) | Ad Blocking | VLAN/Subnet-based Traffic Segmentation
  • IDS/IPS Signatures: 55,000+ with CyberSecure
  • License-Free SD-WAN
  • Site-to-Site VPN: Site Magic | IPsec | OpenVPN
  • VPN Server: Identity Endpoint One-Click VPN | Teleport Zero-Configuration VPN | WireGuard | OpenVPN | L2TP
  • VPN Client: OpenVPN | WireGuard
  • Networking: Multi-WAN Load Balancing | Advanced QoS | Multicast DNS (mDNS) | Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) | Integrated RADIUS Server | RADIUS over TLS (RadSec) | Additional Internet Failover with UniFi LTE Backup | Internet Quality and Outage Reporting | Policy-based WAN and VPN Routing | Customizable DHCP Server | IPv6 ISP Support | IGMP Proxy
  • Dynamic Routing: OSPF | BGP
  • MAC Address Table Size: 8,000
  • WiFi Standard: 802.11a/b/g/n/ac/ax (WiFi 6)
  • 5 GHz Throughput: 2.4 Gbps
  • 2.4 GHz Throughput: 300 Mbps
  • 5 GHz MIMO: 4 x 4 (DL/UL MU-MIMO)
  • 2.4 GHz MIMO: 2 x 2 (DL/UL MU-MIMO)
  • 5 GHz Antenna Gain: 6 dBi
  • 2.4 GHz Antenna Gain: 5.9 dBi
  • 5 GHz Max. TX Power: 26 dBm
  • 2.4 GHz Max. TX Power: 23 dBm
  • Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
  • Max. BSSIDs: 8 per Radio
  • Supported Data Rates: 802.11ax (WiFi 6) - 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) | 802.11ac (WiFi 5)- 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) | 802.11n - 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) | 802.11g - 6, 9, 12, 18, 24, 36, 48, 54 Mbps | 802.11b - 1, 2, 5.5, 11 Mbps | 802.11a - 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • NVR Storage: Pre-installed 512 GB microSD for NVR | Built-in 128 GB SSD for detection recordings
  • Expansion Slot: MicroSD Card
  • PoE Budget: 420W
  • Max. PoE Wattage per Port by PSE: PoE - 15.4W | PoE+ - 30W | PoE++ - 60W
  • Voltage Range PoE Mode: PoE: 44-57V | PoE+/PoE++: 50-57V
  • Max. Power Consumption: 532W (Including PoE Output)
  • Power Method: Universal AC input 100—240V AC, 7A Max., 50/60Hz
  • Power Supply: (2) Hot-Swappable AC/DC 550W PSU | (1) Pre-installed PSU
  • Supported Voltage Range: 100—240V AC
  • Heat Dissipation: 382 BTU/hr (Excluding PoE Output)
  • Processor: Quad-core ARM® Cortex®-A57 at 1.7 GHz
  • System Memory: 4 GB
  • On-board Storage: 16 GB eMMC | Integrated 128 GB SSD | Pre-installed 512 GB microSD card
  • Enclosure Material: Polycarbonate, galvanized steel, aluminum alloy
  • Mount Material: Stainless steel
  • LCM Display: 4.7" touchscreen
  • Management: Ethernet | Bluetooth
  • Button: (1) Factory-reset
  • ESD/EMP Protection: Air: ± 8kV, contact: ± 4kV
  • Ambient Operating Temperature: -10 to 40° C (14 to 104° F)
  • Ambient Operating Humidity: 5 to 95% noncondensing
  • NDAA Compliant
  • Certifications: CE, FCC, IC, Anatel: 18314-23-08356
  • VLAN: 802.1Q
  • Guest Traffic Isolation

Dimensions

  • 21.6" x 13.5" x 2.4"
  • 19 lbs
