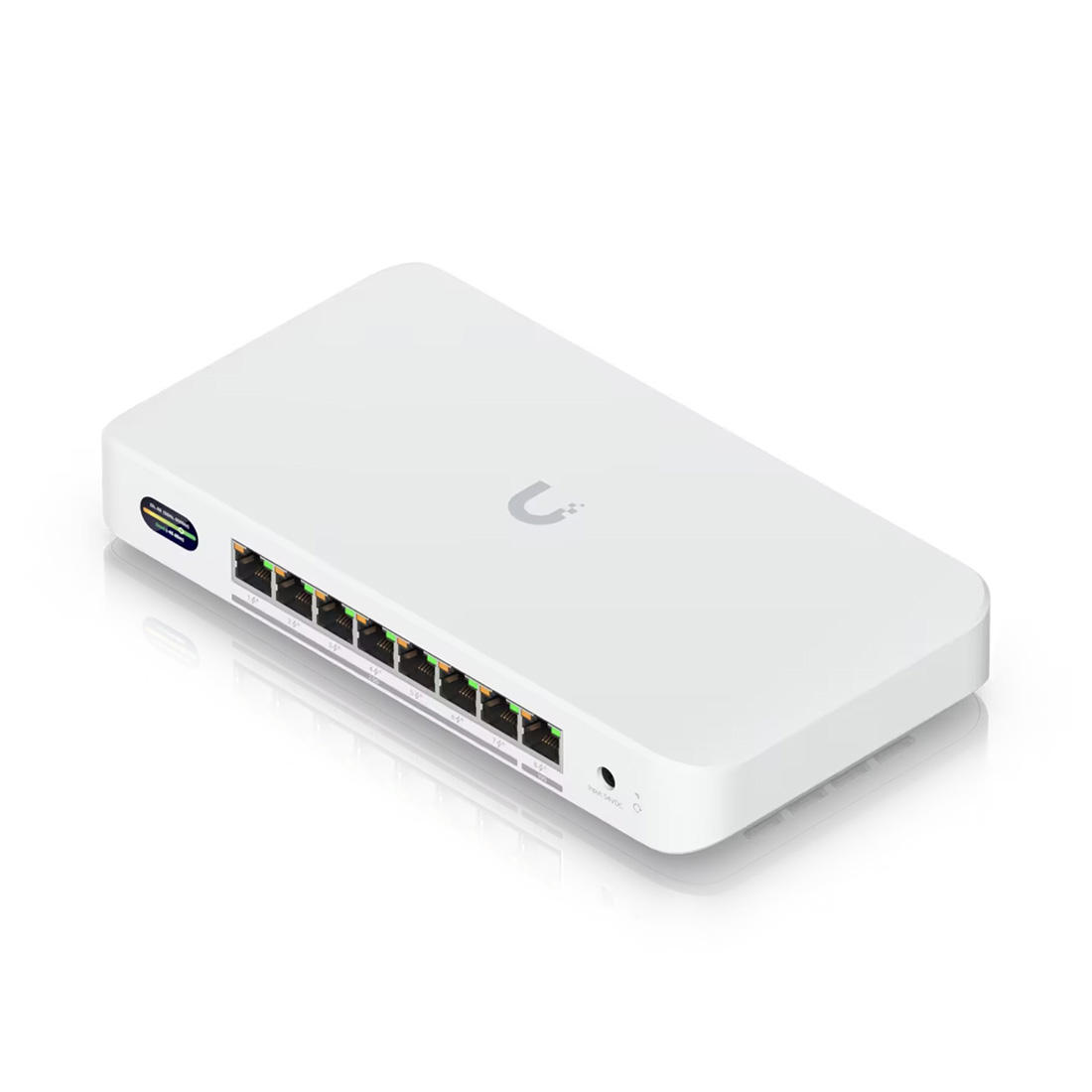

Ubiquiti Device Bridge Swtich PoE+ 8 Port (UDB-Switch-US)

The Ubiquiti UDB-SWITCH-US is a Compact PoE+ switch with (1) 10 GbE port, (7) 2.5 GbE ports, and 6 GHz-ready WiFi 7 bridging integration for seamless, high-capacity wireless uplink to UniFi WiFi.
MSRP: $299.00
Manufacturer: Ubiquiti
SKU: UDB-SWITCH-US

Features

  • LCM status display
  • 6 GHz-ready WiFi 7 bridge
  • 7x 2.5 GbE, PoE+ RJ45 port
  • 10 GbE, PoE+ RJ45 port
  • 35W-185W total PoE supply (35W of PoE power with the included 60W adapter, or up to 185W with the optional 210W adapter)

Specs

  • WiFi Standard: WiFi 7
  • Spatial Streams: 4
  • Mounting Locations: Desktop, wall
  • Power Method: DC jack (54V DC/1.1A)
  • Power Supply: 54V DC/1.1A (Adapter included)
  • 6 GHz MIMO: 2 x 2
  • 5 GHz MIMO: 2 x 2
  • 6 GHz Max. Data Rate: 5.8 Gbps (BW320)
  • 5 GHz Max. Data Rate: 4.3 Gbps (BW240)
  • 6 GHz Antenna Gain: 8 dBi
  • 5 GHz Antenna Gain: 8 dBi
  • 6 GHz Max. TX Power: 23 dBm
  • 5 GHz Max. TX Power: 26 dBm
  • Max. Conducted TX Power: 26 dBm (Combined)
  • Supported Data Rates: 802.11be (WiFi 7) - 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320), 5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240) | 802.11ax (WiFi 6) - 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) | 802.11ac (WiFi 5) - 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) | 802.11n - 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) | 802.11a - 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • Wireless Security: WPA3 SAE (Always On)
  • Max. Power Consumption: 25W (Excluding PoE output)
  • Supported Voltage Range: 42.5–57V DC
  • Networking Interface: (1) 10 GbE RJ45 port | (7) 2.5 GbE RJ45 ports
  • PoE Interface: (8) PoE+ ports
  • Max. PoE Wattage per Port: 30W
  • Total PoE Availability: 60W AC adapter input: 35W | 210W AC adapter input: 185W
  • Antennas: (1) Internal
  • Management: Ethernet, WiFi
  • Channel Bandwidth: 20/40/80/160/240/320 MHz
  • Enclosure Material: Polycarbonate
  • Mount Material: Polycarbonate
  • LCM Display: 0.96" status display
  • Certifications: CE, FCC, IC
  • Operating Frequency Worldwide: 5150—5875 MHz | 5945—7125 MHz
  • Ambient Operating Temperature: -30 to 40° C (-22 to 104° F)
  • Ambient Operating Humidity: 5 to 95% noncondensing

Dimensions

  • 8.4" x 4.4" x 1.3"
  • Device weight: 1.21 lbs
  • With mount weight: 1.24 lbs
