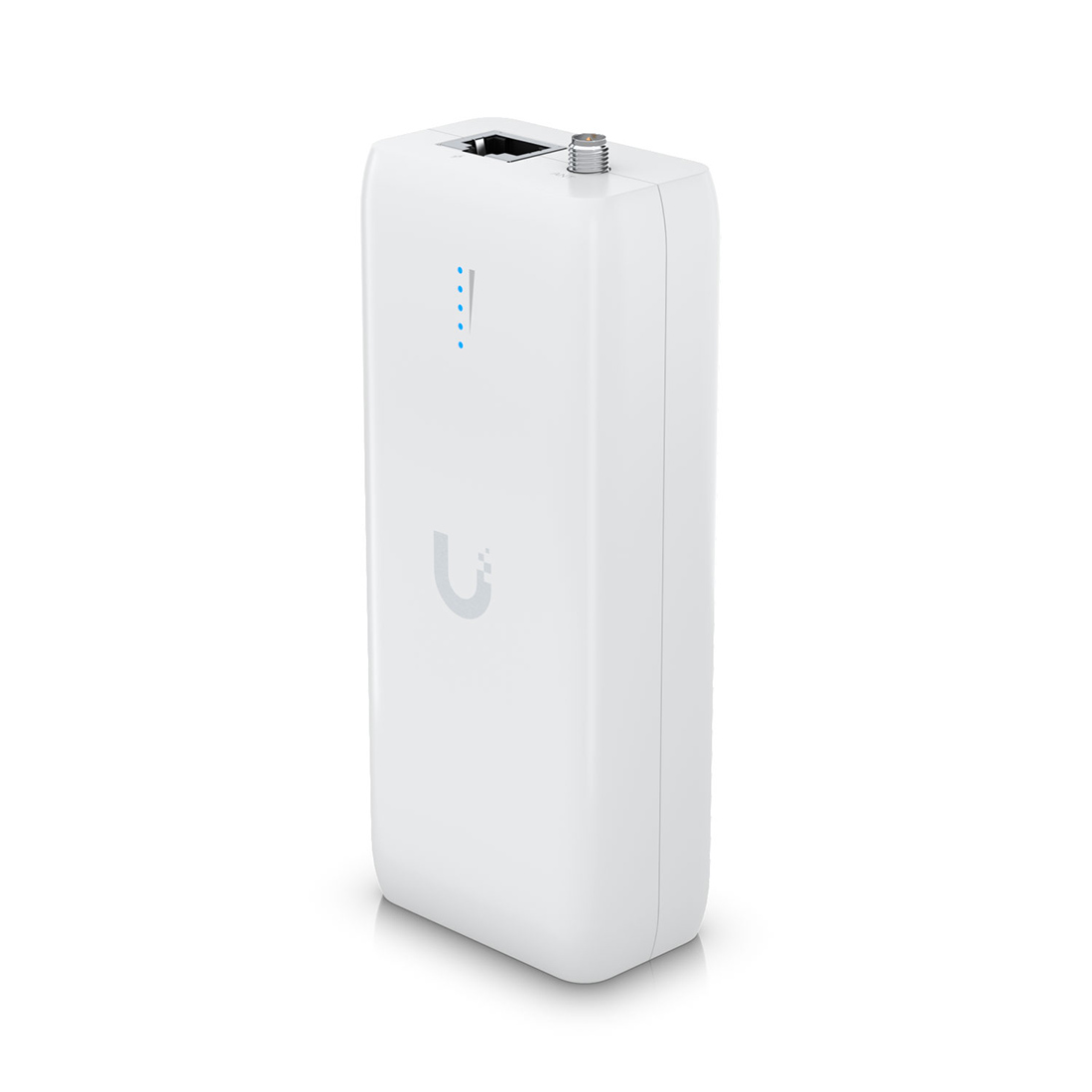

Ubiquiti Device Bridge PoE Adapter (UDB-US)

Ubiquiti Device Bridge PoE Adapter (UDB-US)
MSRP: $99.00
Manufacturer: Ubiquiti
SKU: UDB-US

Specs

  • WiFi Standard: WiFi 5
  • Spatial Streams: 2
  • Mounting Locations: Wall, table
  • Mounting: Wall (Included)
  • Power Method: 100—240V AC, 0.45A Max., 50/60 Hz
  • 5 GHz MIMO: 2 x 2
  • 5 GHz Max. Data Rate: 866.7 Mbps (BW80)
  • 5 GHz Antenna Gain: Internal: 5 dBi | External omni: 4 dBi, 360° x 30°
  • 5 GHz Max. TX Power: 21 dBm
  • Supported Data Rates: 802.11ac (WiFi 5) - 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) | 802.11n - 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) | 802.11a - 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • Wireless Security: WPA2 AES
  • Max. Power Consumption: 25W (AC input) | 10W (Excluding PoE output)
  • Supported Voltage Range: 100—240V AC
  • Networking Interface: (1) GbE RJ45 port
  • Antennas: (1) Internal antenna | (1) RP-SMA connector for external omni-antenna
  • Management: WiFi
  • Channel Bandwidth: 20/40/80 (MHz)
  • Enclosure Material: Polycarbonate
  • Mount Material: Polycarbonate
  • Button: (1) Factory-reset
  • NDAA Compliant
  • Certifications: CE, FCC, IC, Anatel: 03885-25-08356
  • Operating Frequency: US/CA: U-NII-1 5150 - 5250 MHz, U-NII-2A 5250 - 5350 MHz, U-NII-2C 5470 - 5725 MHz, U-NII-3 5725 - 5850 MHz | Worldwide: 5150 - 5875 MHz
  • Ambient Operating Temperature: -10 to 40° C (14 to 104° F)
  • Ambient Operating Humidity: 5 to 95% noncondensing

Dimensions

  • 5.1" x 2.2" x 1.3"
  • 7.1 oz
