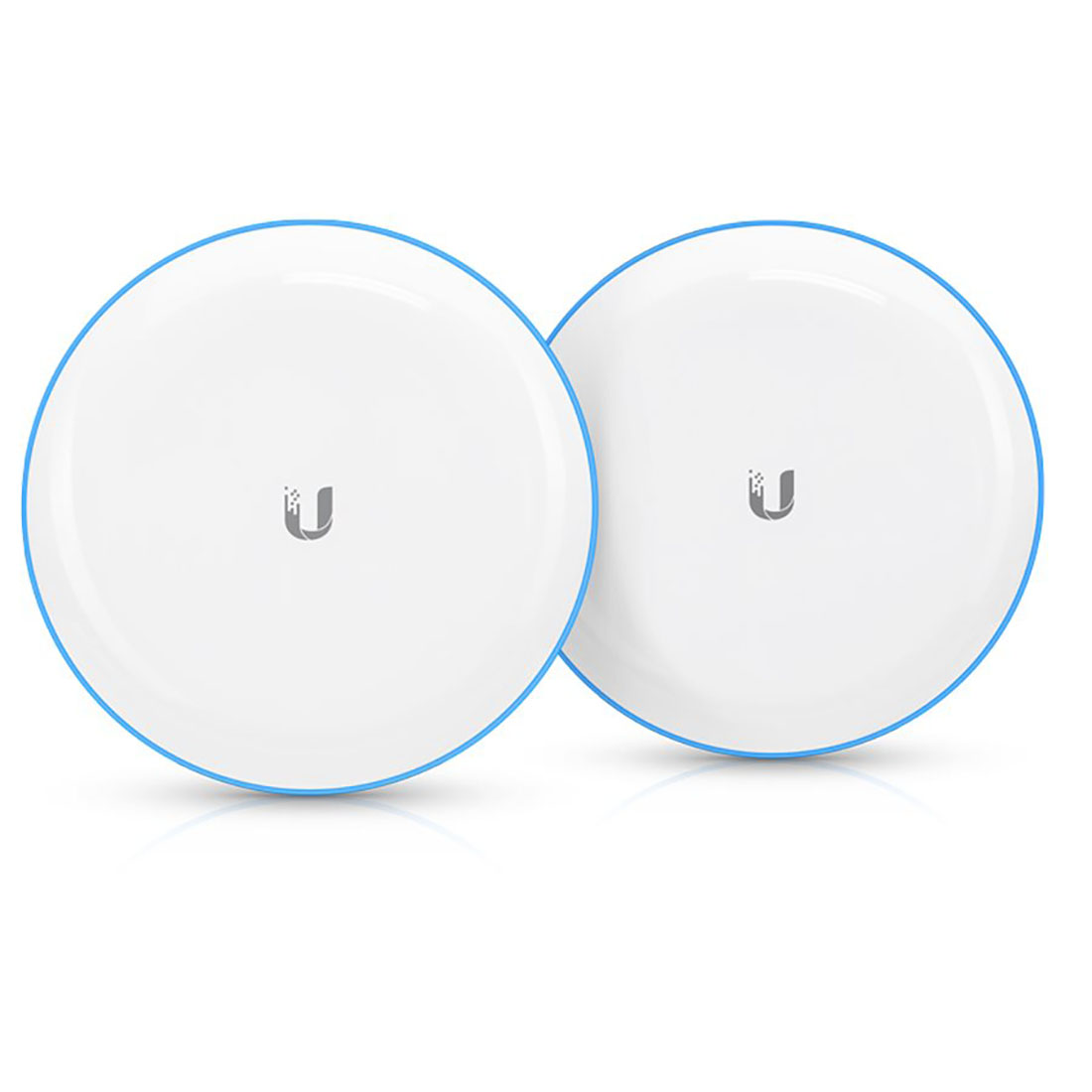

Ubiquiti 60/5GHz Building-to-Building Bridge Kit, 1Gbps+ (UBB-US)

Ubiquiti UniFi Building-to-Building Bridge gives custom integrators a wireless link for connecting two network locations without trenching cable. Dealers can use the 60 GHz bridge with 5 GHz backup for homes, businesses, cameras, and remote buildings.
MSRP: $499.00
Manufacturer: Ubiquiti
SKU: UBB-US

Overview

  • 60 GHz Gigabit+ Wireless Bridge Kit
  • Low-Interference 60 GHz Radio Band
  • 5 GHz Radio for Backup
  • Pre-Paired Radios for Quick Setup Using UniFi App
  • Dimensions: 140 x 140 x 90 mm (5.51 x 5.51 x 3.54")
  • Weight: 376 g (13.3 oz)
  • Antenna Gain
  • 2.4 GHz (BLE): 2dBi
  • 5 GHz: 10dBi
  • 60 GHz: 17.2dBi
  • GPS: Yes
  • Max. TX Power (EIRP)
  • 5 GHz: 25 dBm
  • 60 GHz: 32-36.5dBm
  • 60 GHz Elevation Beamwidth: 30°
  • 60 GHz Azimuthal Coverage: ±60°
  • Enclosure: UV-Resistant Polycarbonate
  • Power Method: 802.3af Supported Passive Power over Ethernet (48V)
  • Power Supply UniFi PoE Switch 48V, 0.32A Gigabit PoE Adapter (Included)
  • Max Power Consumption: 11W
  • Wind Loading: 56 N @ 200 km/h (12.6 lbf @ 125 mph)
  • Wind Survivability: 200 km/h (125 mph)
  • Mounting: Pole-Mount (Kit Included)
  • ESD/EMP Protection: ± 24kV Contact/Air
  • Operating Temperature: -40 to 60° C (-40 to 140° F)
  • Operating Humidity: 5 to 95% Noncondensing
  • Certifications: CE, FCC, IC
  • 2 Pack
