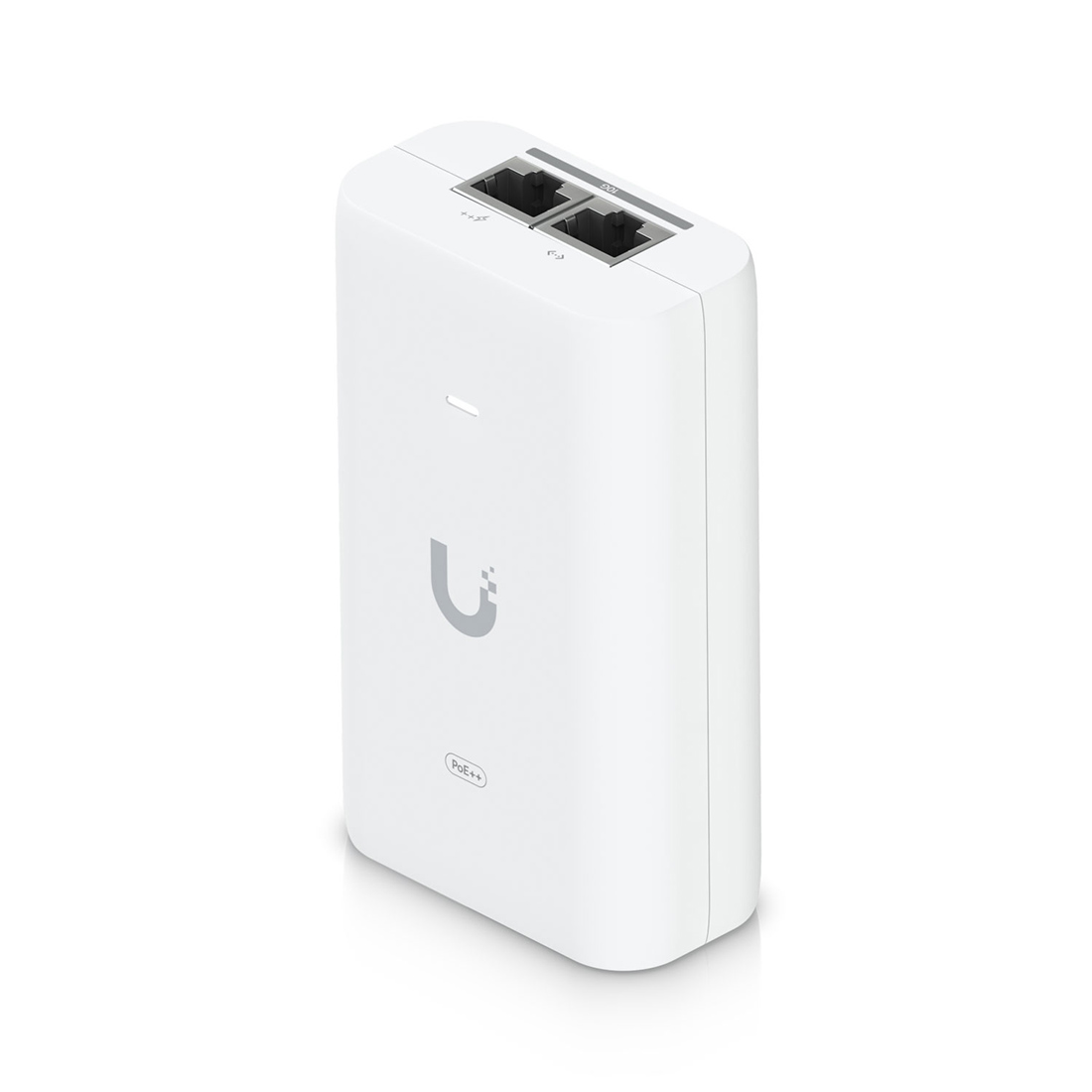

Ubiquiti 10G PoE++ Adapter 60W (UACC-PoE++-10G)

Ubiquiti 10G PoE++ Adapter 60W (UACC-PoE++-10G)
MSRP: $39.00
Manufacturer: Ubiquiti
SKU: UACC-POE++-10G

Specs

  • Output Voltage: 54V DC at 1.12A
  • Rated Voltage: 100—240V AC at 50/60Hz
  • Gigabit LAN Port
  • 4-pair Powering: Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
  • Clamping Protection: 11V Data, 60V power
  • Data In / PoE: RJ45 Shielded Socket
  • Input Current: 1.5A Max.
  • Inrush Current: <150A peak at 230V AC
  • Efficiency: >88%
  • Switching Frequency: 65 kHz
  • Output Ripple: 1% Max.
  • Line Regulation: ≤ 2%
  • Load Regulation: ≤ 5%
  • Max. PoE+ Wattage per Port by PSE: 60W
  • Max. Surge Discharge: 1500A (8/20 μs) power
  • Peak Pulse Current: 36A (10/1000 μs) data
  • Response Time: <1 ns
  • Shunt Capacitance: <5 pF data
  • Surge Protection: Difference and common mode
  • Ambient Storage Temperature: -30 to 70°C (-22 to 158° F)
  • Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
  • Ambient Operating Humidity: 10 to 95% noncondensing
  • NDAA Compliant
  • Certifications: CE, FCC, IC, UL, UKCA, KC, CCC, RoHS

Dimensions

  • 4.2" x 2.5" x 1.3"
  • 7.4 oz
