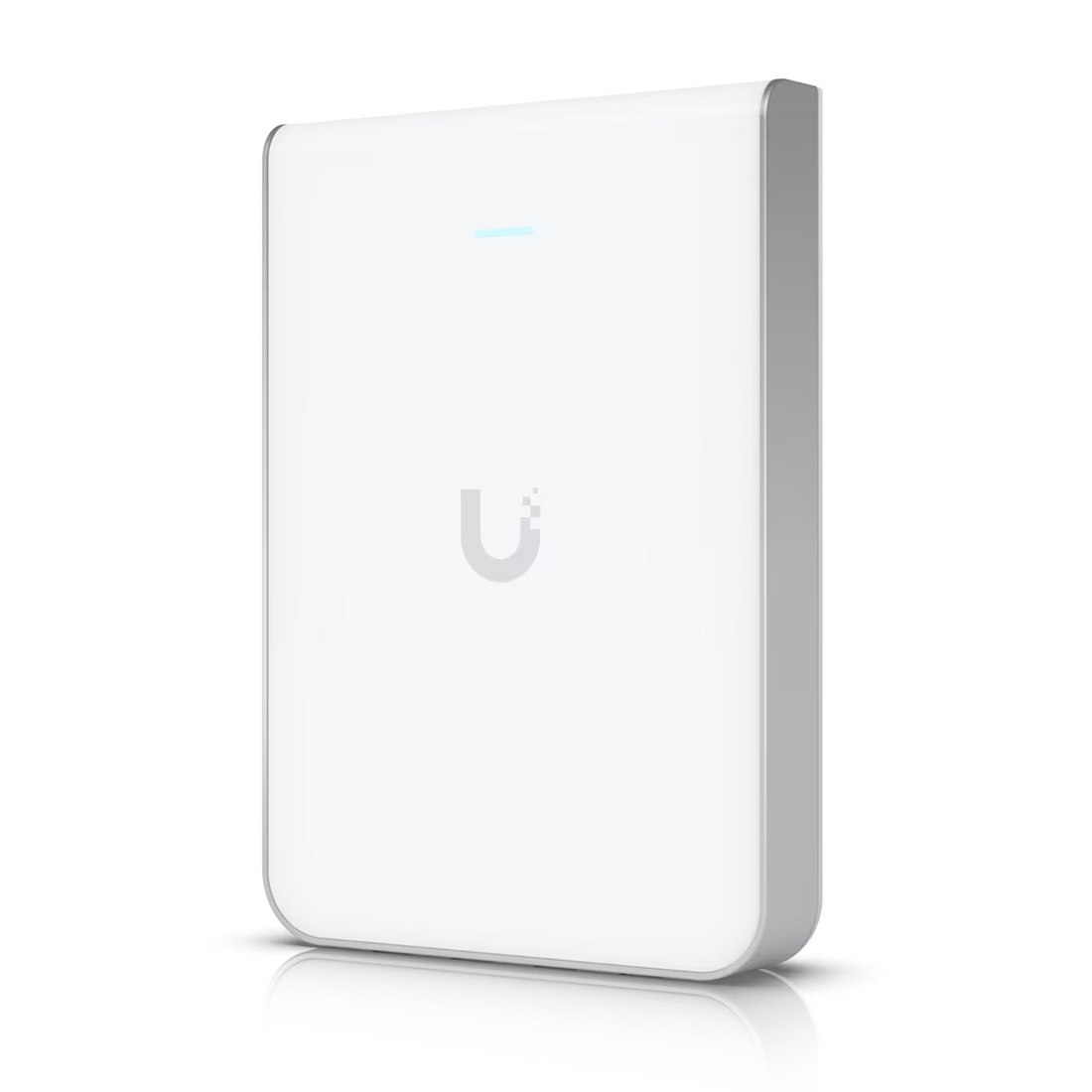

U6-IW-US Wall-mount WiFi6 AP w/ GbE POE switch

Ubiquiti U6 In-Wall UniFi Wi-Fi 6 access point adds single room wireless coverage plus wired network ports from a wall-mount form factor. Dealers can use it for hospitality, office, and residential installs where custom integrators need Wi-Fi and Ethernet together.
MSRP: $179.00
Manufacturer: Ubiquiti
SKU: U6-IW-US

Specs

  • WiFi Standard: WiFi 6
  • Spatial Streams: 6
  • Coverage Area: 115 m² (1,250 ft²)
  • Max. Client Count: 250+
  • Uplink: GbE
  • Mounting: Wall (Mount Included)
  • Power Method: PoE, PoE+ (Required for PoE output)
  • MIMO: 5 GHz - 4 x 4 (DL/UL MU-MIMO) | 2.4 GHz - 2 x 2 (DL/UL MU-MIMO)
  • Max. Data Rate: 5 GHz - 4.8 Gbps (BW160) | 2.4 GHz - 573.5 Mbps (BW40)
  • Antenna Gain: 5 GHz - 5.9 dBi | 2.4 GHz - 5 dBi
  • Max. TX Power: 5 GHz - 26 dBm | 2.4 GHz - 22 dBm
  • Max. BSSIDs: 8 per Radio
  • Supported Data Rates: 802.11ax (WiFi 6) - 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) | 802.11ac (WiFi 5) - 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) | 802.11n - 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
  • Captive Hotspot Portal: Custom Branding Landing Page, Voucher Authentication, Payment-Based Authentication, External Portal Server Support, Password Authentication, Guest Network Isolation
  • Max. Power Consumption: 13W (Excluding PoE output)
  • Networking Interface: (1) Data-in: GbE RJ45 port, (4) Data-out: GbE RJ45 ports
  • Management: Ethernet, Bluetooth
  • Built-In Switch: (4) GbE ports with (1) PoE output
  • Enclosure Material: Plastic, aluminum
  • Mount Material: Aluminum
  • Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz)
  • NDAA Compliant
  • Certifications: CE, FCC, IC, SRRC, Anatel: 11546-22-08356
  • Operating Frequency: US/CA - 2400 - 2472 MHz, U-NII-1: 5150 - 5250 MHz, U-NII-2A: 5250 - 5350 MHz, U-NII-2C: 5470 - 5725 MHz, U-NII-3: 5725 - 5850 MHz | Worldwide - 2400 - 2483.5 MHz, 5150 - 5725 MHz
  • Ambient Operating Temperature: -30 to 60° C (-22 to 140° F)
  • Ambient Operating Humidity: 5 to 95% noncondensing

Dimensions

  • 5.5" x 3.8" x 1.3"
  • 1 lb
