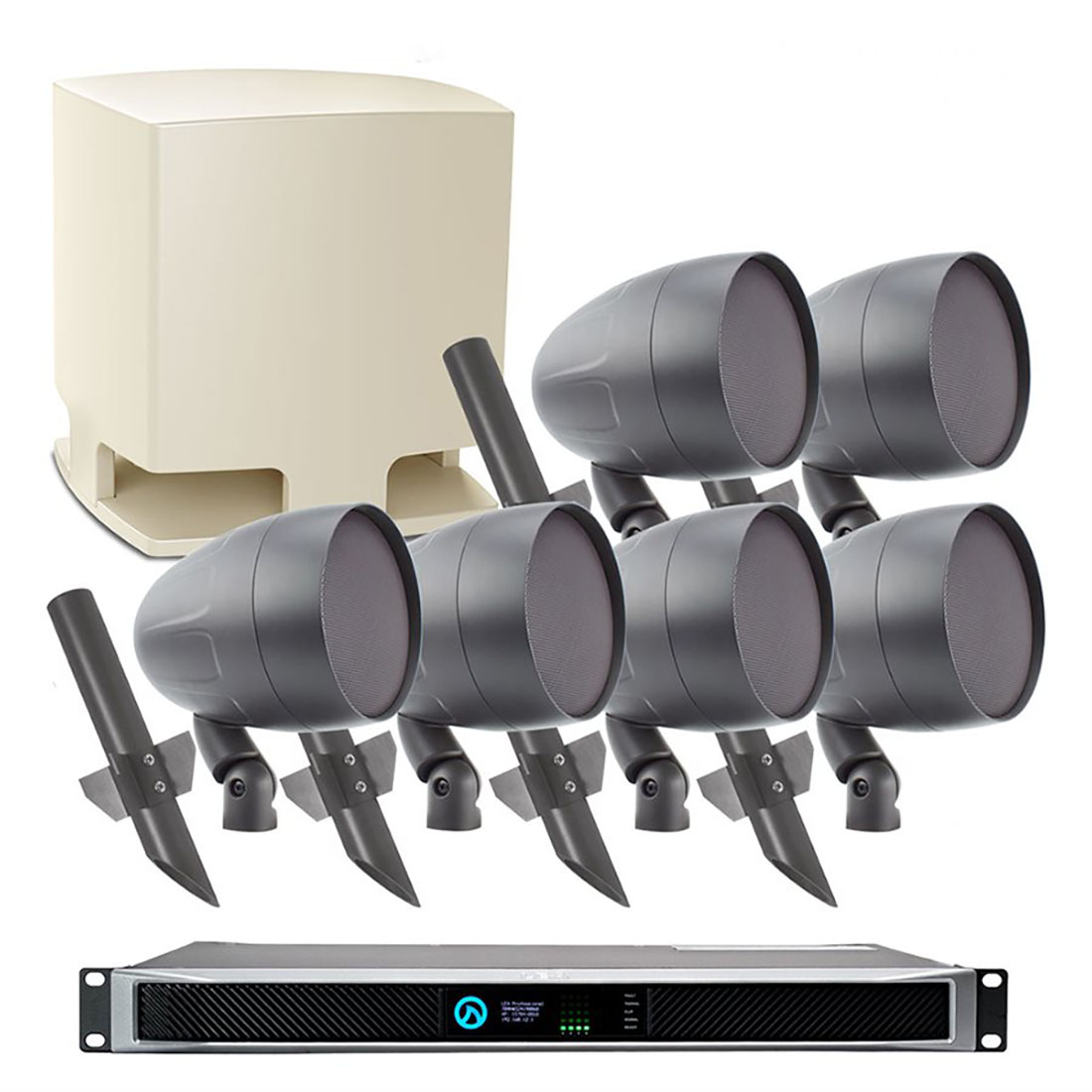

TruAudio HS Sub, 6 Landscape Spkrs, and Amp Pkg, incl. LEA-C

TruAudio HS Sub, 6 Landscape Spkrs, and Amp Pkg, incl. LEA-C
MSRP: $9958.00
Manufacturer: TruAudio
SKU: HS12TN-PAKLEA-AS1-6

Specs

  • HS-SUB-12TN
    • Color: Tan
    • Frequency Response: 36-150Hz
    • 70V Taps: 200 watts
    • Speaker Type: Outdoor Subwoofer
    • Driver: 12" polypropylene
    • Power: 400 watts
    • Impedance: 4 Ω or 70V
    • Sensitivity: 90 dB
  • AS-1
    • Color: Brown
    • Speaker Type: 2 way outdoor landscape speaker
    • Tweeter: 0.75" Silk soft dome
    • Midrange: None
    • Woofer: 4.5” Molded polypropylene
    • EQ Adjustment: None
    • Power: 30 watts
    • Grill Type: Aluminum mesh
    • Sensitivity: 85 dB (2.83 volts /1 meter, +3dB)
    • Frequency Response: 80 - 20K Hz. (+/-3 dB)
    • Impedance: 8Ω and 70v
    • 70V TAPS: 3W-30W selectable
    • 100V TAPS: 6W-30W selectable
  • LEA-CONNECT352
    • Output Power: 2 x 350 WRMS Per Channel @ 4Ω, 8Ω, 70V, 100V (175W at 2Ω) | 230 Watts @ 25V
    • Inputs: 4 Analog: Balanced Inputs with user selectable 26 dB and 34 dB input sensitivity
    • THD+N: 0.1% (20Hz to 20kHz)
    • Frequency Response: +/- 0.5 dB @ 4Ω, 8Ω, 70V, 100V, -2.5dB @ 20kHz at 2Ω
    • Signal to Noise Level: 105dB (20Hz to 20kHz referenced to 8Ω)
    • Crosstalk: 70dB (20Hz to 20kHz)
    • I/O Latency: 1 ms DSP latency under any condition
    • Load Impedance: LowZ down to 2 ohms, 70V direct, and 100V Direct per channel
    • Output Classification: Class D with Proprietary Smart Power Bridge Technology allowing bridged output functionality without sacrificing an amplifier channel
    • DSP Architecture: Analog Devices Sigma 96kHz DSP Processor with 32-bit Core with Sample Rate Converters
    • Input Matrix: Routable matrix; any input to any output with primary and secondary input priority
    • Crossovers: Up to 48 dB/Octave IIR Filters (Linkwitz Riley and Butterworth) and Bessel
    • Parametric EQ: 8 Band Parametric EQ per channel
    • Output Delay: 100ms per channel
    • Output Protection: DC, VHF, and AC Mains Protection, Over-temp and Current Limiter, fan fault detection
    • Network Connectivity: Wi-Fi or 100MB Ethernet with PoE or Built in Wi-Fi Access Point (IEEE 802.11 b/g/n WPA, WPA2, WEP)
    • Operating Systems: MAC, iOS, PC, Android

Dimensions

  • HS-SUB-12TN
    • 16.5" x 15.6" x 15.6"
  • AS-1
    • Diameter: 6.9"
    • Height: 5.4"
  • LEA-CONNECT325
    • 14.25” x 19” x 1U
