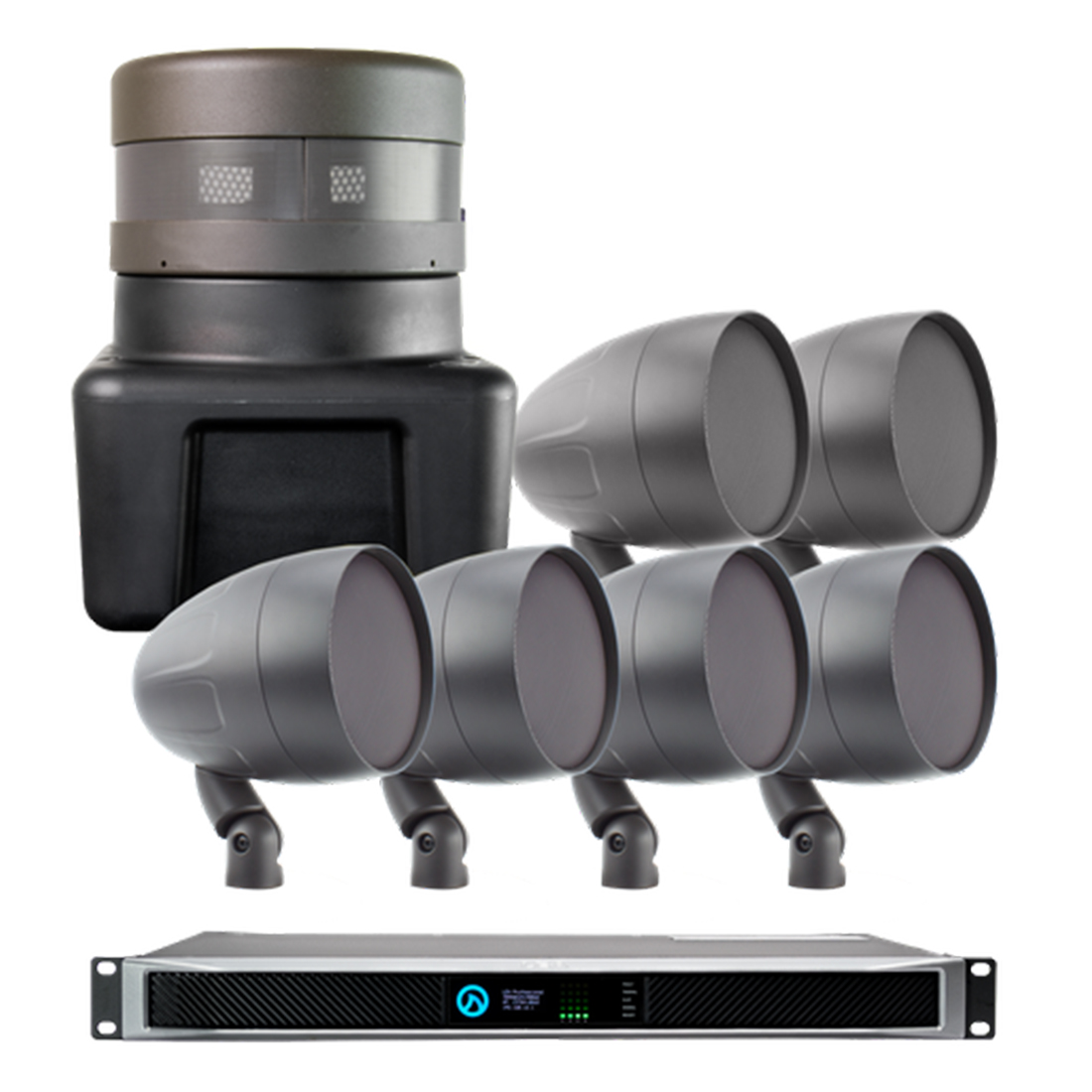

TruAudio 12" Subwoofer, (6) 8" Landscape Speakers, and (1) LEA Amplifier


MSRP: $14637.00
Manufacturer: TruAudio
SKU: SUBT12-PAKLEA-AS3-6

Features

  • (6) AS-3
  • (1) ST-12PRO
  • (1) LEA Connect 702 Amplifier

Specs

  • AS-3
    • Mounting: Ground stake or optional wall mount
    • Speaker Type: Landscape outdoor, 2-way
    • Tweeter: 1" Silk soft dome
    • Woofer: 8" molded polypropylene
    • Power: 64 W
    • Grill Type: Aluminum mesh
    • Sensitivity: 88 dB
    • Frequency Response: 40 - 120kHz (+/- 3dB)
    • Impedance: 8Ω or 70V/100V
    • 70V TAPS: 4, 8 ,16, 32, 64 W
    • 100V TAPS: 8 - 64 W selectable
  • ST-12PRO
    • SPL: 110 dB
    • Speaker Type: Underground Subwoofer
    • Woofer: 12" Injected Polypropylene
    • Power: 400 watts
    • Grill Type: Fiberglass reinforced plastic
    • Sensitivity: 89 dB
    • Frequency Response: 30Hz - 120Hz
    • Impedance: 4 ohm/70v
    • 70v Taps: 200W
  • LEA-CONNECT702
    • Output Power: 2 x 700 WRMS @ 4Ω, 8Ω, 70V, 100V (350W at 2Ω)
    • Frequency Response: +/- 0.5 dB @ 4Ω, 8Ω, 70V, 100V, -2.5dB @ 20kHz at 2Ω
    • Signal to Noise Level: 105dB (20Hz to 20kHz referenced to 8Ω)
    • Crosstalk: 70dB (20Hz to 20kHz)
    • I/O Latency: 1 ms DSP latency under any condition
    • Load Impedance: LowZ down to 2 ohms, 70V direct, and 100V Direct per channel
    • Amplifier Output Classification: Class D with Proprietary Smart Power Bridge Technology allowing bridged output functionality without sacrificing an amplifier channel DSP Architecture: Analog Devices
    • Sigma 96kHz DSP Processor with 32-bit Core with Sample Rate Converters
    • Input Matrix: Routable matrix; any input to any output with primary and secondary input priority
    • Crossovers: Up to 48 dB/Octave IIR Filters (Linkwitz Riley and Butterworth)
    • Parametric EQ: 8 Band Parametric EQ per channel
    • Output Delay: 100ms per channel
    • Network Connectivity: WiFi or 100MB Ethernet with PoE or Built in WiFi Access Point (IEEE 802.11b/g/n WPA, WAP2, WEP) Operating Frequency: 2412 – 2472MHz ; Channel Spacing:5Mhz ; Modulation: DSSS, OFDM

Dimensions

  • AS-3
    • Diameter: 8.5"
    • Height: 10"
  • ST-12PRO
    • 17.2” x 17.2” x 19.8”
  • LEA-CONNECT702
    • 14.25” x 19” x 1U

Features

  • (6) AS-3
  • (1) ST-12PRO
  • (1) LEA Connect 702 Amplifier
