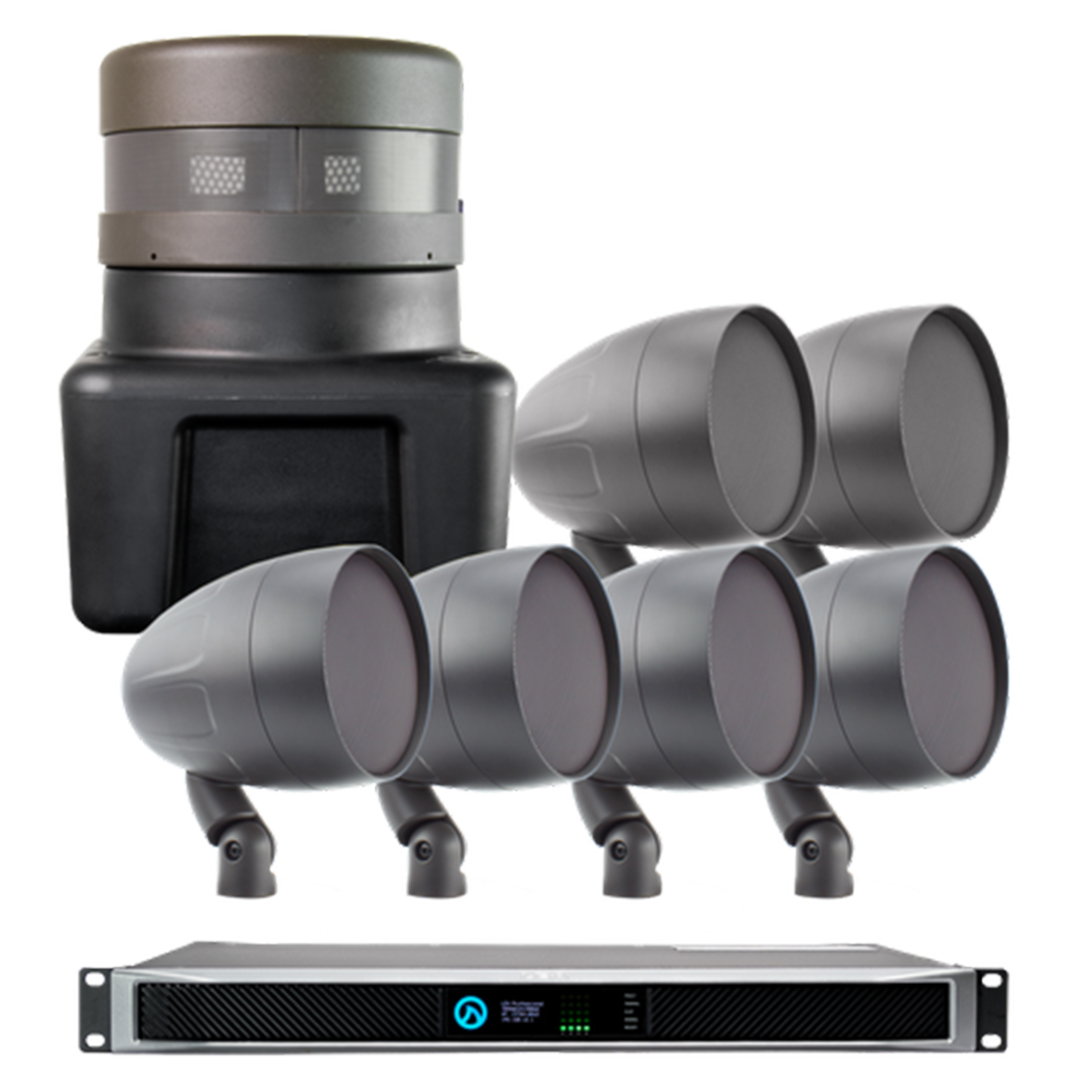

TruAudio 10" Subwoofer, (6) 4.5" Landscape Speakers, and (1) LEA Amplifier

MSRP: $8015.00
Manufacturer: TruAudio
SKU: SUBT-PAKLEA-AS1-6

Features

  • ST-10PRO
    • Sealed design
    • Seamless waterproof enclosure
    • Woofer is positioned on top of the chamber to allow serviceability without having to dig up the entire subwoofer
    • Built-in handles anchor points
    • 40% smaller footprint makes for easy installation
  • AS-1
    • The Acoustiscape - sports a 4.5" polypropylene woofer and 0.75" silk soft dome tweeter housed in a stylish, non-corrosive sealed enclosure. With its unique mounting design and wide range of motion, you can position the sound exactly where you want it to go. Transfers from 100 volt or 70 volt to 8Ω with a simple switch. The Acoustiscape also comes complete with 14'' (355mm) industrial grade, metal ground stake and optional wall mounting bracket.
  • LEA-CONNECT352
    • Web Browser-based UI works on any device with no software to download
    • Direct LoZ and HiZ (70V or 100V) selectable per channel
    • Proprietary Smart Power Bridge allows user to bridge a channel to achieve double the power of that channel without sacrificing an amplifier channel
    • 3 Ways to Connect 1.) Built in WiFi Access Point 2.) Connects to existing WiFi network 3.) Local Area Network Ethernet connection
    • 96kHz Analog Devices DSP with Input Routing, multiple 48dB/Oct crossover filters, 8 Parametric EQ filters, user configurable speaker limiters, and real time load monitoring
    • Universal Switch Mode Power Supply with PFC. Operation from 100VAC – 240VAC +/-15%
    • Analog fully routable inputs
    • External I/O Port for Remote On/Off and fault monitoring
    • Highly Efficient Class D Output Stage for low AC Current draw

What's in the Box

  • 1 x ST-10PRO 10" Underground PRO Series Subwoofer 250W
  • 6 x AS-1 4.5" Outdoor Landscape Speakers
  • 1x LEA-CONNECT352 LEA Connect Series 352 2-Channel Amplifier 350w 70v

Specs

  • ST-10PRO
    • SPL: 101 dB
    • Speaker Type: Underground Subwoofer
    • Woofer: 10" Injected Polypropylene
    • Power: 250 watts
    • Grill Type: Fiberglass reinforced plastic
    • Sensitivity: 88 dB
    • Frequency Response: 38Hz - 120Hz
    • Impedance: 4 ohm
    • 70v Taps: n/a
  • AS-1
    • Color: Brown
    • Speaker Type: 2 way outdoor landscape speaker
    • Tweeter: 0.75" Silk soft dome
    • Midrange: None
    • Woofer: 4.5” Molded polypropylene
    • EQ Adjustment: None
    • Power: 30 watts
    • Grill Type: Aluminum mesh
    • Sensitivity: 85 dB (2.83 volts /1 meter, +3dB)
    • Frequency Response: 80 - 20K Hz. (+/-3 dB)
    • Impedance: 8Ω and 70v
    • Finish Dimensions: Height: 5.4" (137mm) x Diameter: 6.9" (175mm)
    • 70V TAPS: 3W-30W selectable
    • 100V TAPS: 6W-30W selectable
  • LEA-CONNECT352
    • Output Power: 2 x 350 WRMS Per Channel @ 4Ω, 8Ω, 70V, 100V (175W at 2Ω) | 230 Watts @ 25V
    • Inputs: 4 Analog: Balanced Inputs with user selectable 26 dB and 34 dB input sensitivity
    • THD+N: 0.1% (20Hz to 20kHz)
    • Frequency Response: +/- 0.5 dB @ 4Ω, 8Ω, 70V, 100V, -2.5dB @ 20kHz at 2Ω
    • Signal to Noise Level: 105dB (20Hz to 20kHz referenced to 8Ω)
    • Crosstalk: 70dB (20Hz to 20kHz)
    • I/O Latency: 1 ms DSP latency under any condition
    • Load Impedance: LowZ down to 2 ohms, 70V direct, and 100V Direct per channel
    • Output Classification: Class D with Proprietary Smart Power Bridge Technology allowing bridged output functionality without sacrificing an amplifier channel
    • DSP Architecture: Analog Devices Sigma 96kHz DSP Processor with 32-bit Core with Sample Rate Converters
    • Input Matrix: Routable matrix; any input to any output with primary and secondary input priority
    • Crossovers: Up to 48 dB/Octave IIR Filters (Linkwitz Riley and Butterworth) and Bessel
    • Parametric EQ: 8 Band Parametric EQ per channel
    • Output Delay: 100ms per channel
    • Output Protection: DC, VHF, and AC Mains Protection, Over-temp and Current Limiter, fan fault detection
    • Network Connectivity: Wi-Fi or 100MB Ethernet with PoE or Built in Wi-Fi Access Point (IEEE 802.11 b/g/n WPA, WPA2, WEP)
    • Operating Systems: MAC, iOS, PC, Android

Dimensions

  • ST-10PRO
    • 15.2” x 15.2” x 19.8” (with port)
  • AS-1
    • Tweeter: 0.75"
    • Woofer: 4.5”
  • LEA-CONNECT352
    • 14.25” x 19” x 1U
    • 12.1 lb
