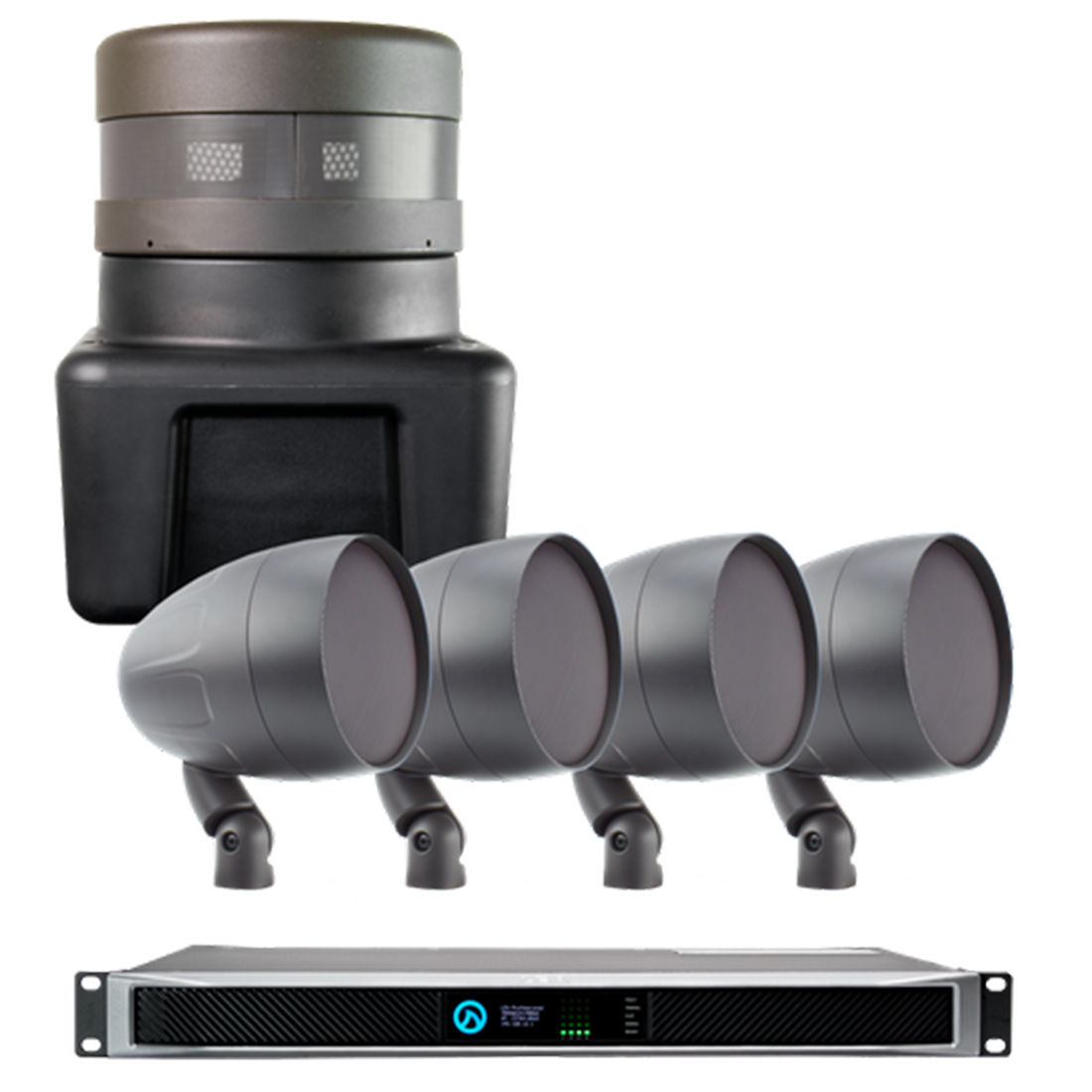

TruAudio 10" Sub, (4) 4.5" Landscape Speakers, and (1) LEA Amplifier


MSRP: $6755.00
Manufacturer: TruAudio
SKU: SUBT-PAKLEA-AS1-4

Features

ST-10PRO

  • Sealed design
  • Seamless waterproof enclosure
  • Woofer is positioned on top of the chamber to allow serviceability without having to dig up the entire subwoofer
  • Built-in handles anchor points
  • 40% smaller footprint makes for easy installation

AS-1

  • The Acoustiscape - sports a 4.5" polypropylene woofer and 0.75" silk soft dome tweeter housed in a stylish, non-corrosive sealed enclosure. With its unique mounting design and wide range of motion, you can position the sound exactly where you want it to go. Transfers from 100 volt or 70 volt to 8Ω with a simple switch. The Acoustiscape also comes complete with 14'' (355mm) industrial grade, metal ground stake and optional wall mounting bracket.

LEA-CONNECT352

  • Web Browser-based UI works on any device with no software to download
  • Direct LoZ and HiZ (70V or 100V) selectable per channel
  • Proprietary Smart Power Bridge allows user to bridge a channel to achieve double the power of that channel without sacrificing an amplifier channel
  • 3 Ways to Connect 1.) Built in WiFi Access Point 2.) Connects to existing WiFi network 3.) Local Area Network Ethernet connection
  • 96kHz Analog Devices DSP with Input Routing, multiple 48dB/Oct crossover filters, 8 Parametric EQ filters, user configurable speaker limiters, and real time load monitoring
  • Universal Switch Mode Power Supply with PFC. Operation from 100VAC – 240VAC +/-15%
  • Analog fully routable inputs
  • External I/O Port for Remote On/Off and fault monitoring
  • Highly Efficient Class D Output Stage for low AC Current draw

What's in the Kit

  • 1 x ST-10PRO 10" Underground PRO Series Subwoofer 250W
  • 4 x AS-1 4.5" Outdoor Landscape Speakers
  • 1x LEA-CONNECT352 LEA Connect Series 352 2-Channel Amplifier 350w 70v


ST-10PRO

Specs

SPL 101 dB
Speaker Type Underground Subwoofer
Woofer 10" Injected Polypropylene
Power 250 watts
Grill Type Fiberglass reinforced plastic
Sensitivity 88 dB
Frequency Response 38Hz - 120Hz
Impedance 4 ohm
70v Taps n/a



Dimensions

LxWxH 15.2” x 15.2” x 19.8” (with port)

AS-1

Specs

Color Brown
Speaker Type 2 way outdoor landscape speaker
Tweeter 0.75" Silk soft dome
Midrange None
Woofer 4.5” Molded polypropylene
EQ Adjustment None
Power 30 watts
Grill Type Aluminum mesh
Sensitivity 85 dB (2.83 volts /1 meter, +3dB)
Frequency Response 80 - 20K Hz. (+/-3 dB)
Impedance 8Ω and 70v
70V TAPS 3W-30W selectable
100V TAPS 6W-30W selectable



Dimensions

Tweeter 0.75"
Woofer 4.5"

LEA-CONNECT352

Specs

Output Power 2 x 350 WRMS Per Channel @ 4Ω, 8Ω, 70V, 100V (175W at 2Ω) | 230 Watts @ 25V
Inputs 4 Analog: Balanced Inputs with user selectable 26 dB and 34 dB input sensitivity
THD+N 0.1% (20Hz to 20kHz)
Frequency Response +/- 0.5 dB @ 4Ω, 8Ω, 70V, 100V, -2.5dB @ 20kHz at 2Ω
Signal to Noise Level 105dB (20Hz to 20kHz referenced to 8Ω)
Crosstalk 70dB (20Hz to 20kHz)
I/O Latency 1 ms DSP latency under any condition
Load Impedance LowZ down to 2 ohms, 70V direct, and 100V Direct per channel
Output Classification Class D with Proprietary Smart Power Bridge Technology allowing bridged output functionality without sacrificing an amplifier channel
DSP Architecture Analog Devices Sigma 96kHz DSP Processor with 32-bit Core with Sample Rate Converters
Input Matrix Routable matrix; any input to any output with primary and secondary input priority
Crossovers Up to 48 dB/Octave IIR Filters (Linkwitz Riley and Butterworth) and Bessel
Parametric EQ 8 Band Parametric EQ per channel
Output Delay 100ms per channel
Output Protection DC, VHF, and AC Mains Protection, Over-temp and Current Limiter, fan fault detection
Network Connectivity Wi-Fi or 100MB Ethernet with PoE or Built in Wi-Fi Access Point (IEEE 802.11 b/g/n WPA, WPA2, WEP)
Operating Systems MAC, iOS, PC, Android



Dimensions

Size 14.25” x 19” x 1U
Weight 12.1 lbs
