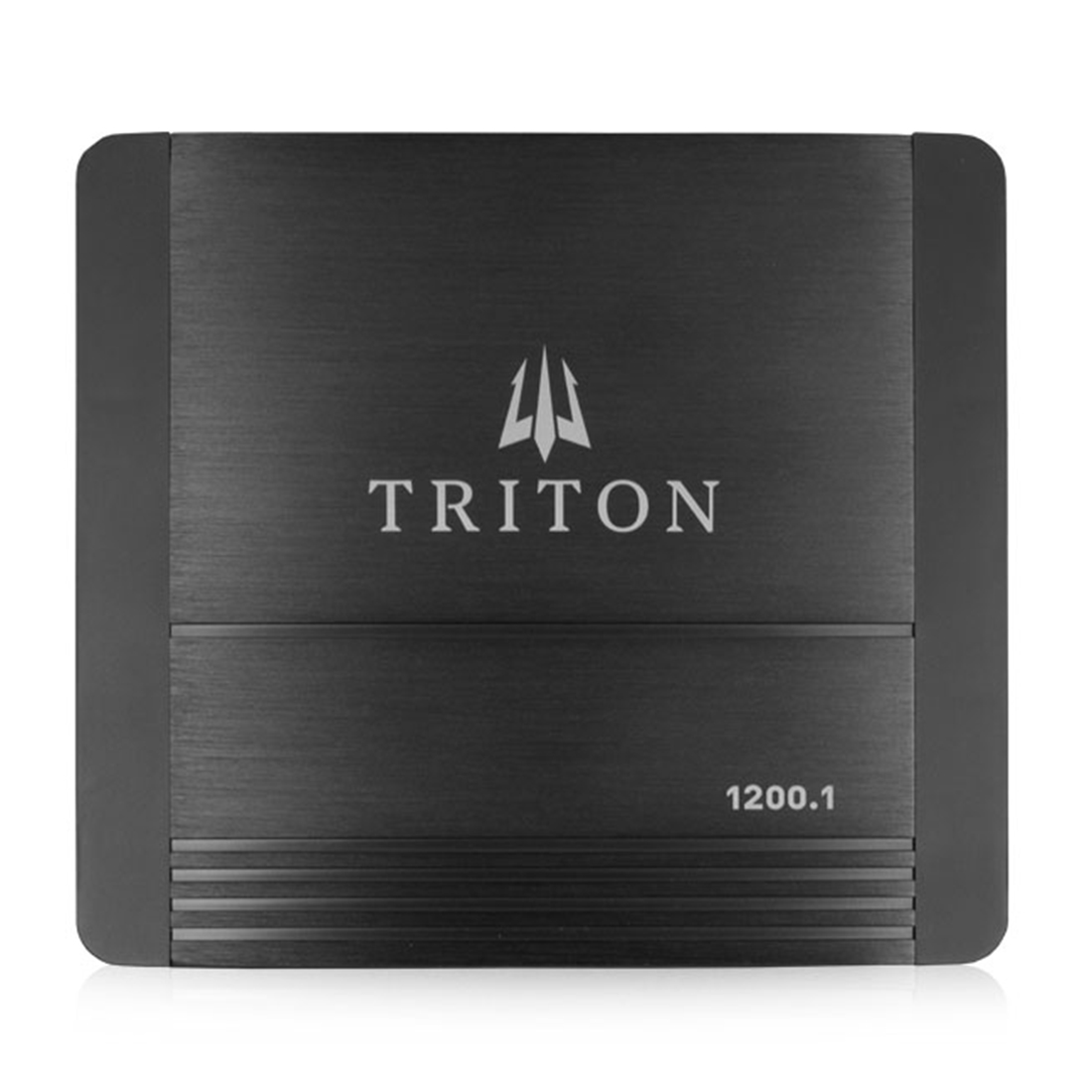

Triton Audio 1x1200W Mono Class D Amplifier 1-Ohm

The Triton Audio SQ120011 is a high-performance 1x1200W Mono Class D Amplifier engineered for professional-grade car audio systems.This compact full-range monoblock delivers incredible power stability down to 1 ohm, making it the perfect choice to drive heavy-duty subwoofers without sacrificing valuable cabin space.\
MSRP: $429.95
Manufacturer: Triton Audio
SKU: SQ120011

Features

  • 1200 Watts RMS Power
  • One Channel
  • 1 Ohm Impedance
  • D Class

Specs

Power RMS 1Ω @ 14.4V 1 x 1200W
Power RMS 2Ω @ 14.4V 1 x 660W
Power RMS 4Ω @ 14.4V 1 x 363W
THD+N @ Nominal Power 0.1%
Frequency Response 10Hz ~ 30kHz
SNR 99dB
Input Sensitivity 0.5V to 8V
Damping Factor >1000
Operating Voltage 9V to 16V
High Pass Filter 5Hz to 80Hz
Low Pass Filter 50Hz to 500Hz
Total Efficiency 75%
Max Current Draw 127 A
Music Current Draw 63 A



Dimensions

WxLxH 7.875" x 7.25" x 2.125"



Product Files
SPEC SHEETS
MANUALS

Features

  • 1200 Watts RMS Power
  • One Channel
  • 1 Ohm Impedance
  • D Class

Customers who bought this item also bought
Picture of Metra Universal Marine Antenna

Metra Universal Marine Antenna

44-ANT90M
Metra Universal Marine Antenna
MSRP: $12.99
Picture of Audiovox Mini License Plate Mount Camera with Dynamic Parking Lines

Audiovox Mini License Plate Mount Camera with Dynamic Parking Lines

ACA801
Audiovox Mini License Plate Mount Camera with Dynamic Parking Lines
MSRP: $119.99
Picture of RDV Wireless CarPlay and Android Auto Adapter

RDV Wireless CarPlay and Android Auto Adapter

AC-W
Simply and easily convert CarPlay to Wireless CarPlay or Android Auto to Wireless Android Auto just by plugging in a USB adapter to your OEM USB hub.
MSRP: $75.00
Picture of JVC 6.8" Digital Multimedia Receiver, 1DIN Short Chassis

JVC 6.8" Digital Multimedia Receiver, 1DIN Short Chassis

KW-M595BT
Digital Media Receiver featuring 6.8" Capacitive Touch Monitor / Apple CarPlay® / Android Auto™ / USB Mirroring / iDatalink Maestro Ready / SiriusXM Ready / Bluetooth® / 13-Band EQ / Short Chassis
MSRP: $429.00

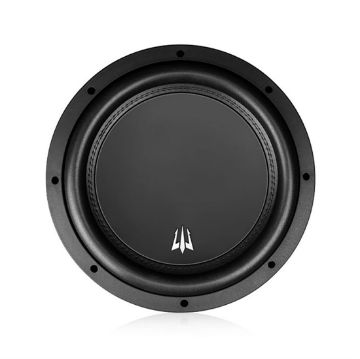

Picture of Triton Audio SX 12" Subwoofer 800W RMS 1600W peak 2ohm DVC 1

Triton Audio SX 12" Subwoofer 800W RMS 1600W peak 2ohm DVC 1

SX12D2
Triton Audio’s new dual stacked magnet subwoofers were designed to deliver optimal performance and incredible bass output.
MSRP: $349.95
Picture of Memphis Audio Power Reference Series 6.5" 2-Way Coaxial Speakers with Swivel Tweeters - Pair

Memphis Audio Power Reference Series 6.5" 2-Way Coaxial Speakers with Swivel Tweeters - Pair

PRX602
Power Reference speakers represent an amazing blend of performance and reliability. The warm rich sound combined with a variety of sizes make PR speakers the perfect upgrade for most factory systems.
MSRP: $129.95

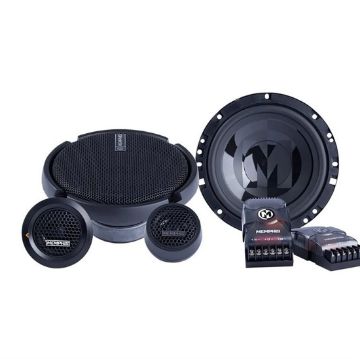

Picture of Memphis Audio Power Reference Series 6.5" Oversize Component Speakers with 1" Tweeters - Pair
