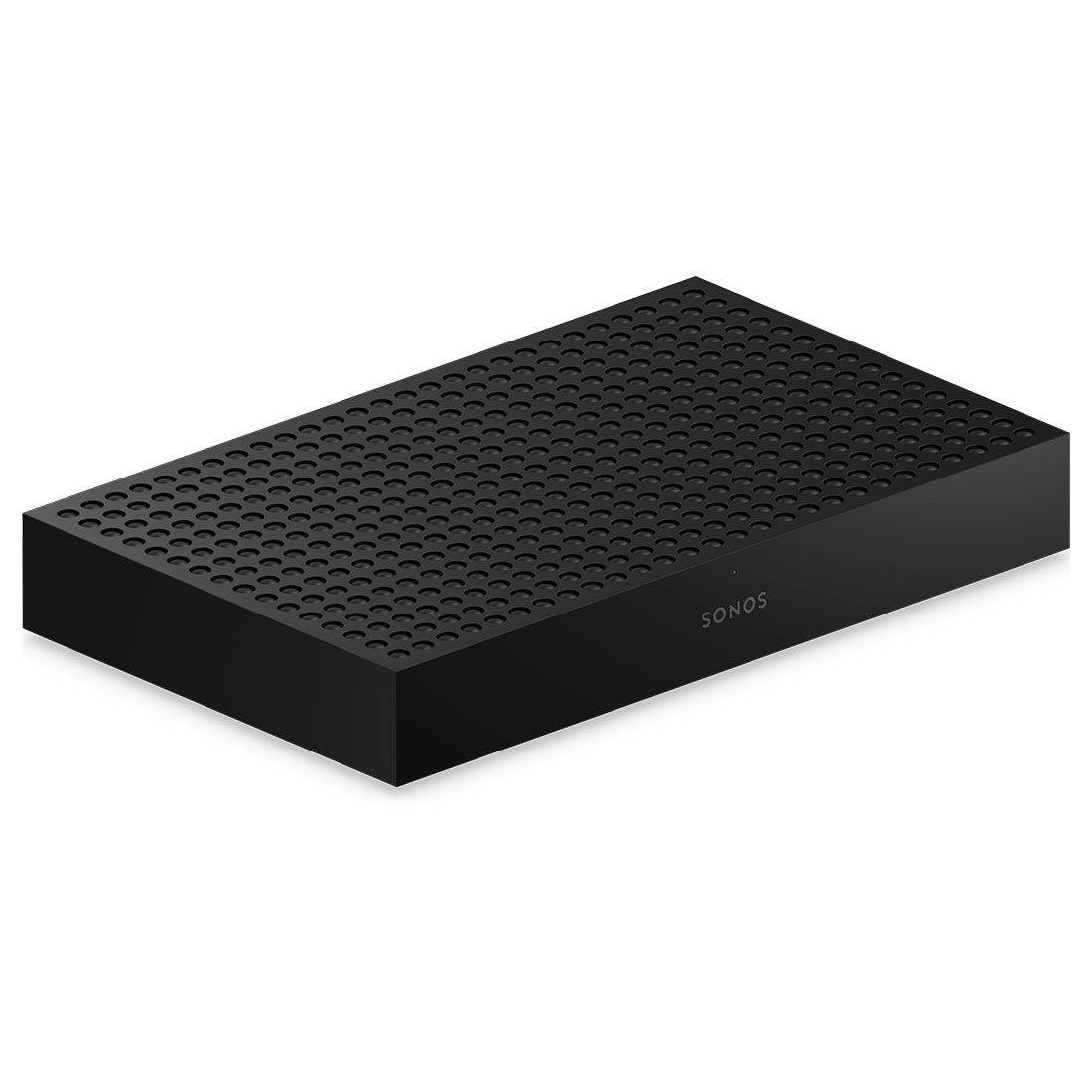

Sonos Amp Multi 4 Zone 8-Channel 125W Amplifier (Black)

Advanced GaN technology, Class D amplification, and post-filter feedback (PFFB) deliver exceptional audio quality with high efficiency. Its textured, thermally-optimized chassis enhances performance and durability all within a compact design built for the rack.
MSRP: $3500.00
Manufacturer: Sonos
SKU: AMPLTIUS1BLK

Features

  • Precision-built for professionals: Backed by thousands of hours of research and engineering, Amp Multi was built from the ground up to streamline professional installation at every stage. It’s designed to support your workflows and help you deliver bespoke audio experiences with precision and efficiency.
  • Multi-zone flexibility: Each output can be assigned to any zone, giving you complete flexibility in system design. Users can easily change audio sources and content, ensuring a seamless, consistent experience.
  • Manually tune each output: With ProTune, you can optimize the sound for the placement and room acoustics of any low-impadance passive speakers. This feature offers a comprehensive set of manual controls, including a 10-band parametric EQ and adjustable gain and delay offsets.
  • Intuitive configuration: An audible chirp identifies each unit in the Sonos app -- no PIN required. Front and rear LEDs indicate setup mode for a more seamless experience.
  • Intelligent Indicators: Speaker outputs automatically detect when a speaker is connected, while status LEDs provide real-time feedback during setup. Ambient light sensing adjusts brightness to the enviroment, and all indicators are configurable in the app.
  • Power more speakers: Select the feature Optomize Sonos Speakers in the Sonos app to unlock the ability to power up to three Sonos Architechtural speakers per output (24 total). The custom DSP optimizes the EQ, while limiter control enables even and consistent volume dynamics throughout the frequency range.
  • Flexible connectivity: Connect via wired Ethernet or WiFi 6 and stream up to four audio sorces simultaneously using the Sonos app, Apple AirPlay 2, or Spotify Connect. Analog and USB inputs provide additional flexibility, and the subwoofer output is freely assignable to any zone.

Specs

Speaker Outputs 8 amplified outputs each independently configurable for stereo or mono
FTC Power Output Rating 125 W per channel @ 8Ω (all channels driven)
Minimum Impedance 2.67Ω with Sonos Architectural speakers
Damping Factor >400 (ref. 8 ohms, 20 Hz to 1 kHz)
Amplifier Technology Class D with GaN and PFFB
Total Harmonic Distortion 0.005% at 2.83Vrms-15Vrms
Frequency Response ±0.5 dB, 15 Hz - 20 kHz
Channel Separation (Crosstalk) -100dB at 1 kHz 2.83Vrms
-80dB at 10 kHz 2.83Vrms
Signal-to-Noise Ratio 114dB ref 125W into 8-Ohm
Power Consumption 5.4 W (idle)
180 W (all channels driven at 1/8 output power, 8 Ohms)
Power Auto-switching 100-240V 50/60Hz 10A AC universal input
Wired Networking Interface 100BaseTX, Ethernet RJ45
Wireless Networking Interface Compatible with WiFi 6. Connect to Wi-Fi with any 802.11a/b/g/n/ac/ax 2.4 GHz/5 GHz broadcast-capable router
Analog Audio Input 2 x RCA inputs -10dB (stereo into one zone)
USB-C Analog Audio Input 44.1 kHz / 16 bit (stereo into any zone)
Requires Sonos Line-In Adapter
Subwoofer Connections 1 x RCA output -10dB (configurable to output from one zone), and 1x Sonos Sub per zone
Direct Streaming Formats Apple AirPlay 2, Spotify Direct Control, and more.
CPU Quad Core
4xA55 1.9GHz



Dimensions

Single Unit Size 2.52" x 17.2" x 10.44"
Power Cable Length 6'
Weight 11.16 lbs
