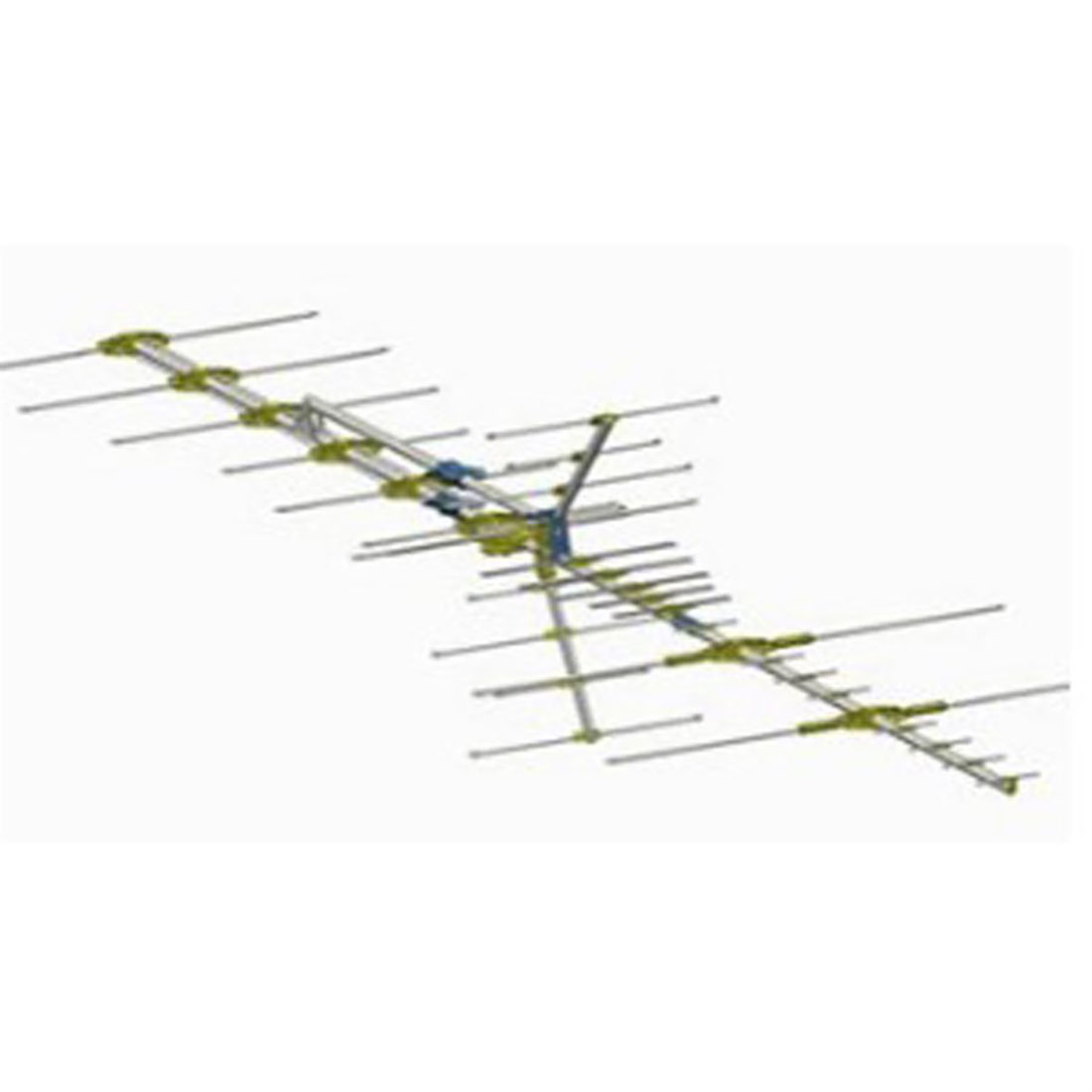

Sky Blue Antenna Deep Fringe High VHF/UHF ch 7-49

Sky Blue Antenna Deep Fringe High VHF/UHF ch 7-49
MSRP: $289.95
Manufacturer: Sky Blue
SKU: SB24

Features

  • F-Type high quality PCB balun
  • Snap out reflectors
  • Stainless Steel screws on connection points
  • Designed and tested for digital reception
  • Heavy duty construction on all components
  • ½ inch extruded aluminum heavy duty elements
  • Tough powder coated finish
  • UV stabilized plastics
  • Bifurcated rivets-strongest in the industry
  • U-bolts and clamps fitted

What's in the Box

  • F-connector
  • Rubber boot
  • V-block
  • Preassembled U-bolt

Specs

Elements42
VHF Channels6~12
Forward Gain11.5 dB
Front to Back Ratio>17~20dB
UHF Channels28~50
Forward Gain19 dB
Front to Back Ratio>17~20dB



Dimensions

Length144”
Width53”
Maximum Height25.3”
Shipping Weight13.5 lbs.
