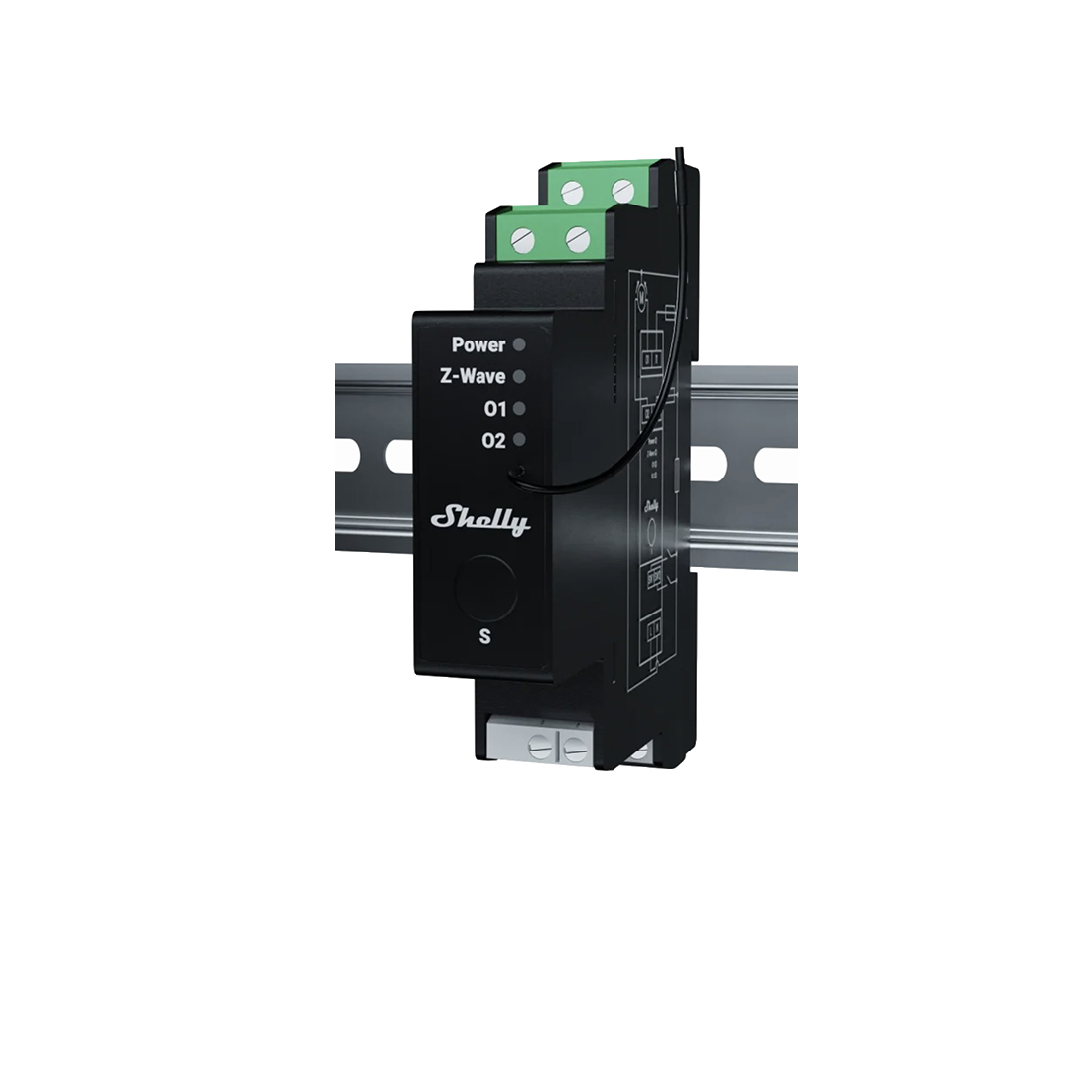

Shelly Wave Pro Shutter US LR

Professional DIN rail Z-Wave® shutter control with power metering and Z-Wave Long Range. Ideal for home/facility automation of blinds, shutters, awnings, and more.
MSRP: $108.99
Manufacturer: Shelly Products
SKU: 3800238071875

Features

  • Control the tilt position (angle) of the venetian blind slats
  • Supports push-buttons/momentary switches, and toggle switches​
  • Power metering​​
  • Supports Z-Wave Long Range - mantains a strong connection over distances exceeding 1 mile (line of sight)
  • Dual Z-Wave frequency options: choose between 912 MHz (ZWLR) or 908.4 MHz ( Z-Wave Plus)
  • Energy efficient: uses only up to 0.3 W of power
  • DIN-rail mountable
  • Latest technology: Z-Wave 800 Series​
  • Easy set up with SmartStart - just scan and go
  • Security 2 Authenticated for the highest level of security​
  • Supports over-the-air firmware updates​
  • Note: A gateway (smart hub) is not included. It is required to configure Z-Wave Plus devices, and a ZWLR-compatible gateway is mandatory for a device to operate in a ZWLR setting.

Specs

Power supply 120 V AC 50/60 Hz
Power consumption < 0.3 W
Power measurement [W] Yes
Max switching voltage AC 120 V
Max switching current AC 12.5 A per channel
Overheating protection Yes
Overcurrent protection Yes
Overvoltage protection Yes
Long range network Distance (depends on local condition): Up to 80 m indoors (262 ft.) or up to 1000 m outdoors (3281 ft.)
Z-Wave® repeater: No
Z-Wave® frequency bands: 912 MHz
Mesh network Distance (depends on local condition): Up to 40 m indoors (131 ft.)
Z-Wave® repeater: Yes
Z-Wave® frequency bands: 908.4 MHz
CPU Z-Wave® S800
Shell material Plastic
Mounting DIN rail
Screw terminals max torque 0.4 Nm / 3.54 lbin
Conductor cross section 0.5 to 2.5 mm² / 20 to 14 AWG (green connector)
0.5 to 1.5 mm² / 20 to 16 AWG (white connectors)
Conductor stripped length 6 to 7 mm / 0.24 to 0.28 in (green connector)
5 to 6 mm / 0.20 to 0.24 in (white connectors)
Ambient temperature -20°C to 40°C / -5°F to 105°F
Humidity 30% to 70% RH
Max. altitude 2000 m / 6562 ft.



Dimensions

HxWxD 3.70" x 0.75" x 2.71" ± 0.02"
Weight 2.65 oz
