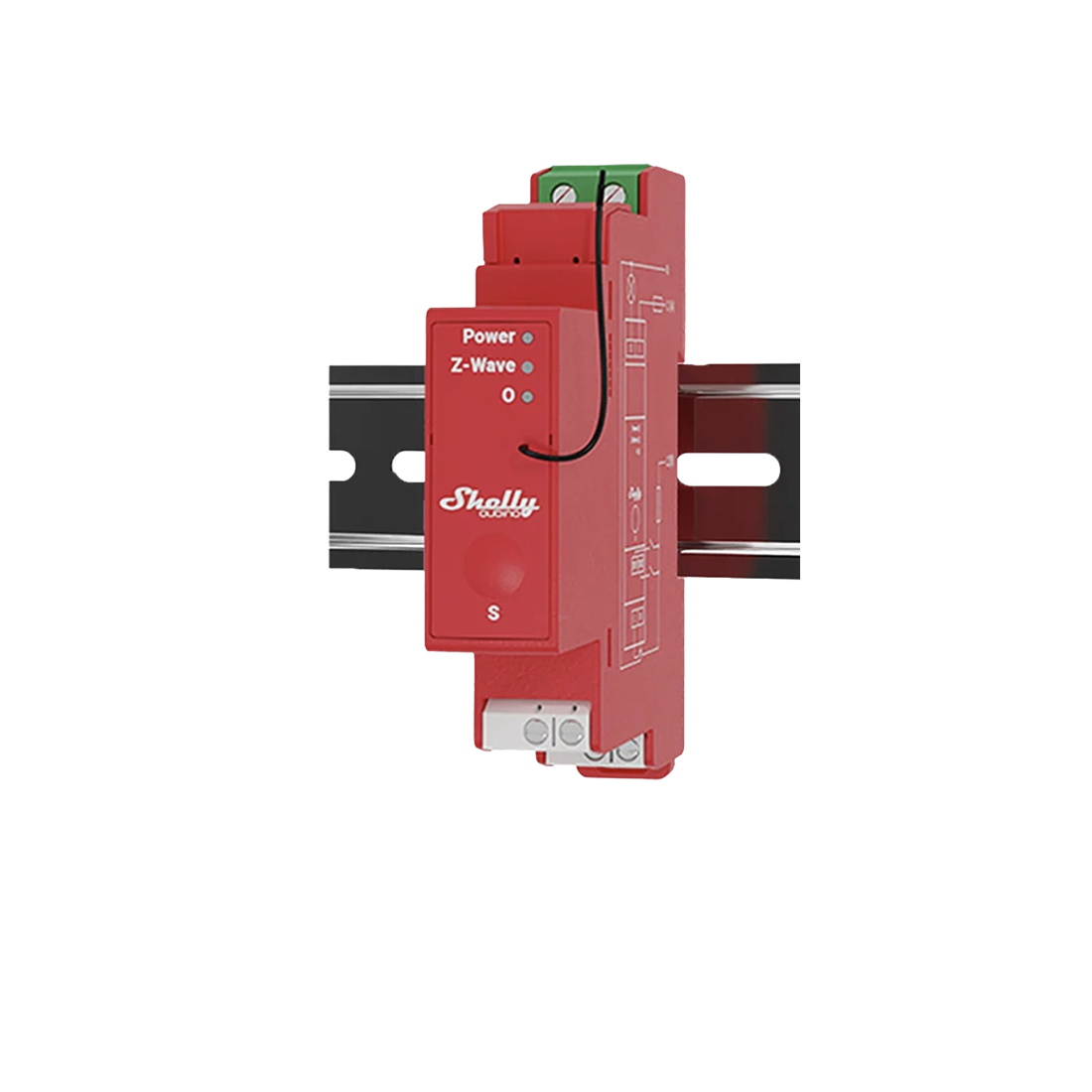

Shelly Wave Pro 1PM US LR

Professional 1-channel DIN rail Z-Wave smart switch, up to 15 A. Equipped with an integrated power meter, allowing you to measure power consumption of all automated lights or heavier appliances
MSRP: $80.49
Manufacturer: Shelly Products
SKU: 3800238071844

Features

  • 1 output, 15 A
  • Power metering​
  • DIN-rail mountable​
  • Extremely low power consumption: < 0.3 W​
  • Z-Wave frequency band: 908.4 MHz​
  • Latest technology: Z-Wave 800 Series​
  • Automatic set-up with SmartStart ​
  • Security 2 Authenticated for the highest level of security​
  • Over-the-air firmware updates​
  • Works with Z-Wave-certified gateways and over 4,000 Z-Wave devices​
  • Note: A gateway (smart hub) is not included. A gateway (smart hub) is required for the configuration of the device.​​

Specs

Power supply 110 - 240 V AC 50/60 Hz
Power consumption < 0.3 W
Power measurement (W) Yes
Max switching voltage AC: 240 V
DC: N/A
Max switching current AC: 16 A
DC: N/A
Overheating protection Yes
Overload protection Yes
Overvoltage protection Yes
Radio Distance: Up to 40 m indoors (131 ft.) (depends on local condition)
Z-Wave® repeater: Yes
Z-Wave® frequency band: 868.4 MHz
Maximum radio frequency power transmitted in frequency band(s) < 25 mW
CPU Z-Wave® S800
Shell material Plastic
Mounting DIN rail
Screw terminals max torque 0.4 Nm / 3.54 lbin
Conductor cross section 0.5 to 2.5 mm² / 20 to 14 AWG (green connector)
0.5 to 1.5 mm² / 20 to 16 AWG (white connectors)
Conductor stripped length 6 to 7 mm / 0.24 to 0.28 in (green connector)
5 to 6 mm / 0.20 to 0.24 in (white connectors)
Ambient temperature -20°C to 40°C / -5°F to 105°F
Humidity 30% to 70% RH
Max. altitude 2000 m / 6562 ft.



Dimensions

HxWxD 3.70" x 0.75" x 2.71" ± 0.02"
Weight 2.15 oz
