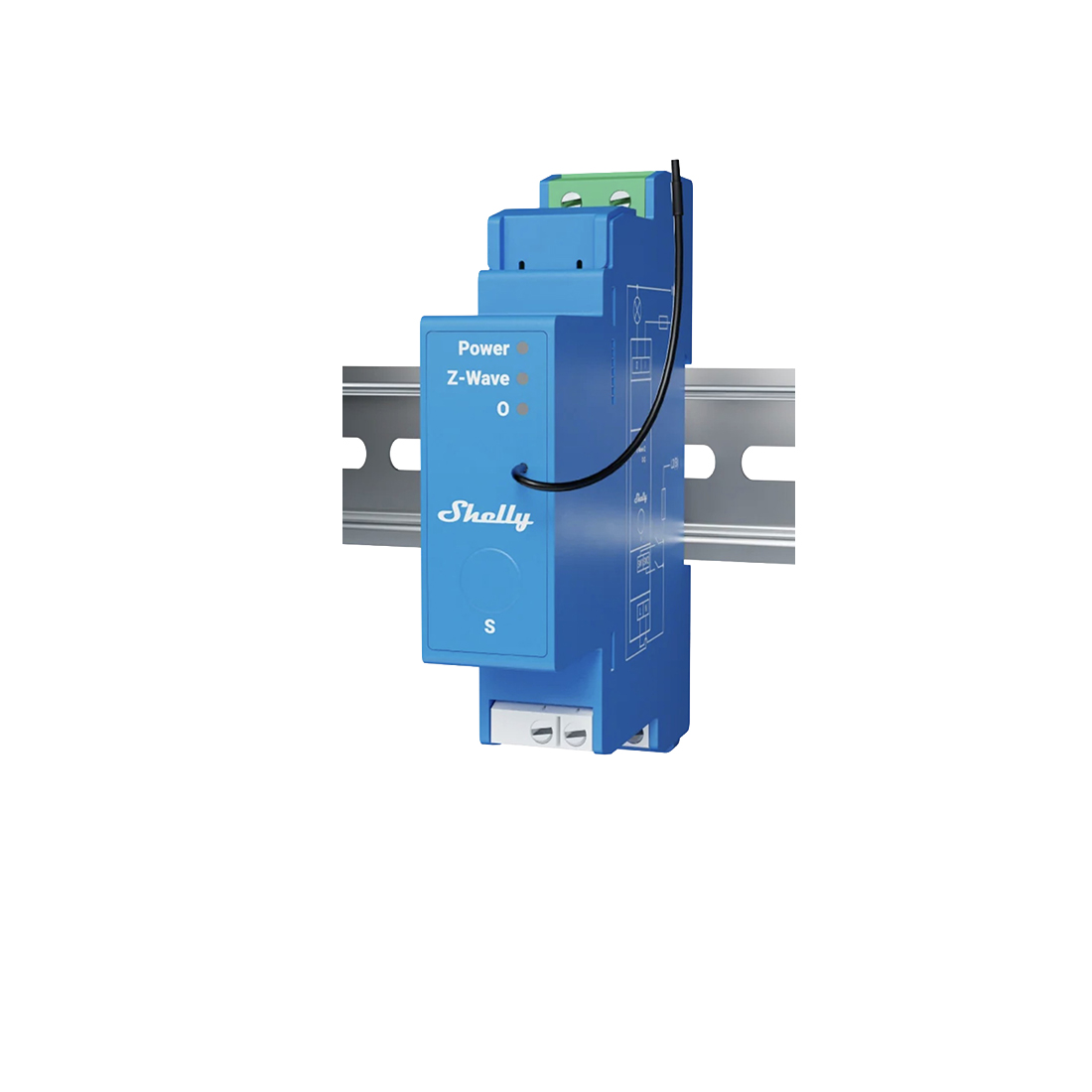

Shelly Wave Pro 1 US LR

1-channel DIN rail Z-Wave smart switch with dry contacts, 15 A capacity, for pro lighting/appliance automation in homes or businesses. Now with enhanced range and performance.
MSRP: $65.99
Manufacturer: Shelly Products
SKU: 3800238071837

Features

  • 1 channel relay, up to 15 A
  • Supports Z-Wave Long Range - mantains a strong connection over distances exceeding 1 mile (line of sight)
  • Dry contacts
  • DIN-rail mountable
  • Energy efficient: uses only up to 0.3 W of power
  • Latest Z-Wave 800 series
  • Dual Z-Wave frequency options: choose between 912 MHz (ZWLR) or 908.4 MHz ( Z-Wave Plus)
  • Easy set up with SmartStart - just scan and go
  • Top level Security, S2 authenticated
  • Supports OTA firmware updates
  • Notes: A gateway (smart hub) is not included. It is required to configure Z-Wave Plus devices, and a ZWLR-compatible gateway is mandatory for a device to operate in a ZWLR setting.

Specs

Power supply 110 - 240 V AC 50/60 Hz
Power consumption < 0.3 W
Power measurement (W) No
Max switching voltage AC: 240 V
DC: N/A
Max switching current AC: 15 A
DC: N/A
Overheating protection Yes
Radio Distance: Up to 40 m indoors (131 ft.) (depends on local condition)
Z-Wave® repeater: Yes
Z-Wave® frequency bands: 908.4 MHz
CPU Z-Wave® S800
Shell material Plastic
Mounting DIN rail
Screw terminals max torque 0.4 Nm / 3.54 lbin
Conductor cross section 0.5 to 2.5 mm² / 20 to 14 AWG (green connector)
0.5 to 1.5 mm² / 20 to 16 AWG (white connectors)
Conductor stripped length 6 to 7 mm / 0.24 to 0.28 in (green connector)
5 to 6 mm / 0.20 to 0.24 in (white connectors)
Ambient temperature -20°C to 40°C / -5°F to 105°F
Humidity 30% to 70% RH
Max. altitude 2000 m / 6562 ft.



Dimensions

HxWxD 3.70" x 0.75" x 2.71" ± 0.02"
Weight 2.12 oz
