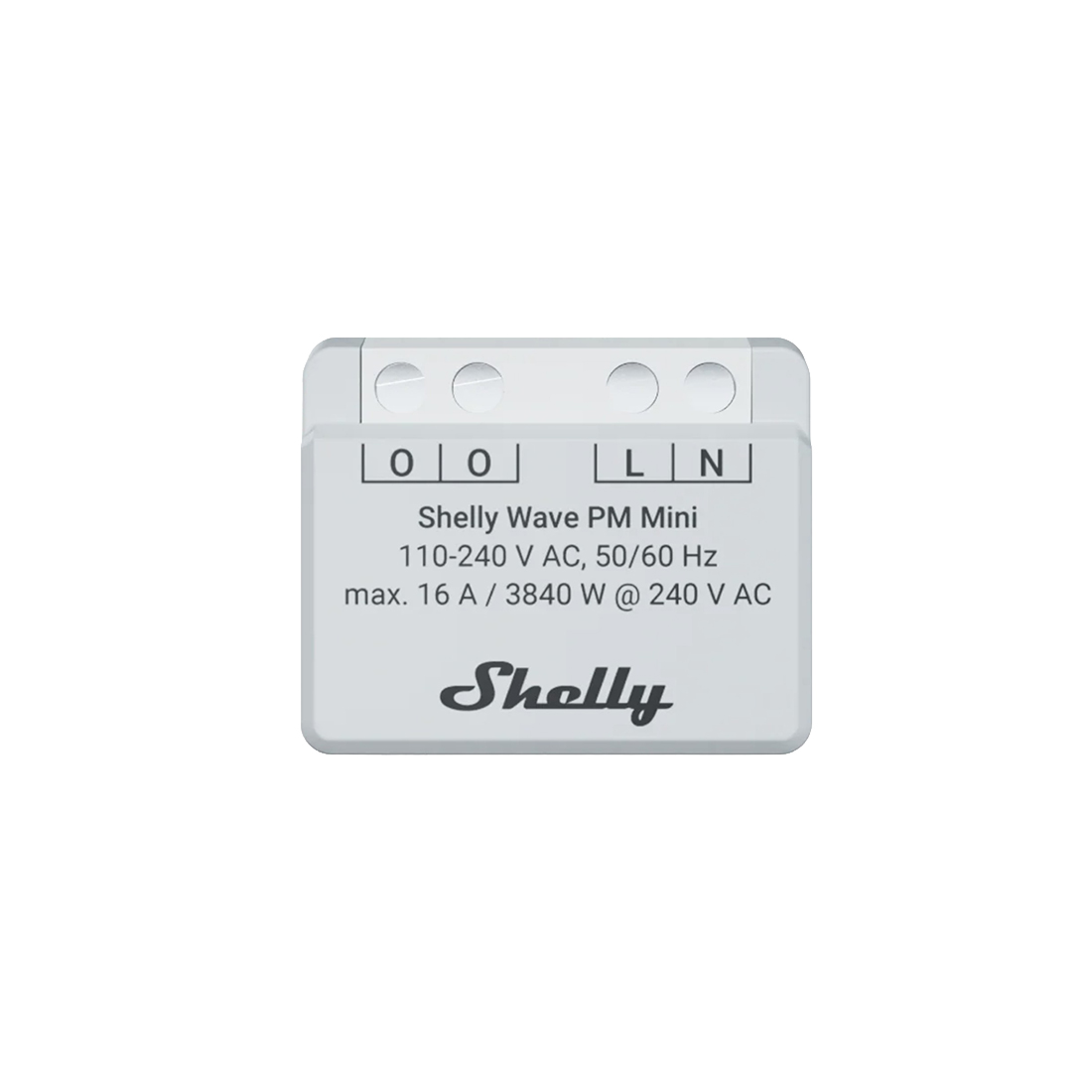

Shelly Wave PM Mini US LR

Compact and powerful, this device monitors energy use even in tight spaces—now with Z-Wave Long Range for extended wireless coverage and improved network reliability.
MSRP: $31.99
Manufacturer: Shelly Products
SKU: 3800238071882

Features

  • Supports up to 16 A at 240 V AC​
  • Power measurement
  • Z-Wave frequency: 912 MHz (ZWLR) & 908.4 MHz (Z-Wave Plus)
  • Energy efficient: uses only up to 0.3 W of power
  • Latest technology: Z-Wave 800 Series​
  • Easy set up with SmartStart - just scan and go
  • Security 2 Authenticated for the highest level of security
  • Supports over-the-air firmware updates​
  • Fast and simple installation in most standard electrical boxes and switches​
  • A gateway (smart hub) is not included. A gateway (smart hub) is required for the configuration of the device.​

Specs

Power supply 110 - 240 V AC 50/60 Hz
Power consumption < 0.3 W
External protection 16 A, tripping characteristic B or C

6 kA interrupting rating

Energy limiting class 3
Max. measurement power 3840 W
Max. measurement current 16 A
Power measurement (W) Yes
Overheating protection Yes
Overcurrent protection Yes
Overvoltage protection Yes
Long range network Distance: Up to 80 m indoors (262 ft.) or up to 1000 m outdoors (3281 ft.)

Z-Wave® repeater: No

Z-Wave® frequency bands: 912 MHz
Mesh network Distance: Up to 40 m indoors (131 ft.)

Z-Wave® repeater: Yes

Z-Wave® frequency bands: 908.4 MHz
CPU Z-Wave® S800
Mounting In-wall box
Screw terminals max. torque 0.4 Nm
Shell material Plastic
Ambient temperature -20°C to 40°C / -5°F to 105°F
Humidity 30% to 70% RH
Max. altitude 2000 m / 6562 ft.



Dimensions

H x W x D 29x35x16 ± 0.5 mm / 1.11x1.35x0.63 ± 0.02 in
Weight 13 ± 1 g / 0.46 ± 0.04 oz
Conductor cross section 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length 6 to 7 mm / 0.24 to 0.28 in
