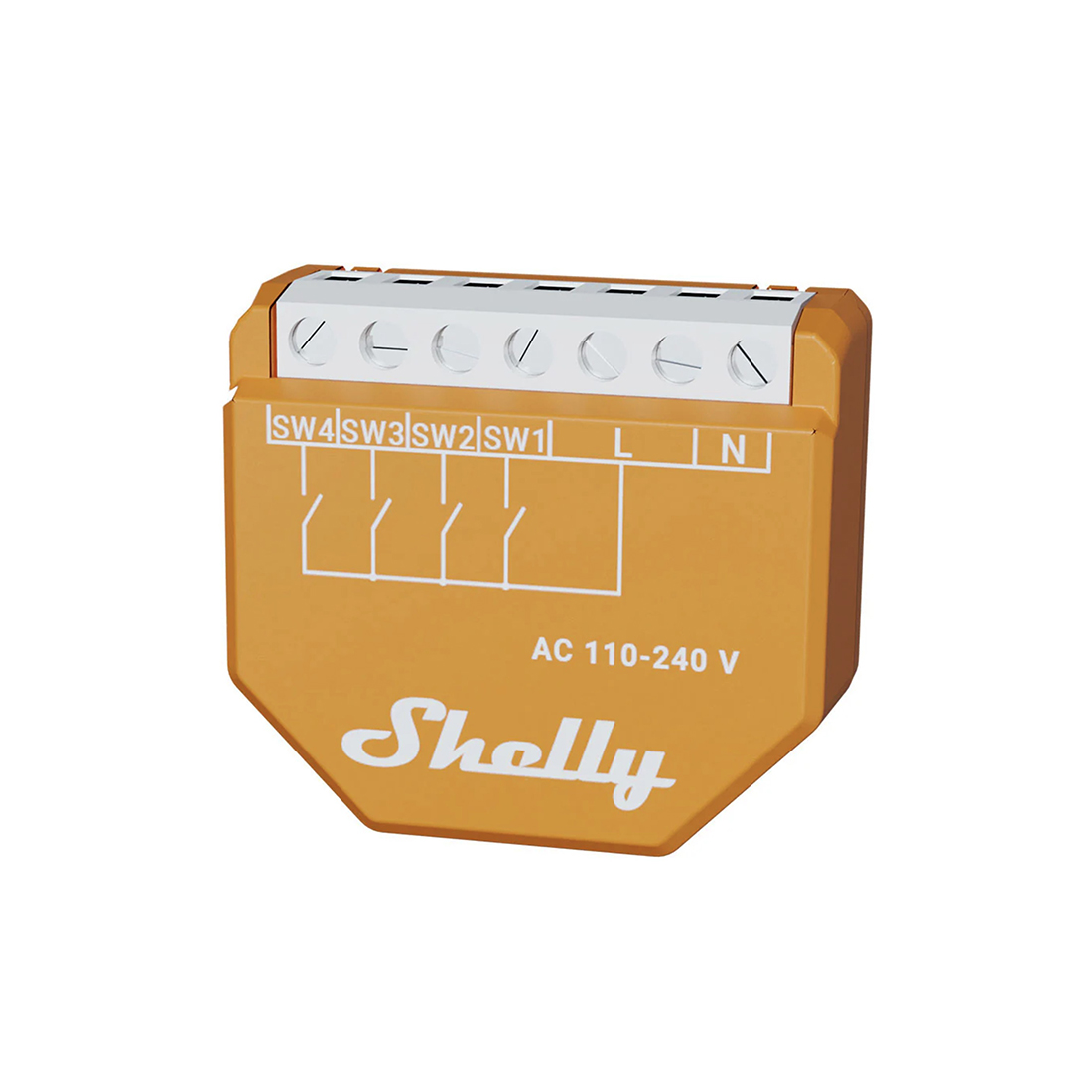

Shelly Wave i4 US LR

Easily control scenes, run synced actions, or trigger complex events with a single button. Now with Z-Wave Long Range for greater coverage and reliability.
MSRP: $32.99
Manufacturer: Shelly Products
SKU: 3800238072063

Features

  • Shelly Wave i4 is an input reader device (it does not contain relays)
  • Manually control other Z-Wave devices (e.g. with a multi-button switch)​
  • Multi-click – activation of up to 16 actions​
  • Supports Z-Wave Long Range - mantains a strong connection over distances exceeding 1 mile (line of sight)
  • Energy efficient: uses only up to 0.2 W of power
  • Dual Z-Wave frequency options: choose between 912 MHz (ZWLR) or 908.4 MHz ( Z-Wave Plus)
  • Latest Z-Wave 800 series
  • Easy set up with SmartStart - just scan and go
  • Top level Security, S2 authenticated
  • Supports OTA firmware updates
  • A gateway (smart hub) is not included. A gateway (smart hub) is required for the configuration of the device.​

Specs

Power supply AC 110 - 240 V AC 50/60 Hz
Power consumption < 0.2 W
Number of inputs 4
Long range network Distance: Up to 80 m indoors (262 ft.) or up to 1000 m outdoors (3281 ft.)

Z-Wave® repeater: No

Z-Wave® frequency bands: 912 MHz
Mesh network Distance: Up to 40 m indoors (131 ft.)

Z-Wave® repeater: Yes

Z-Wave® frequency bands: 908.4 MHz
CPU Z-Wave® S800
Mounting In-wall box
Screw terminals max. torque 0.4 Nm
Shell material Plastic
Ambient temperature -20°C to 40°C / -5°F to 105°F
Humidity 30 % to 70 % RH
Max. altitude 2000 m / 6562 ft.



Dimensions

H x W x D 1.46" x 1.65" x 0.63" ± 0.02"
Weight 0.6 oz
Conductor cross section 0.5 to 1.5 mm² / 20 to 16 AWG
Conductor stripped length 5 to 6 mm / 0.20 to 0.24 in
