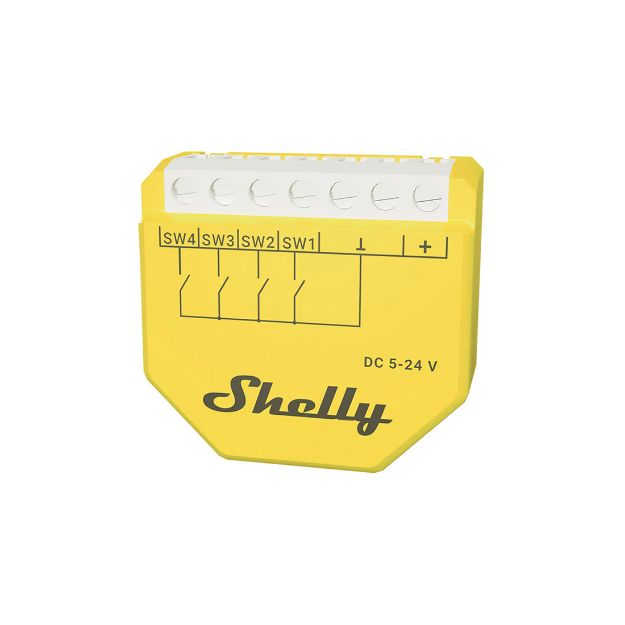

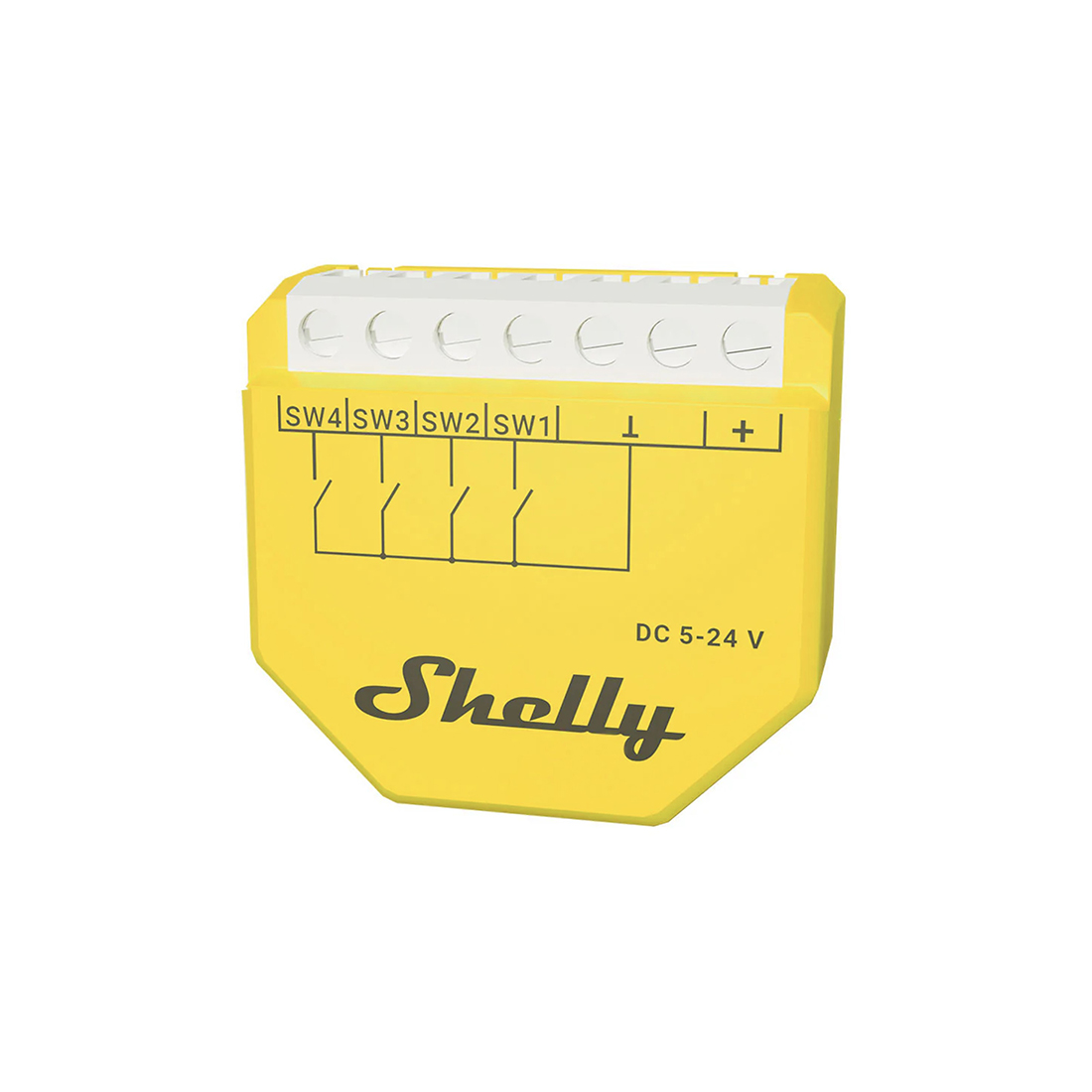

Shelly Wave i4 DC US LR

Easily control scenes, trigger complex events, or run synced actions with a single button. Now with Z-Wave Long Range for greater coverage and reliability.
MSRP: $32.99
Manufacturer: Shelly Products
SKU: 3800238072070

Features

  • Shelly Wave i4 DC is an input reader device (it does not contain relays)
  • Manually control other Z-Wave devices (e.g. with a multi-button switch)​
  • Multi-click – activation of up to 16 actions​
  • Supports Z-Wave Long Range - mantains a strong connection over distances exceeding 1 mile (line of sight)
  • Energy efficient: uses only up to 0.2 W of power
  • Dual Z-Wave frequency options: choose between 912 MHz (ZWLR) or 908.4 MHz ( Z-Wave Plus)
  • Latest Z-Wave 800 series
  • Easy set up with SmartStart - just scan and go
  • Top level Security, S2 authenticated
  • Supports OTA firmware updates
  • A gateway (smart hub) is not included. A gateway (smart hub) is required for the configuration of the device.​

Specs

CPU Z-Wave® S800
Power supply DC 5 - 24 V DC
Power consumption < 0.3 W
Number of inputs 4
Ambient temperature -20°C to 40°C
Max. altitude 2000 m
Humidity 30 % to 70 % RH
Long range network Distance: Up to 80 m indoors (262 ft.) or up to 1000 m outdoors (3281 ft.)

Z-Wave® repeater: No

Z-Wave® frequency bands: 912 MHz
Mesh network Distance: Up to 40 m indoors (131 ft.)

Z-Wave® repeater: Yes

Z-Wave® frequency bands: 908.4 MHz
Mounting In-wall box
Screw terminals max. torque 0.4 Nm / 3.5 lbin



Dimensions

Size 37x42x16 ± 0.5 mm
Weight 17 g
Conductor cross section 0.5 to 1.5 mm²
Conductor stripped length 5 to 6 mm
