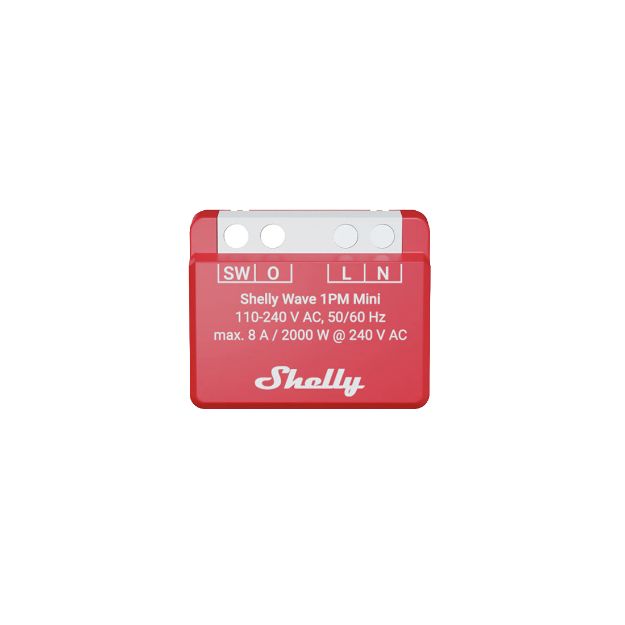

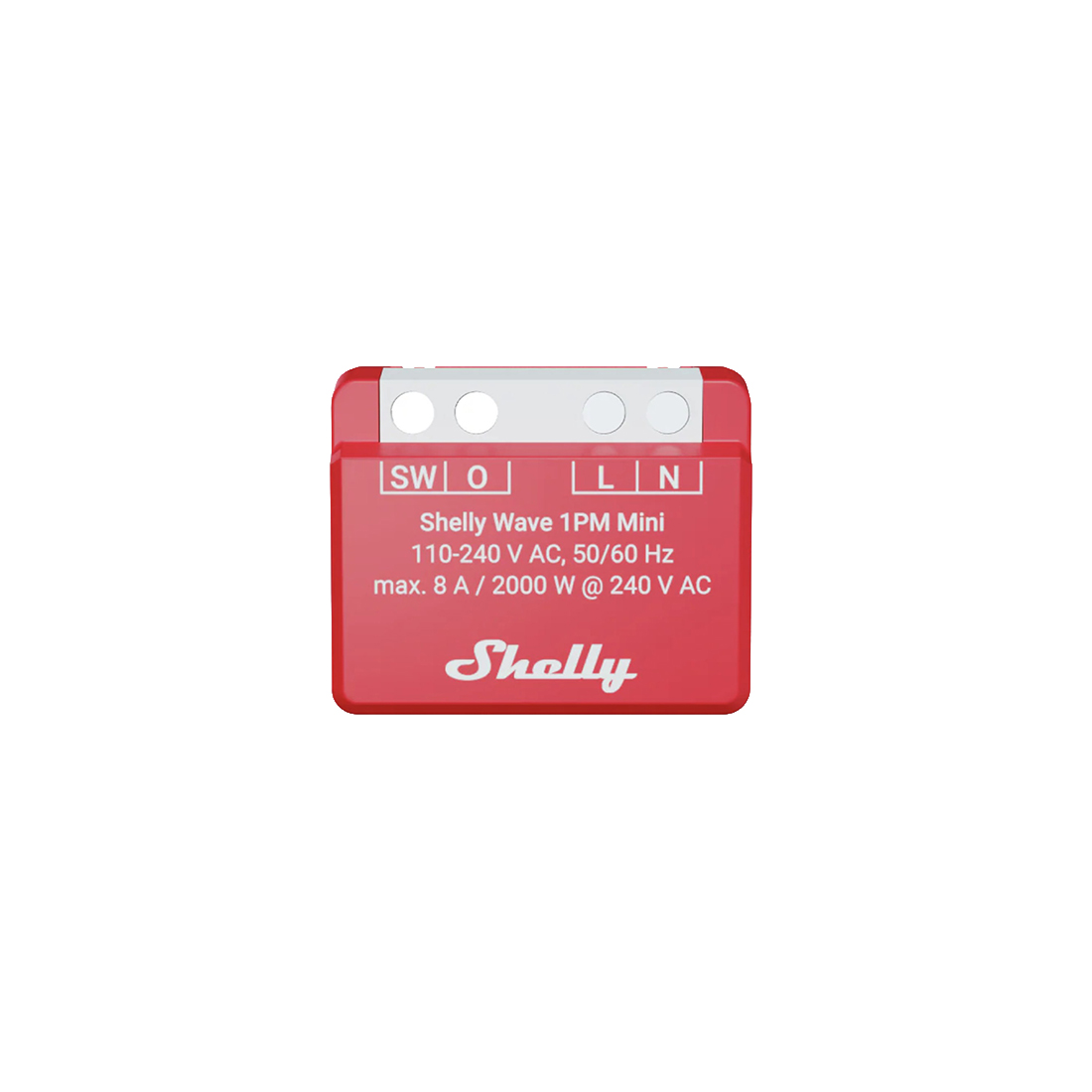

Shelly Wave 1PM Mini US LR

The ideal retrofit solution for lights, appliances, and fans—offering precise energy monitoring and now supporting Z-Wave Long Range for extended connectivity.
MSRP: $29.99
Manufacturer: Shelly Products
SKU: 3800238071905

Features

  • Supports up to 8 A at 240 V AC​​
  • Power measurement
  • Z-Wave frequency: 912 MHz (ZWLR) & 908.4 MHz (Z-Wave Plus)
  • Energy efficient: uses only up to 0.3 W of power
  • Latest technology: Z-Wave 800 Series​
  • Easy set up with SmartStart - just scan and go
  • Security 2 Authenticated for the highest level of security
  • Supports over-the-air firmware updates
  • Simple installation in most standard electrical boxes and switches
  • A gateway (smart hub) is not included. A gateway (smart hub) is required for the configuration of the device.​

Specs

Power supply 110 - 240 V AC 50/60 Hz
Power consumption < 0.3W
External protection 10 A, tripping characteristic B or C 6 kA interrupting rating, Energy limiting class 3
Max. switching voltage AC 240 V
Max. switching current AC 8 A
Max switching power AC: 2000 W
CPU Z-Wave® S800
Power measurement [W] Yes
Overheating protection Yes
Overcurrent protection Yes
Overvoltage protection Yes
Long range network Distance: Up to 80 m indoors (262 ft.) or up to 1000 m outdoors (3281 ft.)

Z-Wave® repeater: No

Z-Wave® frequency bands: 912 MHz
Mesh network Distance: Up to 40 m indoors (131 ft.)

Z-Wave® repeater: Yes

Z-Wave® frequency bands: 908.4 MHz
Mounting In-wall box
Shell material Plastic
Screw terminals max. torque 0.4 Nm / 3.54 lbin
Ambient temperature -20°C to 40°C / -5°F to 105°F
Humidity 30% to 70% RH
Max. altitude 2000 m / 6562 ft.



Dimensions

HxWxD 1.11" х 1.35" х 0.63" ±0.02"
Weight 0.63 ± 0.04 oz
Conductor cross section 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length 6 to 7 mm / 0.24 to 0.28 in
