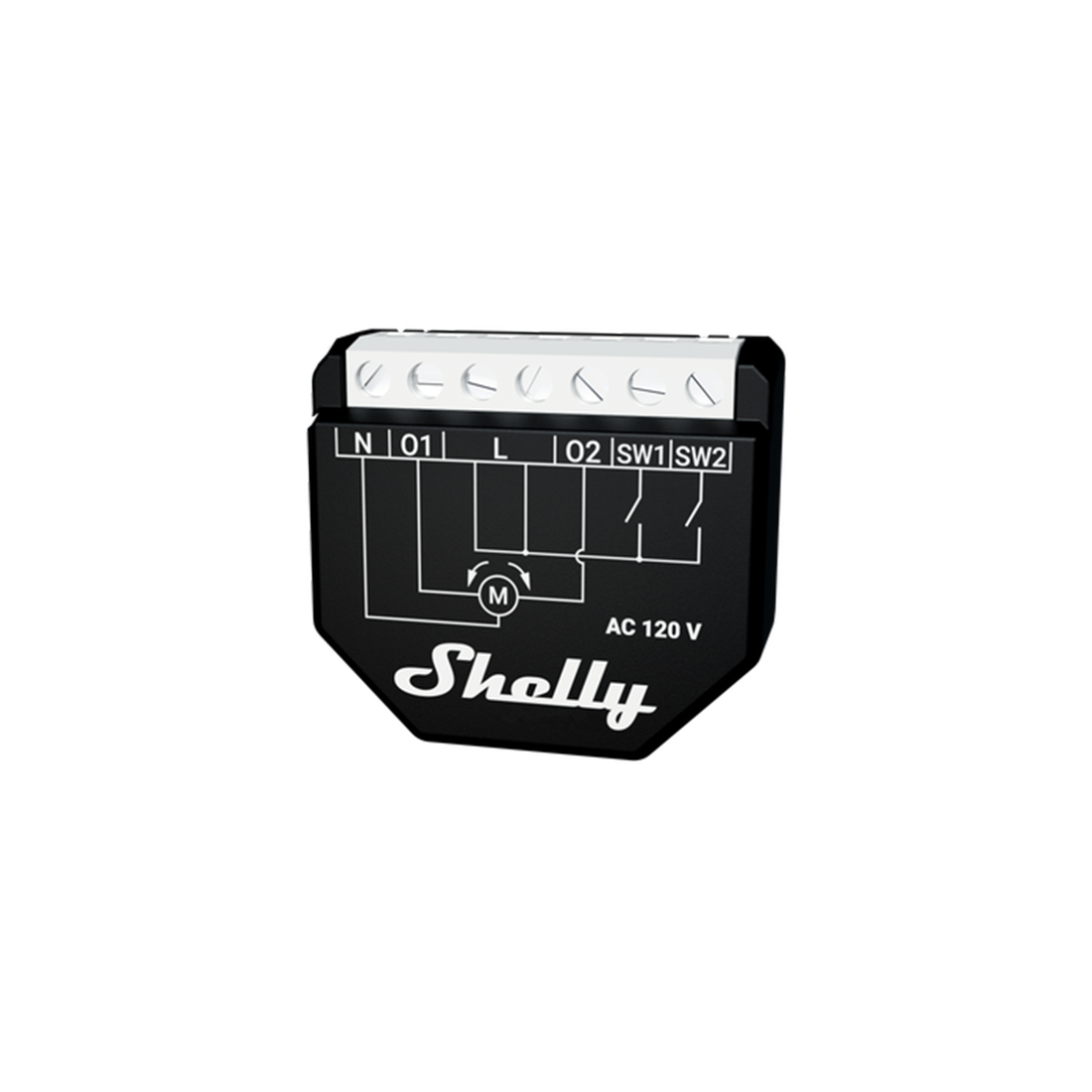

Shelly Wave Shutter US LR

Set the desired position of your blinds, roller shutters, screens, awnings, and other devices powered by bi-directional AC motors from anywhere with this Z-Wave-operated shutter controller.
MSRP: $39.99
Manufacturer: Shelly Products
SKU: 3800238070953

Features

  • Control the tilt position (angle) of the venetian blind slats​
  • Supports push-buttons/momentary switches, and toggle switches
  • Power metering​
  • Extremely low power consumption: < 0.3 W​
  • Z-Wave frequency band: 908.4 MHz
  • Latest technology: Z-Wave 800 Series​
  • Automatic set-up with SmartStart ​
  • Security 2 Authenticated for the highest level of security​
  • Over-the-air firmware updates​
  • Works with Z-Wave-certified gateways and over 4,000 Z-Wave devices​
  • Note: A gateway (smart hub) is NOT included. A gateway (smart hub) is required for the configuration of the device.​

Specs

Power supply 110-240 V AC +/- 10%
Power consumption < 0.3 W
Power measurement [W] Yes
Max switching voltage AC 240 V
Max switching current AC 10 A per channel
Overheating protection Yes
Overload protection Yes
Distance up to 40 m indoors (131 ft.)
(depends on local condition)
Z-Wave® repeater Yes
CPU Z-Wave® S800
Z-Wave® frequency band 868,4 MHz
Maximum radio frequency power transmitted in frequency bend(s) < 25 mW
Mounting Wall console
Screw terminals max torque 0.4 Nm / 3.5 lbin
Conductor cross section 0.5 to 1.5 mm² / 20 to 16 AWG
Conductor stripped length 5 to 6 mm / 0.20 to 0.24 in
Shell material Plastic
Ambient working temperature -20°C to 40°C / -5°F to 105°F
Humidity 30% to 70% RH
Max. altitude 2000 m / 6562 ft.



Dimensions

HxWxD 1.46" x 1.65" x 0.63" ± 0.02"
Weight 1.02 oz
