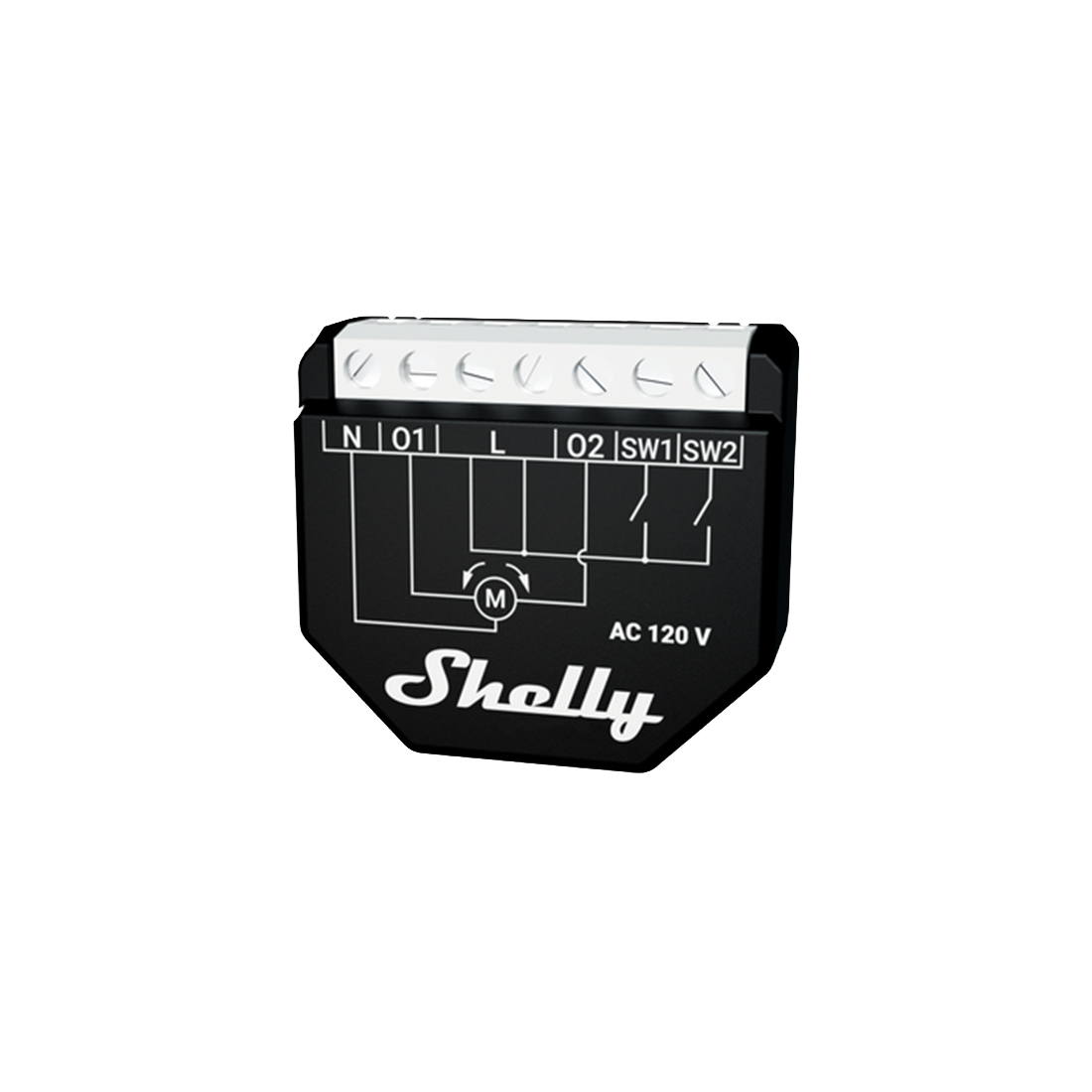

Shelly Wave Shutter UL US

Z-Wave Long Range shutter controller, ideal for automating blinds, shutters, awnings, and other devices with a bi-directional AC motor. Remotely control position, slats angle, set schedules, and more.
MSRP: $39.99
Manufacturer: Shelly Products
SKU: 3800235269190

Features

  • Control the tilt position (angle) of the venetian blind slats​
  • Supports push-buttons/momentary switches, and toggle switches​
  • Power metering​​
  • Supports Z-Wave Long Range - maintains a strong connection over distances of up to 1 mile (line of sight)
  • Dual Z-Wave frequency options: choose between 912 MHz (ZWLR) or 908.4 MHz ( Z-Wave Plus)
  • Energy efficient: uses only up to 0.3 W of power
  • Latest technology: Z-Wave 800 Series​
  • Easy set up with SmartStart - just scan and go
  • Top level Security, S2 authenticated
  • Supports OTA firmware updates
  • Note: A gateway (smart hub) is not included. It is required to configure Z-Wave Plus devices, and a ZWLR-compatible gateway is mandatory for a device to operate in a ZWLR setting.

Specs

Power supply 120 V AC 50/60 Hz
Power consumption < 0.3 W
Power measurement [W] Yes
Max. Power per channel 1/3 hp
Max switching voltage AC 120 V
Max switching current AC 7 A per channel
Overheating protection Yes
Overcurrent protection Yes
Overvoltage protection Yes
Long range network Distance (depends on local condition): Up to 80 m indoors (262 ft.) or up to 1000 m outdoors (3281 ft.)
Z-Wave® repeater: No
Z-Wave® frequency bands: 912 MHz
Mesh network Distance (depends on local condition): Up to 40 m indoors (131 ft.)
Z-Wave® repeater: Yes
Z-Wave® frequency bands: 908.4 MHz
CPU Z-Wave® S800
Purpose of control Operating
Shell material Plastic
Mounting Flush mounting
Construction of control Independently mounted
Type of action Type 1.B
Overvoltage category III
Pollution degree 2
Impulse voltage 4000 V
Screw terminals max torque 0.4 Nm / 3.5 lbin
Conductor cross section 0.5 to 1.5 mm² / 20 to 16 AWG
Conductor stripped length 5 to 6 mm / 0.20 to 0.24 in
Ambient temperature -20°C to 40°C / -5°F to 105°F
Humidity 30% to 70% RH
Max. altitude 2000 m / 6562 ft.



Dimensions

HxWxD 1.46" x 1.65" x 0.63" ± 0.02"
Weight 1.02 oz
