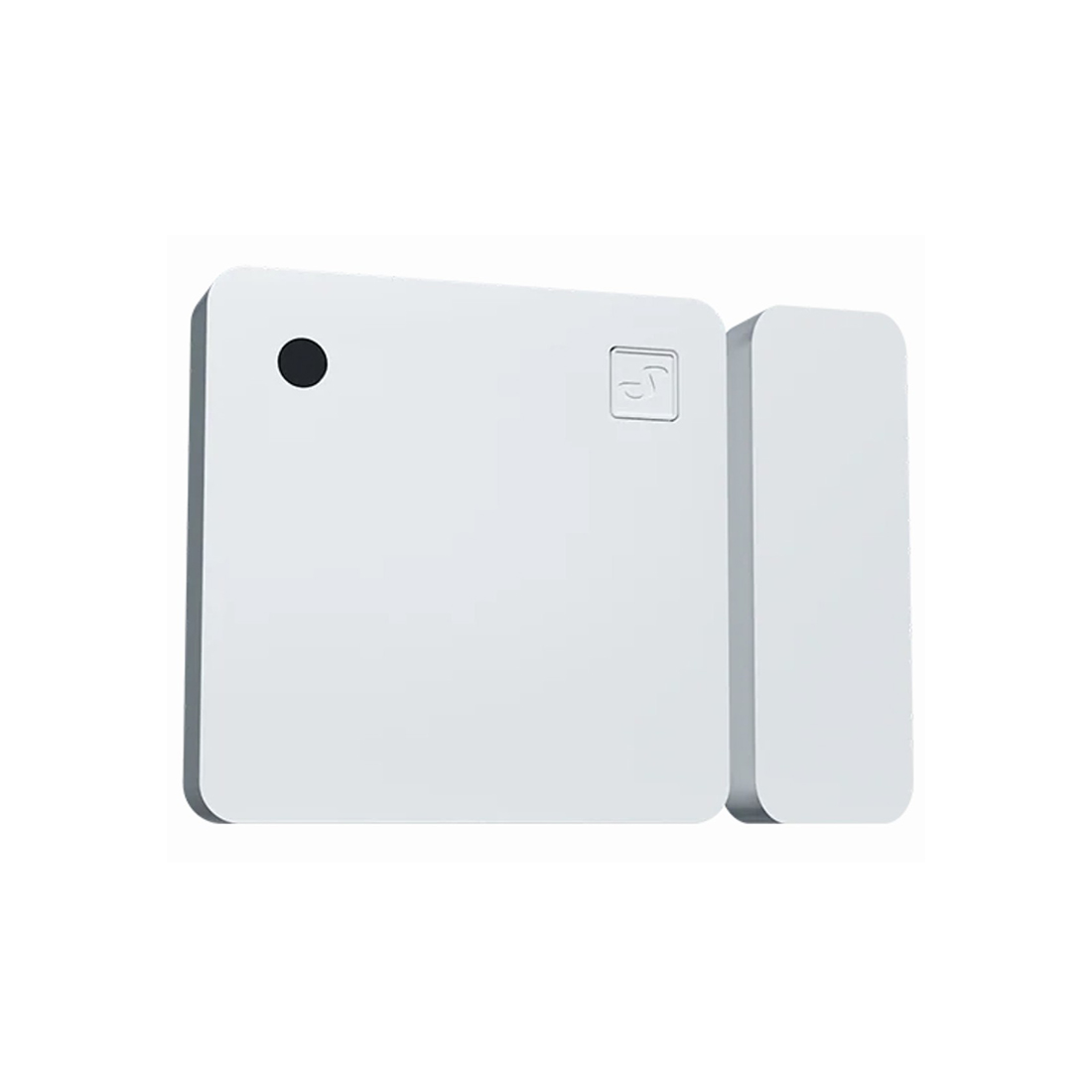

Shelly Wave Door/Window US LR White

Z-Wave Long Range (ZWLR) sensor that detects and reports opening or closing of doors/windows, measures tilt angle and features light sensor to trigger smart home automations even over large distances.
MSRP: $33.99
Manufacturer: Shelly Products
SKU: 3800238070984

Features

  • Detects and reports opening or closing of doors/windows
  • Measures tilt angle and luminosity
  • Battery 1xCR2032 – included
  • Battery life – up to two years
  • Supports Z-Wave Long Range - maintains a strong connection over distances exceeding 1 mile (line of sight)
  • Z-Wave frequency band: 912 MHz (ZWLR) & 908.4 MHz (Z-Wave Plus)
  • Latest technology: Z-Wave 800 Series
  • Easy set up with SmartStart - just scan and go
  • Top level Security, S2 authenticated
  • Supports OTA firmware updates

Specs

Power supply 1x 3 V CR2032 battery (included)
Battery life Up to 2 years
Reed switch Yes
G-sensor Yes
Light sensor Yes
Long range network Distance: Up to 80 m indoors (262 ft.) or up to 1000 m outdoors (3281 ft.)
Z-Wave® repeater: No
Z-Wave® frequency bands: 864 MHz
Mesh network Distance: Up to 40 m indoors (131 ft.)
Z-Wave® repeater: No
Z-Wave® frequency bands: 868.4 MHz
CPU Z-Wave® S800
Maximum radio frequency power transmitted in frequency band(s) < 25 mW
Shell material Plastic
Ambient temperature -20°C to 40°C / -5°F to 105°F
Humidity 30% to 70% RH
Max. altitude N/A



Dimensions

HxWxD Sensor unit: 1.38" х 1.38" х 0.27" ±0.02"
Magnet: 1.38" х 0.47" х 0.27" ±0.02"
Weight Sensor unit w/ battery: 0.35 ±0.05 oz
Magnet: 0.28 ±0.05 oz



Product Files
MANUALS
