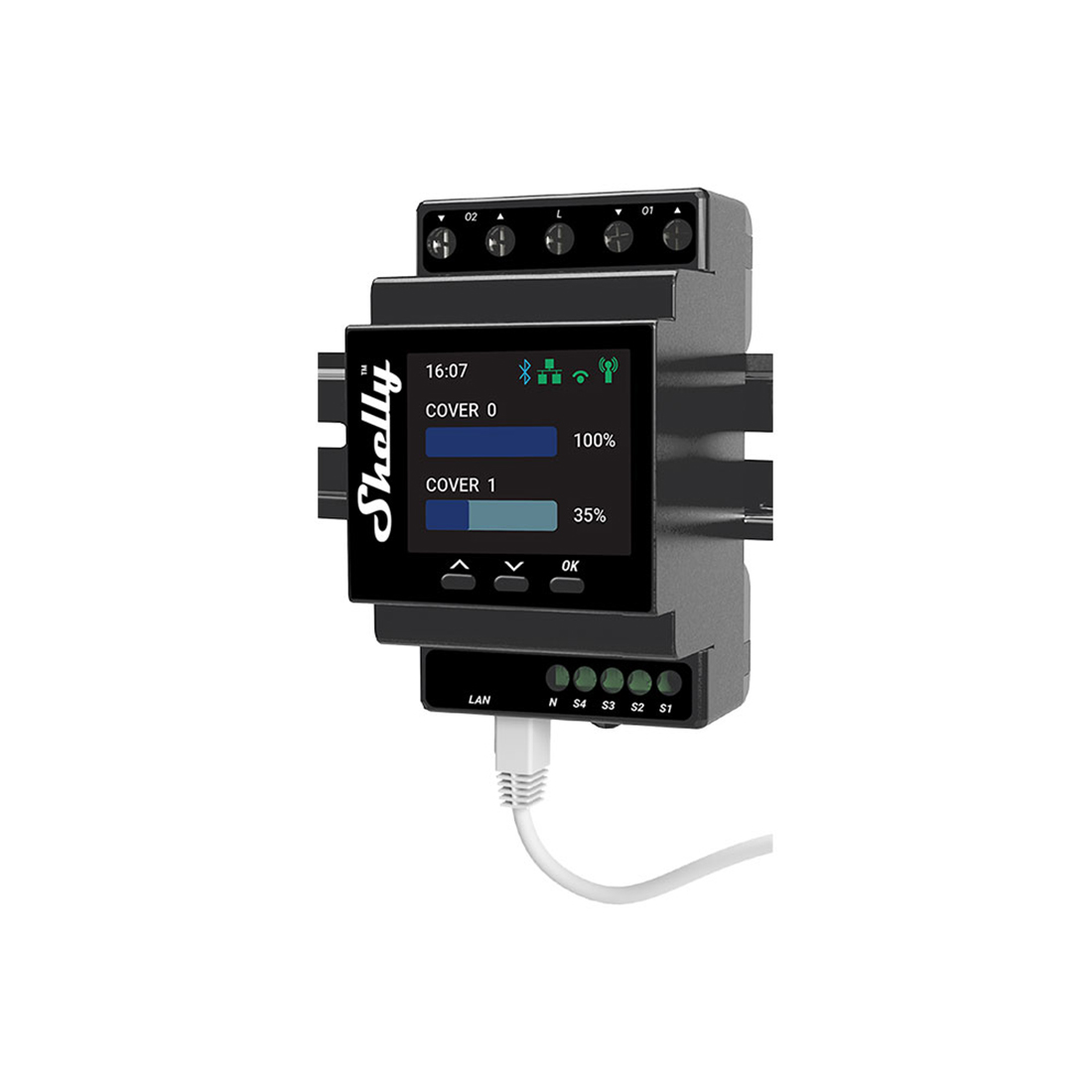

Shelly Pro Dual Cover PM


MSRP: $106.99
Manufacturer: Shelly Products
SKU: 3800235268124

Features

  • LAN, Wi-Fi, and Bluetooth connection
  • 2 covers/shutters, 16 A each
  • Power metering on each cover and free storage data
  • Cover (roller) control - roller shutters, awnings, gates, barriers, sliding doors, curtains, garage doors, bi-directional AC motors
  • Single-phase control
  • Easy control through the Shelly app, various protocols, and platforms, as well as voice assistants

Specs

  • Inputs
    • 4 switch/button inputs on screw terminals: S1, S2, S3, S4
    • 2 power supply inputs on screw terminals: 1 N and 1 L
  • Outputs
    • 4 relay outputs: ? and ? of O1, ? and ? of O2
  • Ethernet port: 1 RJ45 connector
  • Mounting: DIN rail
  • Screw terminals max torque: 0.4 Nm / 3.5 lbin (green connectors)
  • Conductor cross section: 0.5 to 2.5 mm² / 20 to 14 AWG (green connectors)
  • Conductor stripped length: 6 to 7 mm / 0.24 to 0.28 in (green connectors)
  • Shell material: Plastic
  • Color: Dark gray
  • Power supply voltage AC: 110 - 240 V
  • Power supply voltage DC: N/A
  • Power consumption: < 3 W
  • Max switching voltage AC: 240 V
  • Max switching voltage DC: N/A
  • Max switching current AC: 16 A per output
  • Max switching current DC: N/A
  • Voltmeter (AC)
  • Ammeter (AC)
  • Internal temperature sensor
  • RF band: 2400 - 2495 MHz
  • Max. RF power: <20 dBm
  • Wi-Fi protocol: 802.11 b/g/n
  • Wi-Fi Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
  • Bluetooth Protocol: 4.2
  • Bluetooth Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
  • CPU: ESP32-D0WDQ6
  • Flash: 8 MB

Dimensions

  • 3.78" x 2.01" x 2.32" (±0.02")
  • 5.3 oz
