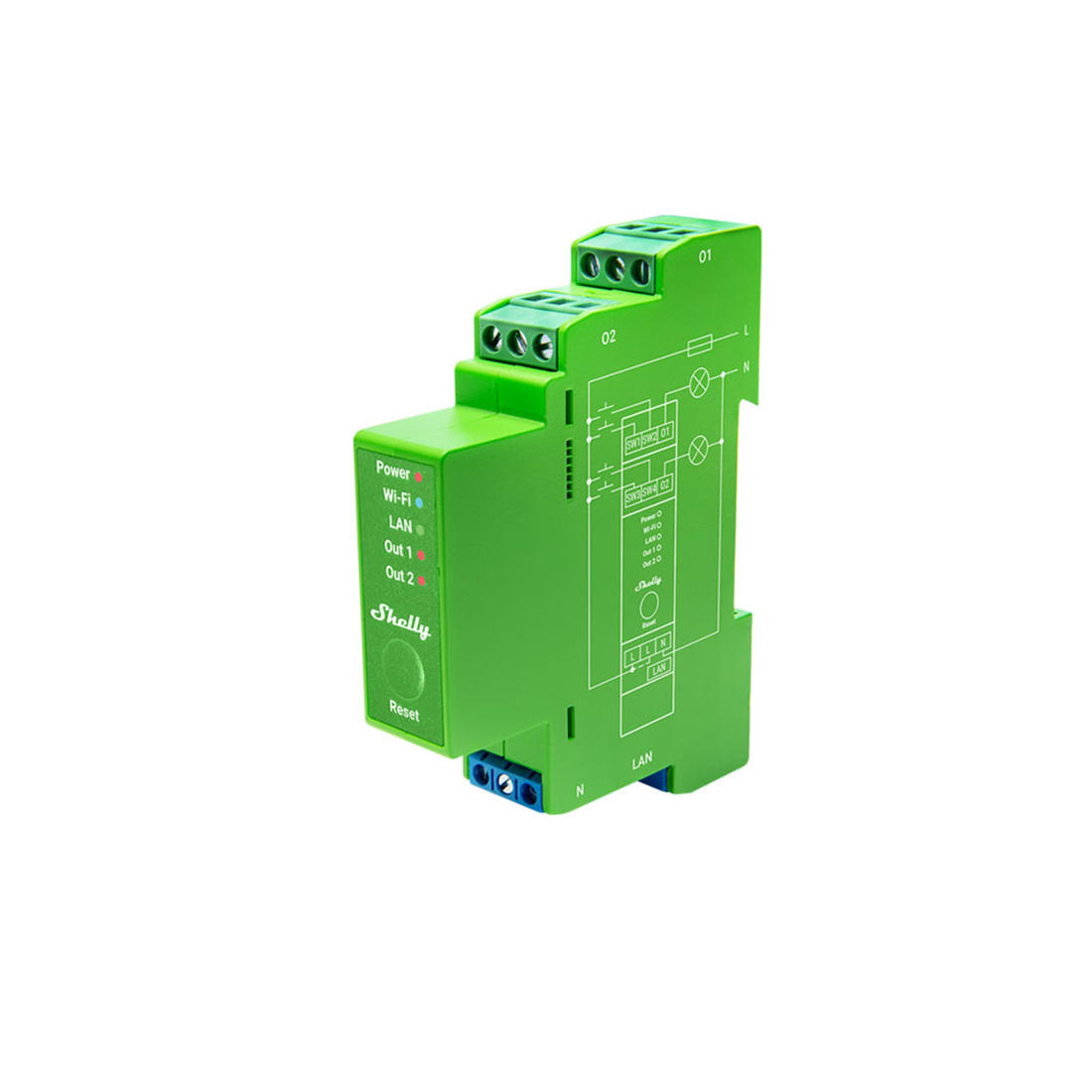

Shelly Pro Dimmer 2PM


MSRP: $70.49
Manufacturer: Shelly Products
SKU: 3800235268179

Features

  • DIN rail mountable
  • Automatic dimming calibration: Provides smooth dimming throughout the entire range
  • Switch/Button input mode: Allows flexible input control through switches or buttons
  • One/dual button dimming control: Allows to use the full functionalities of the Device for dimming control with any wall switch configuration
  • Night mode: Enables to set a specific brightness of input lights during nighttime
  • Min/Max brightness: Reframes the range of the dimming signal to get more precise brightness control on the output
  • Button fade rate: Controls how quickly the output brightness changes while holding the button(s)
  • Transition duration: Controls the time for dimming from 0 to 100 %
  • Safety: ?ver current/voltage/power protections
  • Weekly schedules: Supports daily schedules and routines, including setting of brightness, transition duration, and flip value of the dimming signal
  • Auto on/off timers: Enables auto on/off timer setting
  • Local actions: Allows creating automation scenarios within the local Wi-Fi network, including setting of brightness, transition duration, and flip value of the dimming signal
  • Webhooks: Support automation through lightweight, event-driven communication with other devices
  • BLE Gateway: Facilitates communication between BLE and Wi-Fi-enabled devices
  • Wi-Fi Range Extender: Retransmits the Wi-Fi signal and extends its reach
  • Scripting: Allows creating automation scenarios through scripts
  • Compatibility: Highly compatible with 3rd Party home automation systems
  • No need for hub: Ready for use locally or remotely via Shelly Smart Control or 3rd Party systems

Specs

  • Screw terminals max torque: 0.4 Nm / 3.54 lbin
  • Conductor cross section:
    • 0.5 to 2.5 mm² / 20 to 14 AWG (green connectors)
    • 0.5 to 1.5 mm² / 20 to 16 AWG (blue connector) (solid, stranded, and bootlace ferrules)
  • Conductor stripped length:
    • 6 to 7 mm / 0.24 to 0.28 in (green connectors)
    • 5 to 6 mm / 0.20 to 0.24 in (blue connector)
  • Mounting: DIN rail
  • Shell material: Plastic
  • Shell color: Lime
  • Power supply: 110 - 240 V~ 50/60 Hz
  • Power consumption: < 2 W
  • External protection:
    • 10 A, tripping characteristic B or C,
    • 6 kA interrupting rating,
    • Energy limiting class 3
  • Dimming type: Trailing edge
  • Max. output power: 200 W per channel
  • Voltmeter (AC)
  • Ammeter (AC)
  • Power and energy meters
  • Internal-temperature sensor
  • Wi-Fi
    • Protocol: 802.11 b/g/n
    • RF band: 2401 - 2483 ?Hz
    • Max. RF power: < 20 dBm
    • Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
  • Bluetooth
    • Protocol: 4.2
    • RF band: 2400 - 2483.5 MHz
    • Max. RF power: < 4 dBm
    • Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
  • CPU: ESP32-D0WDQ6
  • Flash: 8 MB

Dimensions

  • 3.70" x 0.75" x 2.71"
  • 2.7 oz
