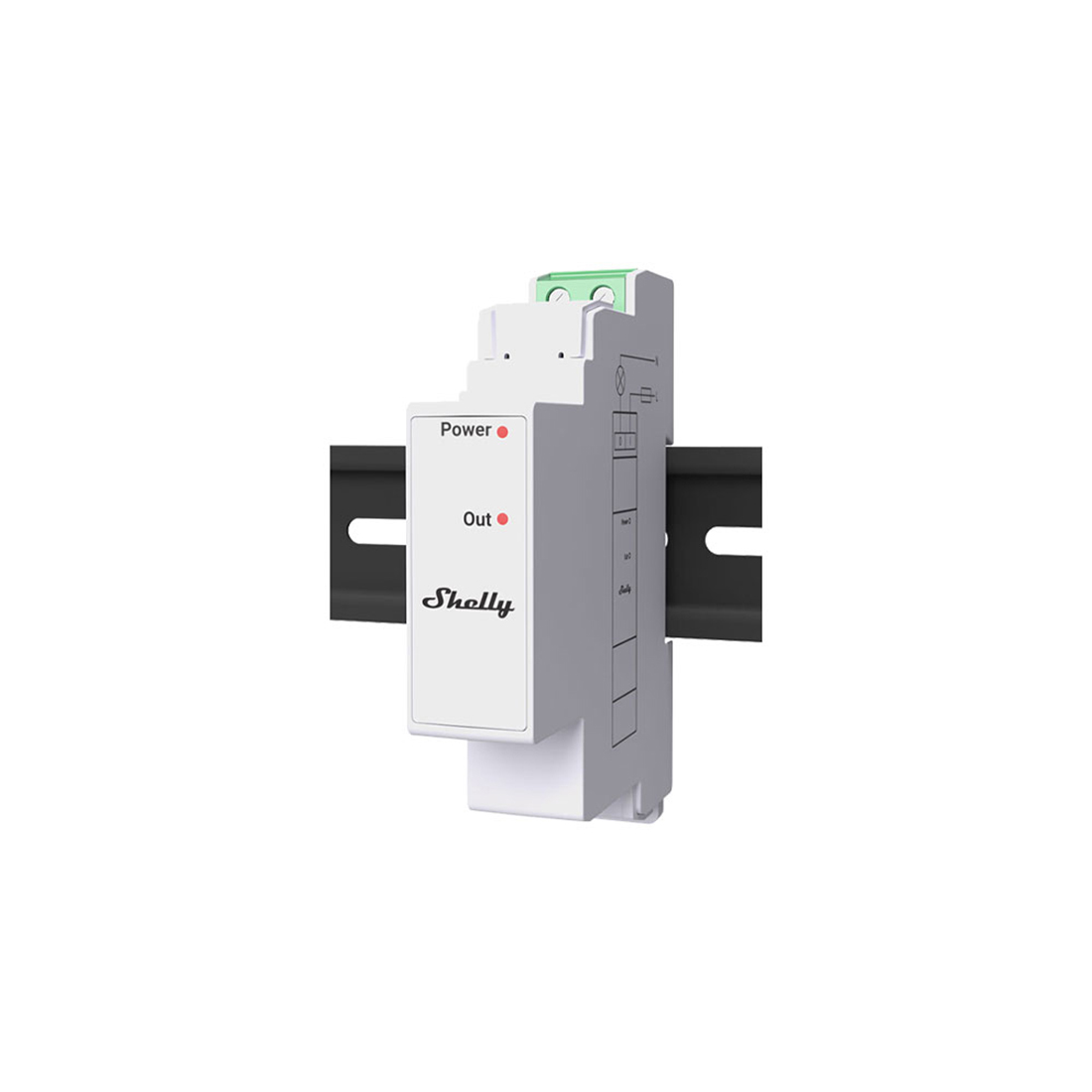

Shelly Pro 3EM Switch Add-On


MSRP: $22.99
Manufacturer: Shelly Products
SKU: 3800235268131

Features

  • Dry contacts
  • DIN-rail mountable

Specs

  • Mounting: DIN rail, attached to a Shelly Pro 3EM
  • Screw terminals max torque: 0.4 Nm / 4.43 lbin
  • Conductor cross section: 0.5 to 2.5 mm2 / 20 to 14 AWG (solid, stranded and bootlace lugs)
  • Conductor stripped length: 6 to 7 mm / 0.24 to 0.28 in
  • Shell material: Plastic
  • Color: White
  • Power supply voltage AC: N/A
  • Power supply voltage DC: 3.3 V and 12 V (from Shelly Pro 3EM device)
  • Power consumption: < 1 W
  • Internal-temperature sensor
  • Max switching voltage AC: 240 V
  • Max switching voltage DC: 30 V
  • Max switching current AC: 2 A
  • Max switching current DC: 2 A

Dimensions

  • 3.70" x 0.75" x 2.71" (±0.02")
  • 0.70 (±0.05) oz

Features

  • Dry contacts
  • DIN-rail mountable
