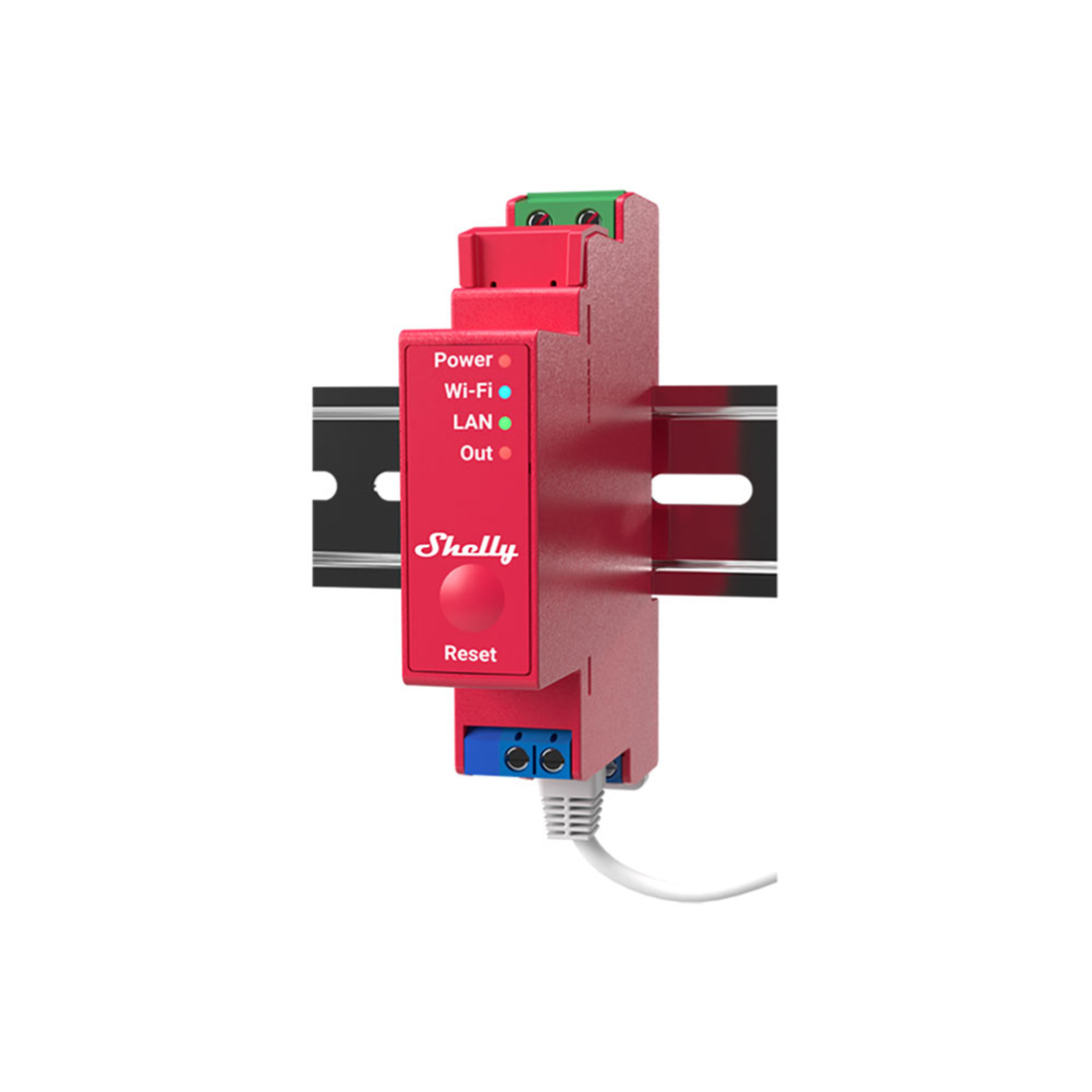

Shelly PRO 1PM CE Version


MSRP: $66.99
Manufacturer: Shelly Products
SKU: 3800235268018

Features

  • LAN, Wi-Fi, and Bluetooth connection
  • 1 output, 16A
  • Power metering
  • Overpower and overvoltage protection of the load
  • Easy control through the Shelly app, various protocols, and platforms, as well as voice assistants
  • Supports KNXnet / IP communication

Specs

  • Mounting: DIN rail
  • Screw terminals max torque: 0.4 Nm / 3.54 lbin
  • Conductor cross section:
    • 0.5 to 2.5 mm² / 20 to 14 AWG (green connector)
    • 0.5 to 1.5 mm² / 20 to 16 AWG (blue connectors)
  • Conductor stripped length:
    • 6 to 7 mm / 0.24 to 0.28 in (green connector)
    • 5 to 6 mm / 0.20 to 0.24 in (blue connectors)
  • Shell material: Plastic
  • Color: Red
  • Power supply voltage AC: 110 - 240 V
  • Min. operating voltage AC: 90 V
  • Max. operating voltage AC: 264 V
  • Power consumption: < 3 W
  • Max switching voltage AC: 240 V
  • Max switching voltage DC: N/A
  • Max switching current AC: 16 A
  • Max switching current DC: N/A
  • Voltmeter (AC)
  • Ammeter (AC)
  • Internal-temperature sensor
  • RF band: 2400 - 2495 MHz
  • Max. RF power: <20 dBm
  • Wi-Fi protocol: 802.11 b/g/n
  • Wi-Fi Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
  • Bluetooth Protocol: 4.2
  • Bluetooth Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
  • CPU: ESP32-D0WDQ6
  • Flash: 8 MB

Dimensions

  • 3.70" x 0.75" x 2.71" (±0.02)

Features

  • LAN, Wi-Fi, and Bluetooth connection
  • 1 output, 16A
  • Power metering
  • Overpower and overvoltage protection of the load
  • Easy control through the Shelly app, various protocols, and platforms, as well as voice assistants
  • Supports KNXnet / IP communication
