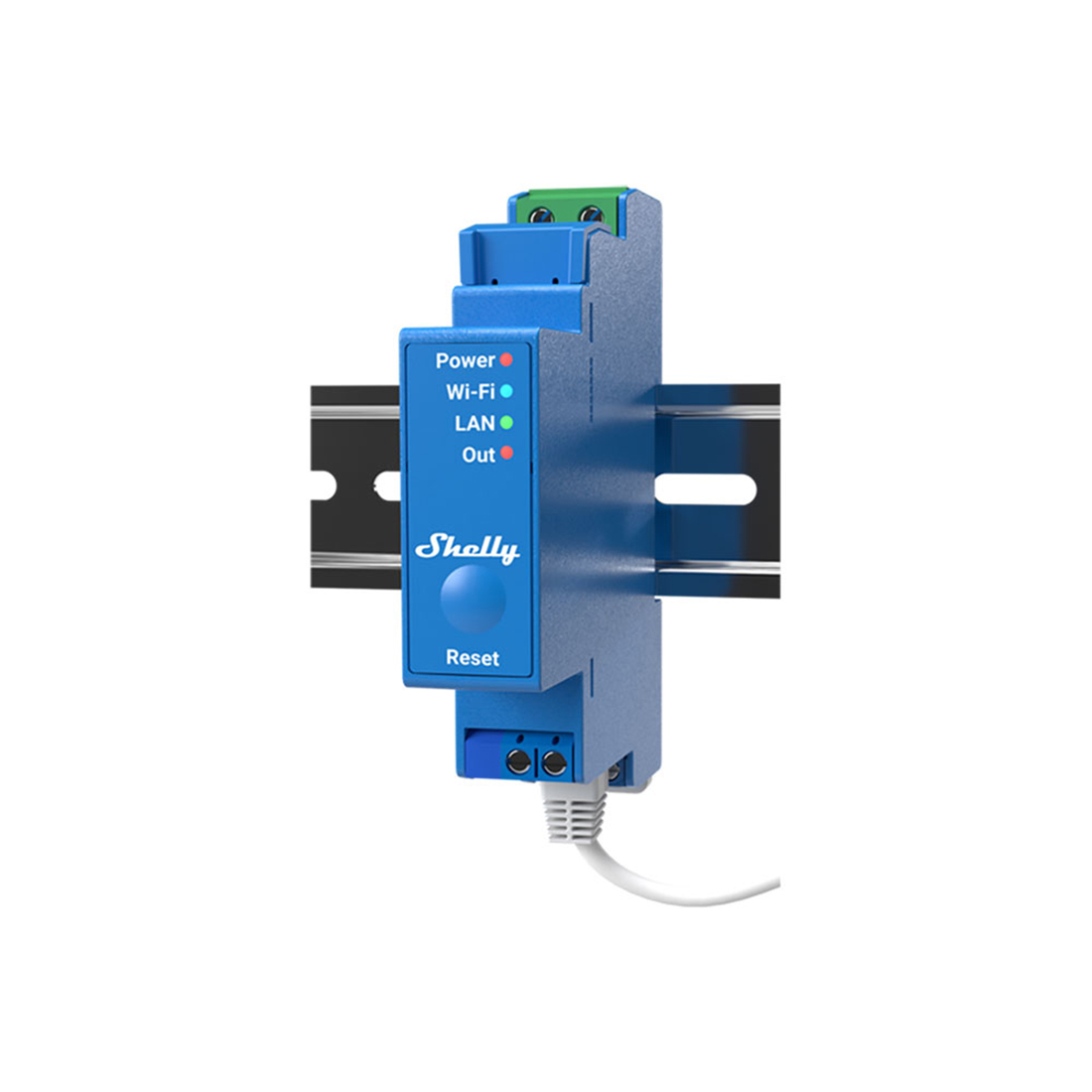

Shelly PRO 1 CE Version


MSRP: $54.49
Manufacturer: Shelly Products
SKU: 3800235268001

Features

  • LAN, Wi-Fi, and Bluetooth connection
  • 1 output, 16A
  • Dry contacts
  • Easy control through the Shelly app, various protocols, and platforms, as well as voice assistants
  • Supports KNXnet / IP communication

Specs

  • Inputs
    • 2 switch/button inputs on screw terminals: SW1 and SW2
    • 2 power supply inputs on screw terminals: 1 N and 1 L
    • 1 relay input: I
  • Outputs
    • 1 relay output: O
  • Ethernet port
    • 1 RJ45 connector
  • Mounting: DIN rail
  • Screw terminals max torque: 0.4 Nm / 3.54 lbin
  • Conductor cross section:
    • 0.5 to 2.5 mm² / 20 to 14 AWG (green connector)
    • 0.5 to 1.5 mm² / 20 to 16 AWG (blue connectors)
  • Conductor stripped length:
    • 6 to 7 mm / 0.24 to 0.28 in (green connector)
    • 5 to 6 mm / 0.20 to 0.24 in (blue connectors)
  • Shell material: Plastic
  • Color: Blue
  • Power supply voltage AC: 110 - 240 V
  • Power supply voltage DC: N/A
  • Power consumption: < 3 W
  • Max switching voltage AC: 240 V
  • Max switching voltage DC: N/A
  • Max switching current AC: 16 A
  • Max switching current DC: N/A
  • Internal-temperature sensor: Yes
  • RF band: 2400 - 2495 MHz
  • Max. RF power: <20 dBm
  • Wi-Fi protocol: 802.11 b/g/n
  • Wi-Fi Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
  • Bluetooth Protocol: 4.2
  • Bluetooth Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
  • CPU: ESP32-D0WDQ6
  • Flash: 8 MB

Dimensions

  • 3.70" x 0.75" x 2.71" (±0.02")
  • 2.22 oz

Features

  • LAN, Wi-Fi, and Bluetooth connection
  • 1 output, 16A
  • Dry contacts
  • Easy control through the Shelly app, various protocols, and platforms, as well as voice assistants
  • Supports KNXnet / IP communication

Customers who bought this item also bought
Picture of Lutron Pico Remote Control for Audio-Sonos Endorsed (white)

Lutron Pico Remote Control for Audio-Sonos Endorsed (white)

PJ2-3BRL-GWH-A02
Lutron Pico Remote Control for Audio-Sonos Endorsed (white)
MSRP: $58.80
Picture of Lutron RA2 Select and RadioRA2 Wireless Repeater

Lutron RA2 Select and RadioRA2 Wireless Repeater

L-REPPRO-BL
Lutron RA2 Select and RadioRA2 Wireless Repeater
MSRP: $252.00
Picture of Samsung 43" The Frame 4K QLED (60Hz)

Samsung 43" The Frame 4K QLED (60Hz)

QN43LS03FAFXZA

MSRP: $899.99
Picture of Samsung 50" The Frame 4K QLED TV (60Hz)

Samsung 50" The Frame 4K QLED TV (60Hz)

QN50LS03FAFXZA

MSRP: $1099.99
Picture of Samsung 43" 4K QN70 NeoQLED TV 60Hz

Samsung 43" 4K QN70 NeoQLED TV 60Hz

QN43QN70HAFXZA
Mini LEDs are made better with Quantum Dots to deliver astonishing brightness and 100% color volume. Precise backlighting unlocks captivating contrast with dazzling highlights, while advanced AI processing dynamically adjusts how your content looks and sounds to augment what you're watching, whether it's a thrilling live soccer match or your favorite old movie.
MSRP: $599.99
Picture of Lutron RA2 Select Main Repeater

Lutron RA2 Select Main Repeater

RR-SEL-REP2-BL
Lutron RA2 Select Main Repeater
MSRP: $384.00

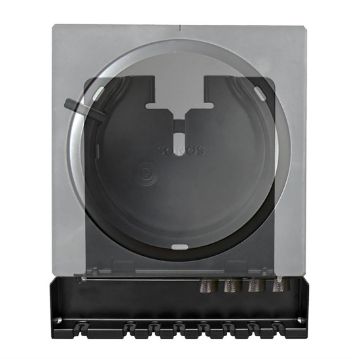

Picture of Sanus Slim Wall Mount Designed for Sonos Amp
