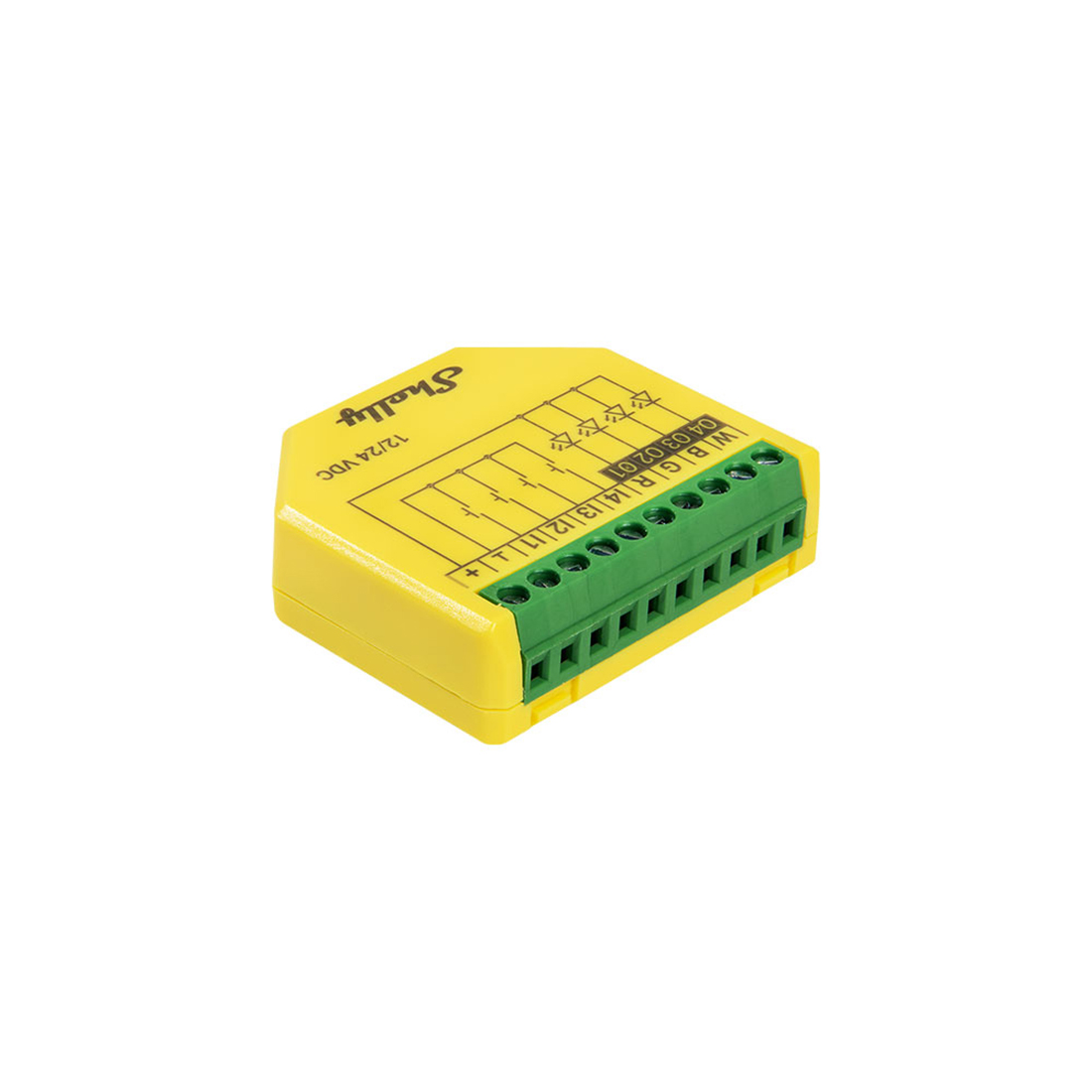

Shelly Plus RGBW PM


MSRP: $31.49
Manufacturer: Shelly Products
SKU: 3800235265635

Features

  • BLE Gateway: Facilitates communication between BLE and Wi-Fi-enabled devices
  • Wi-Fi Range extender: Retransmits the Wi-Fi signal and extends its reach
  • Scripting: Allows creating automation scenarios through scripts
  • Basic Schedules: Supports weekly schedules and routines, including setting of brightness, transition duration, and flip value of the dimming signal
  • Advanced Schedules: Supports detailed schedules and routines throughout the year with a broad range of time adjustments from seconds to moths, including setting of brightness, transition duration, and flip value of the dimming signal
  • Shelly Plus Add-On compatible: The Device supports connection with the sensor interface to the Shelly Plus devices
  • Auto on/off timers: Enables auto on/off timer setting
  • Local actions: Allows creating automation scenarios within the local Wi-Fi network, including setting of brightness, transition duration, and flip value of the dimming signal
  • Webhooks: Supports automation through lightweight, event-driven communication with other devices
  • Independent control for each output (channel) in Lights x 4 profile: Provides separate control for each output for maximum flexibility
  • Power measurement: Precise monitoring of energy consumption
  • Independent control for RGB and White: Color brightness and white brightness now can be controlled independently with dimming up/down
  • Night Mode: Enables to set a specific brightness of input lights during nighttime
  • Switch/Button/Analog input mode: Allows flexible input control through switches, buttons or potentiometers (10kO analog input is recommended)
  • Min/Max brightness: Reframes the range of the dimming signal to get more precise brightness control on the output. Affects RGB in RGBW and RGB; brightness in Lights x 4
  • Button fade rate: Controls how quickly the output brightness changes while holding the button(s)

Specs

  • Inputs
    • 4 switch/button inputs on screw terminals: I1 and I4
    • 2 power supply inputs on screw terminals: (+) and (?)
  • Outputs
    • 4 outputs on screw terminals: O1, O2, O3 and O4. Same are used for R, G, B and W
  • Supported load types
    • 12/24 V mono-color LED strips
    • 12/24 V RGB LED strips
    • 12/24 V RGBW LED strips
  • Screw terminals max torque: 0.2 Nm / 1.8 lbin
  • Conductor cross section: 0.1 to 1 mm² / 30 to 16 AWG (solid, stranded, and bootlace ferrules)
  • Conductor stripped length: 6 mm / 0.24 in
  • Mounting: In-wall
  • Shell material: Plastic
  • Shell color: Yellow
  • Connectors color: Green
  • Ambient working temperature: -20 °C to 40 °C / -5 °F to 105 °F
  • Humidity: 30 % to 70 % RH
  • Power supply: 12/24 VDC
  • Power consumption: < 1.2 W
  • Max. control voltage: 24 VDC
  • Max. control current: 4 A per channel (10 A total)
  • PWM frequency: 22 kHz
  • Voltmeter: 0-24 V
  • Voltmeter accuracy: ± 5%
  • Ammeter: 0-10 A
  • Ammeter accuracy: ± 10%
  • Power and energy meters: Power measurement
  • No load threshold: 0.5 VA per channel
  • Internal-temperature sensor: Yes
  • Radio
    • Protocol: 802.11 b/g/n
    • RF band: 2401 - 2495 MHz
    • Max. RF power: < 20 dBm
    • Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
  • Bluetooth
    • Protocol: 4.2
    • RF band: 2400 - 2483.5 MHz
    • Max. RF power: < 4 dBm
    • Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
  • CPU: ESP-Shelly C38F
  • Clock frequency: 160 Mhz
  • RAM: 400 KB
  • Flash: 4 MB

Dimensions

  • 1.65" x 1.46" x 0.66" (±0.02")
  • 0.6 oz
