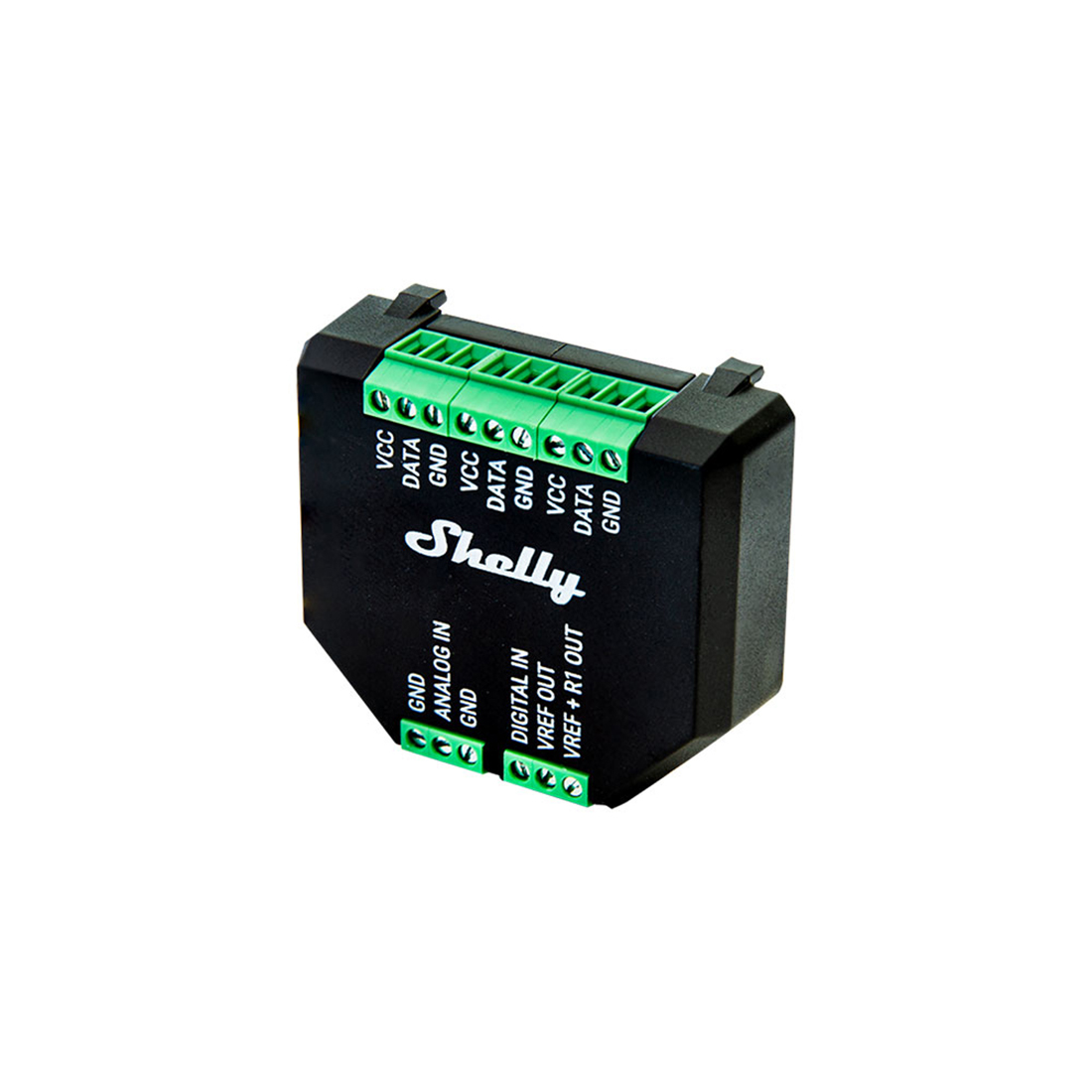

Shelly Plus Add-on


MSRP: $15.99
Manufacturer: Shelly Products
SKU: 3800235266427

Features

  • Shelly Plus Add-On is a Wi-Fi and Bluetooth gadget for all your Shelly Plus devices, can be used with up to five DS18B20 (temperature) sensors or one DHT22 (humidity) sensor, the device has an analog and a digital input and is compatible with most Arduino sensors
  • Irrigation only when needed - Having a beautiful garden is not an easy task and automating your irrigation system can save you time and optimize your costs; Together with a soil moisture sensor, Shelly Plus Add-on can trigger Shelly Plus 1 to turn on the irrigation only when necessary, always skipping the rainy days
  • Control All your Shelly Plus Devices - Using the Shelly Plus Add-on and two DS18B20 sensors, you can easily measure the precise temperature inside your aquarium; Shelly Plus Add-on with a rain sensor can trigger Shelly Plus 2PM to open the awning just in time to protect your guests and many other combinations that can make you comfortable at your home
  • Shelly Customer Service- Shelly is one of the fastest-growing Smart Home brands in the world with devices, providing solutions for the automation of private homes, buildings and businesses; We provide our customers with professional support and a 5 year device warranty
  • Shelly Smart Control App will help you control your Shelly devices remotely and will send notifications for all automated events in your home; You can easily configure devices and manage their settings individually, or you can create personalized scenes by combining Shelly devices to trigger certain actions in your home automation

Specs

  • Inputs
    • 1 analog input: ANALOG IN
    • 1 digital input: DIGITAL IN
  • Output
    • 1 reference voltage output: VREF OUT
    • 1 reference voltage through a pull-up resistor output: VREF + R1 OUT
    • 2 ground terminals: GND
  • Screw terminals max torque: 0.1 Nm / 0.89 lbIn
  • Conductor cross section: max. 1 mm² / 17 AWG
  • Conductor stripped length: 4.5 mm / 0.18 in
  • Power supply voltage AC: N/A
  • Power supply voltage DC: 3.3 V (from Shelly plus device)
  • Power consumption: < 0.5 W (without sensors)
  • VCC max. current: 10 mA
  • VREF OUT max. current: 1 mA
  • VREF+R1 OUT resistor: 10 kO
  • Digital input: -15 V to 0.5 V (True) / 2.5 V to 15 V (False) (Logic can be inverted in the digital input settings)
  • Analog input range: 0 to 100%
  • Analog input report threshold: 1% (Can be configured in the analog input / voltmeter settings)
  • Voltmeter range: 0 to 10 V
  • Voltmeter report threshold: 0.1 V (Can be configured in the analog input / voltmeter settings)
  • Analog input / Voltmeter accuracy: Better than ±5%
  • Shelly Plus Addon supporting devices:
    • Shelly Plus devices:
      • Shelly Plus 1
      • Shelly Plus 1PM
      • Shelly Plus 1 UL
      • Shelly Plus 1PM UL
      • Shelly Plus 2PM
      • Shelly Plus 2PM UL
      • Shelly Plus i4
      • Shelly Plus i4DC
      • Shelly Plus 0-10V Dimmer PM
      • Shelly Plus RGBW PM
    • Shelly Gen3 devices:
      • Shelly 1 Gen3
      • Shelly 1PM Gen3
      • Shelly 2PM Gen3
      • Shelly Shutter
      • Shelly i4 Gen3
      • Shelly DALI Dimmer Gen3
      • Shelly Dimmer 0/1-10V PM Gen3
      • Shelly EM Gen3
    • Shelly Gen4 devices:
      • Shelly 1 Gen4
      • Shelly 1PM Gen4
      • Shelly 2PM Gen4
  • Temperature reading: Depends on the DS18B20 or DHT22 sensors
  • Humidity reading: Depends on the DHT22 sensor

Dimensions

  • 1.46" x 1.65" x 0.59" (±0.02")
  • 3.70 oz
