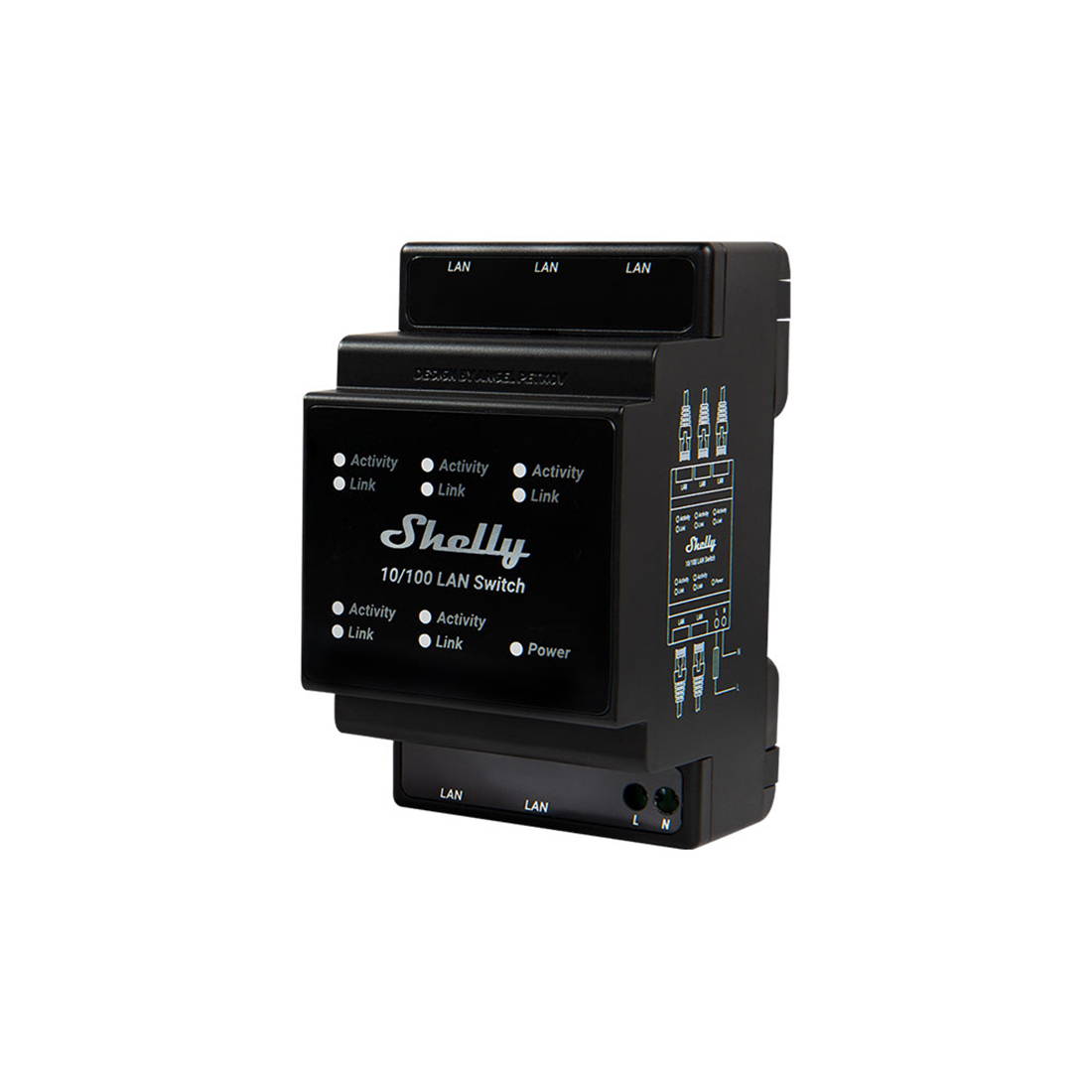

Shelly LAN Switch


MSRP: $56.49
Manufacturer: Shelly Products
SKU: 3800235266830

Features

  • DIN - mountable: Designed to meet the global DIN rail standardization and fit perfectly with all your Pro relays
  • Direct AC Power: Power the device at 110-230 V~ 50/60 Hz, eliminating the need for adapters
  • Plug & Play: Hassle-free installation and configuration, allowing you to quickly set up and optimize your network
  • 5 RJ45 ports
  • 10/100mbps
  • LED indicators
  • 110V - 230V power supply; No need for additional adapters

Specs

  • Screw terminals max torque: 0.4 Nm / 3.54 lbin
  • Conductor cross section: 0.5 to 2.5 mm² / 20 to 14 AWG (solid, stranded, and bootlace ferrules)
  • Conductor stripped length: 6 to 7 mm / 0.24 to 0.28 in
  • Mounting: DIN rail
  • Shell material: Plastic
  • Shell color: Black
  • Connectors color: Green
  • Power supply: 110 - 240 V~ 50/60 Hz
  • Power consumption: < 1 W
  • External protection: Tripping characteristic B or C, 16A max. rated current, min. 6 kA interrupting rating, energy limiting class 3

Dimensions

  • 3.78" x 2.01" x 2.32"
  • 3 oz
