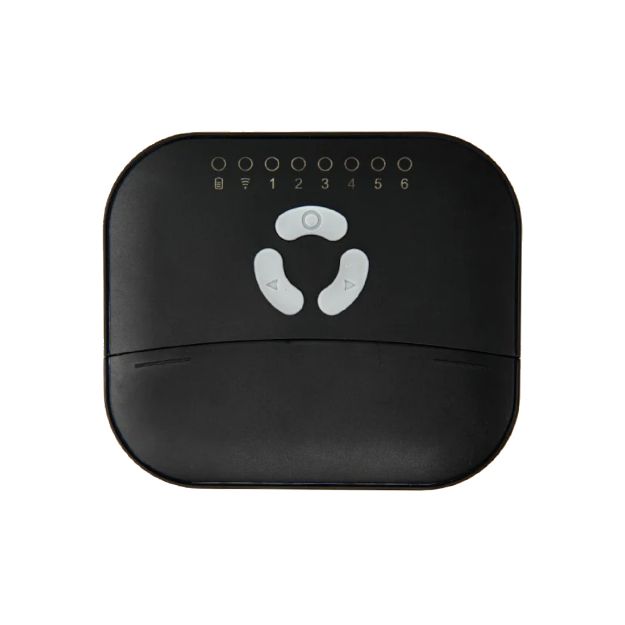

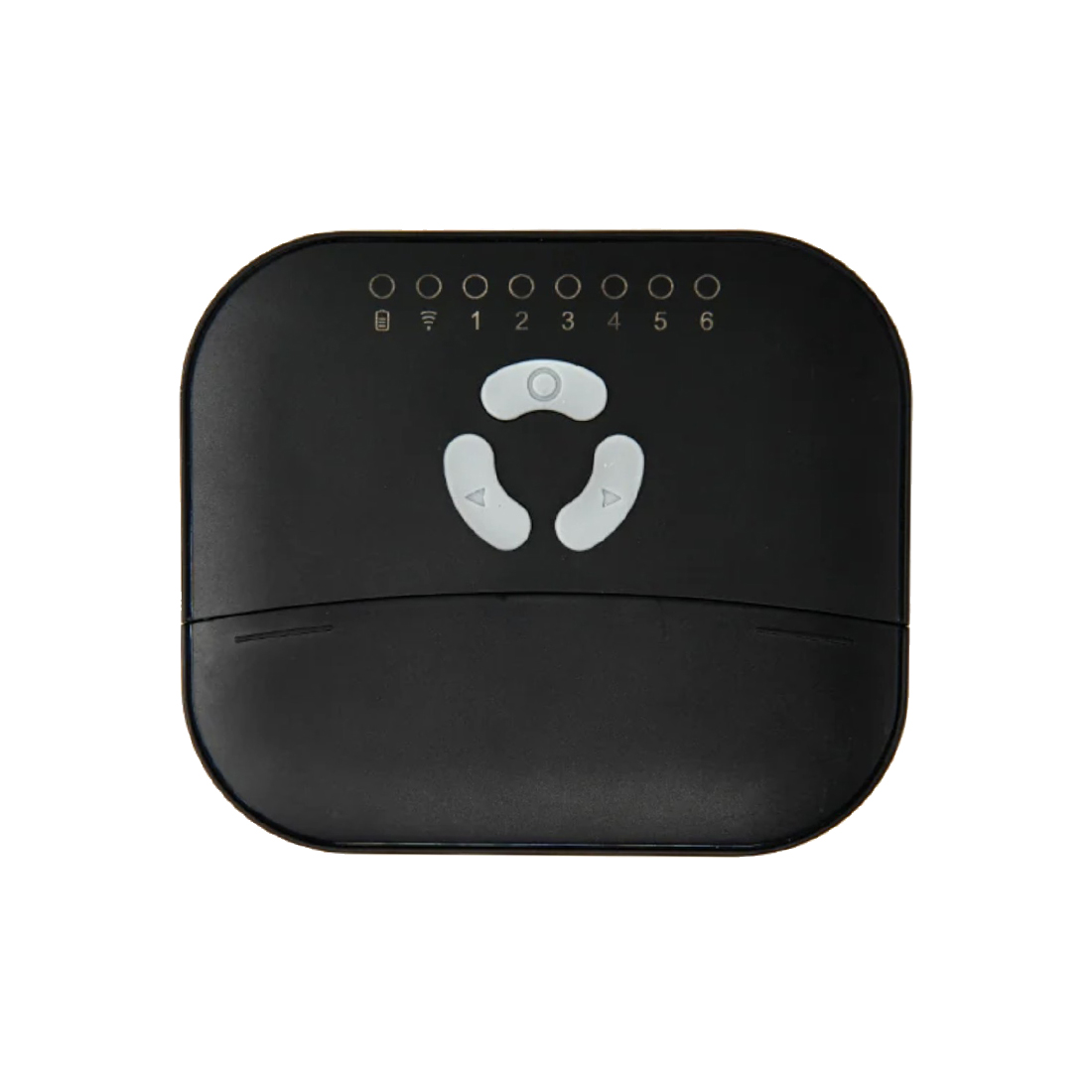

Shelly FrankEver Sprinkler Controller FK-06X USA version

6-zone Wi-Fi enabled Smart Sprinkler Controller – Powered by Shelly offers precise control over your irrigation system using advanced schedules and weather APIs, utilizing Shelly’s cloud-based and local capabilities.
MSRP: $124.95
Manufacturer: Shelly Products
SKU: 3800238073152

Features

  • Controls up to 6 irrigation zones independently
  • 24 VAC outputs for water valve control
  • Standalone operation: on-device buttons & LEDs
  • Cloud management via Shelly Smart Control app
  • Historical weather information to prevent overwatering
  • Advanced scheduling, zone sequencing and automation
  • No hub required!
  • Wi-Fi and Bluetooth connectivity
  • Wi-Fi range extender & BLE gateway
  • Local web interface for direct device access
  • All standard capabilities of Shelly devices

Specs

Input/Output Rating of the Controller 24 V AC, 2000 mA
Adapter Input USA: 120 V AC, 60 Hz
EU: 230 V AC, 50 Hz
Adapter Output 24 V AC, 2000 mA
Wi-Fi Protocol: 802.11 b/g/n
RF band: 2412 - 2484 MHz
Max. RF power: < 20 dBm
Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
Bluetooth Protocol: 5
RF band: 2402 - 2480 MHz
Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
Shell material Plastic
Mounting Wall-mounted
Schedules 20
Webhooks (URL actions) 20 with 5 URLs per hook
Scripting No
MQTT Yes
UDP Yes
Advanced schedules Yes
KVS (Key-Value Store) Yes
Operating temperature and humidity -10°C to 55°C
0% to 90% RH, non-condensing



Dimensions

HxWxD 3.78" x 4.41" x 1.10"
Weight 4.44 oz



Product Files
MANUALS

Features

  • Controls up to 6 irrigation zones independently
  • 24 VAC outputs for water valve control
  • Standalone operation: on-device buttons & LEDs
  • Cloud management via Shelly Smart Control app
  • Historical weather information to prevent overwatering
  • Advanced scheduling, zone sequencing and automation
  • No hub required!
  • Wi-Fi and Bluetooth connectivity
  • Wi-Fi range extender & BLE gateway
  • Local web interface for direct device access
  • All standard capabilities of Shelly devices
