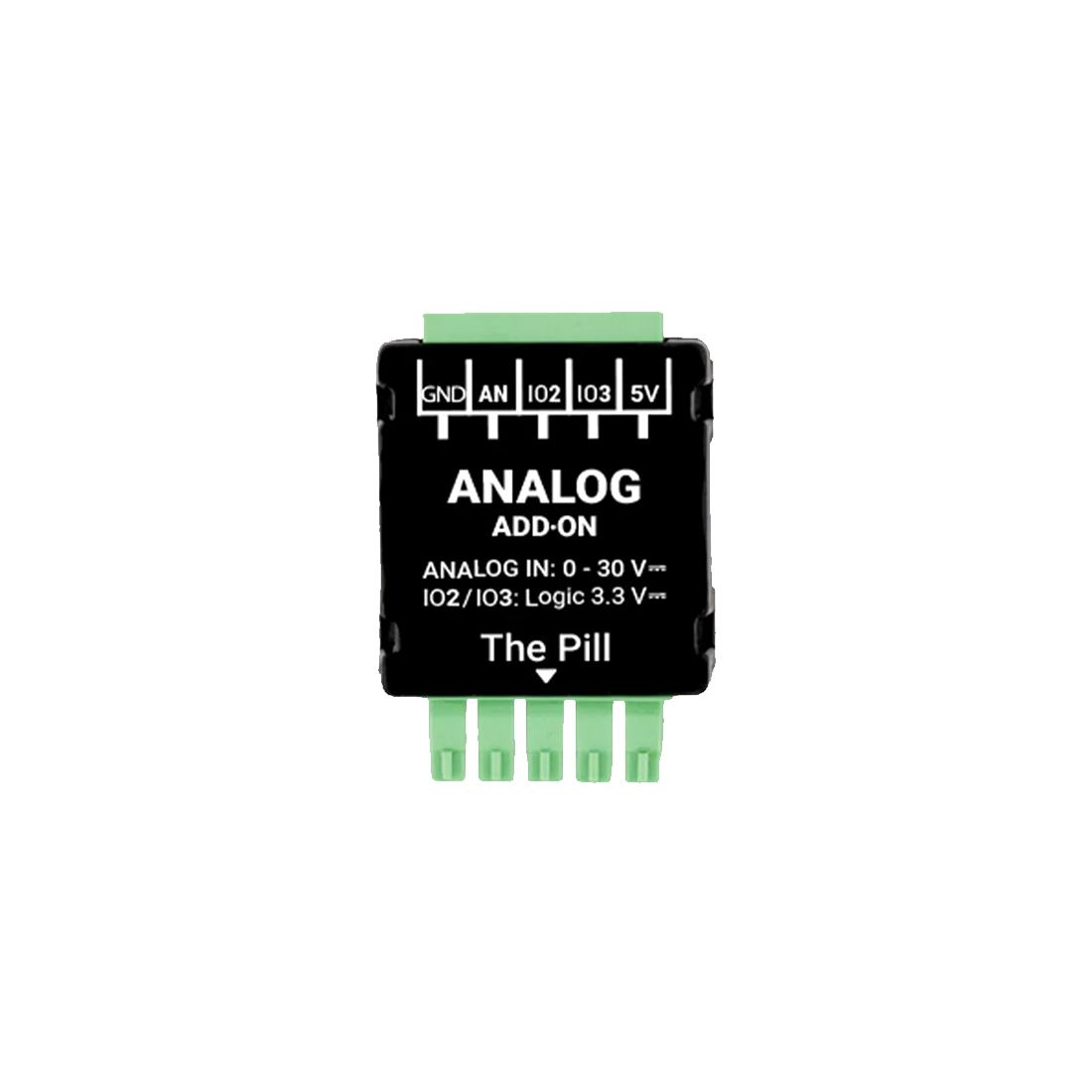

Shelly Analog 0 - 30V Add-on

Add-on module for The Pill by Shelly that measures analog sensors and DC voltages up to 30 V. Ideal for monitoring batteries, power supplies, and other low-voltage devices.
MSRP: $6.99
Manufacturer: Shelly Products
SKU: 3800238073596

Features

  • Measurement range: 0-30 V DC
  • Extends The Pill’s measurement range for sensors and batteries
  • Compatible via 5-Terminal Add-on
  • 1 Analog Input (AN) + 2 configurable Digital IOs (3.3 V logic)
  • 5 V power output for connected sensors

Specs

Voltmeter range (DC) 0 V - 30 V
Voltmeter accuracy ±(2% + 5d)
Digital inputs triggering voltage Active LOW;
Trigger low: < 0.83 V
Trigger high: > 2.48 V
Digital inputs max. voltage 3.3 V
Max. switching voltage 3.3 V (logic-level)
Max. switching current 20 mA
Ambient working temperature 0 to 40 °C / 32 to 105°F
Storage temperature -20°C to 40°C / -5°F to 105°F
Humidity 30 % to 70 % RH
Max. altitude 2000 m / 6562 ft



Dimensions

HxWxD 1.44" x 1.04" x 0.45"
Weight 0.28 oz
