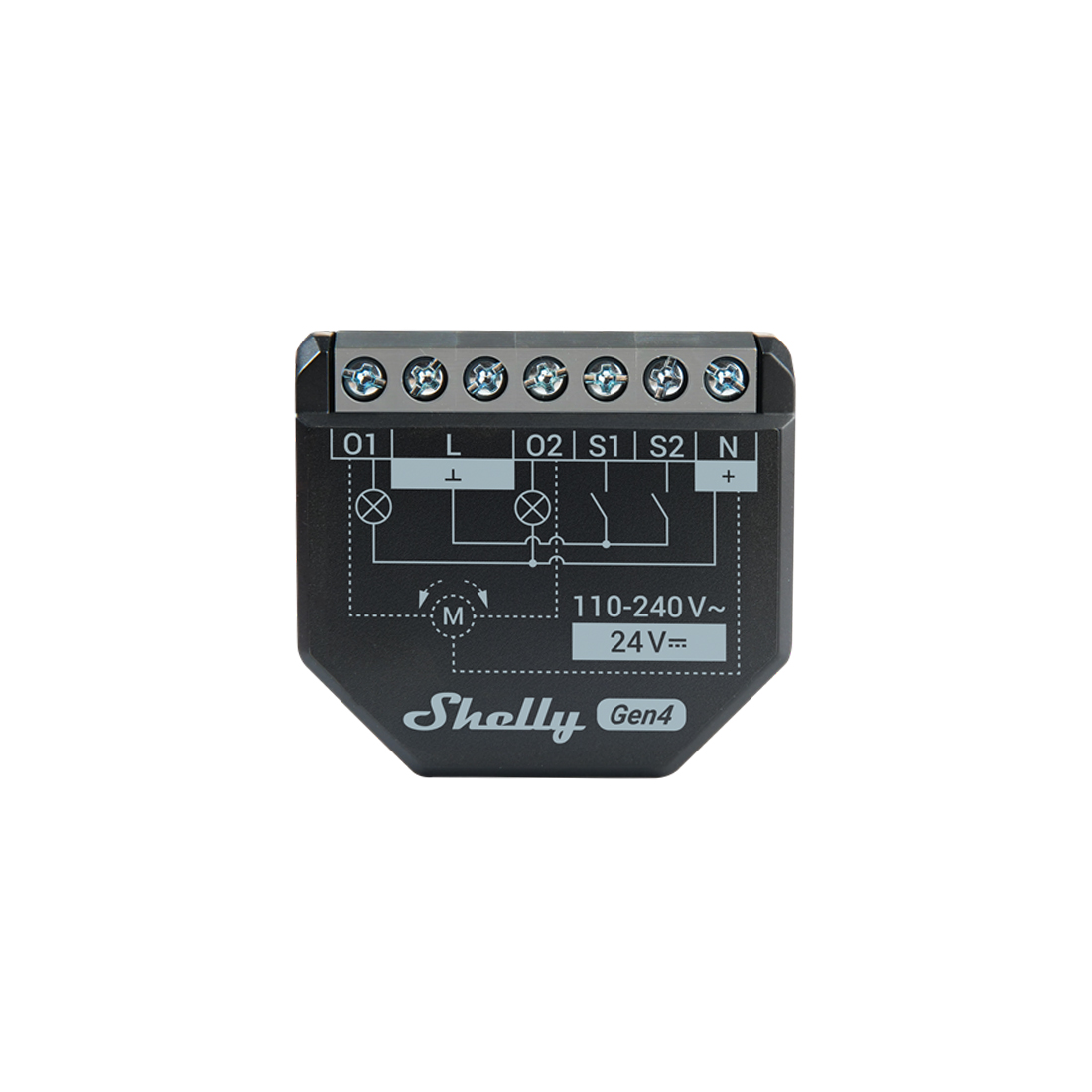

Shelly 2PM Gen4

A 2-channel smart switch for control of curtains, blinds, and shutters. Features power metering and multiprotocol support
MSRP: $44.49
Manufacturer: Shelly Products
SKU: 3800238070748

Features

  • Multiprotocol connectivity: Choose from Zigbee, Bluetooth, Wi-Fi and Matter
  • 2 channels on the same phase
  • Power metering on each channel
  • Cover (roller) control - Automate and adjust the position of roller shutters, blinds, curtains, awnings, bi-directional AC motors.
  • Slats angle control - use with your venetian blinds and control the tilt position (angle) of slats to adjust the amount of light in a room.
  • Apple Homekit support: Control connected devices using Apple Home app or Siri through Matter
  • Perfect to retrofit behind existing switches and sockets
  • Supports schedules, scenes and local actions
  • Supports scripting, HTTPS, MQTTS, Inbound and Outbound Web Sockets
  • Internal temperature sensor for overheating protection
  • Wi-Fi & Zigbee range extender & Bluetooth gateway
  • Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home Assistant, or your preferred automation platform.

Specs

Channels 2 Channels
CPU ESP-Shelly-C68F
Device temperature protection Yes
Bluetooth Yes
HTTP/HTTPS webhooks Yes
Roller shutter mode Yes
Overload protection Yes
Power measurement Yes
Intelligent On/Off Yes
Sunrise/Sunset Yes
Weekly Schedule Yes
UL Listed option Yes
Power supply DC 24 V
Maximum load 16A
Power supply AC 110-240V ±10%, 50/60Hz
Operational temperature -20ºC to +40ºC
Radio frequency 2400 – 2500 MHz
Radio signal power 1mW
Wireless/WiFi Protocol 802.11 b/g/n
Range up to 50 m outdoors and up to 30 m indoors (depending on the building materials)
Zigbee protocol 802.15.4
Zigbee RF bands 2400 do 2483.5 Mhz
Zigbee Max. RF power < 20 dBm
Zigbee range Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors



Dimensions

Size 37x42x16 mm
Weight 30 g
